Test 113: Repair Bus System For Short To Ground

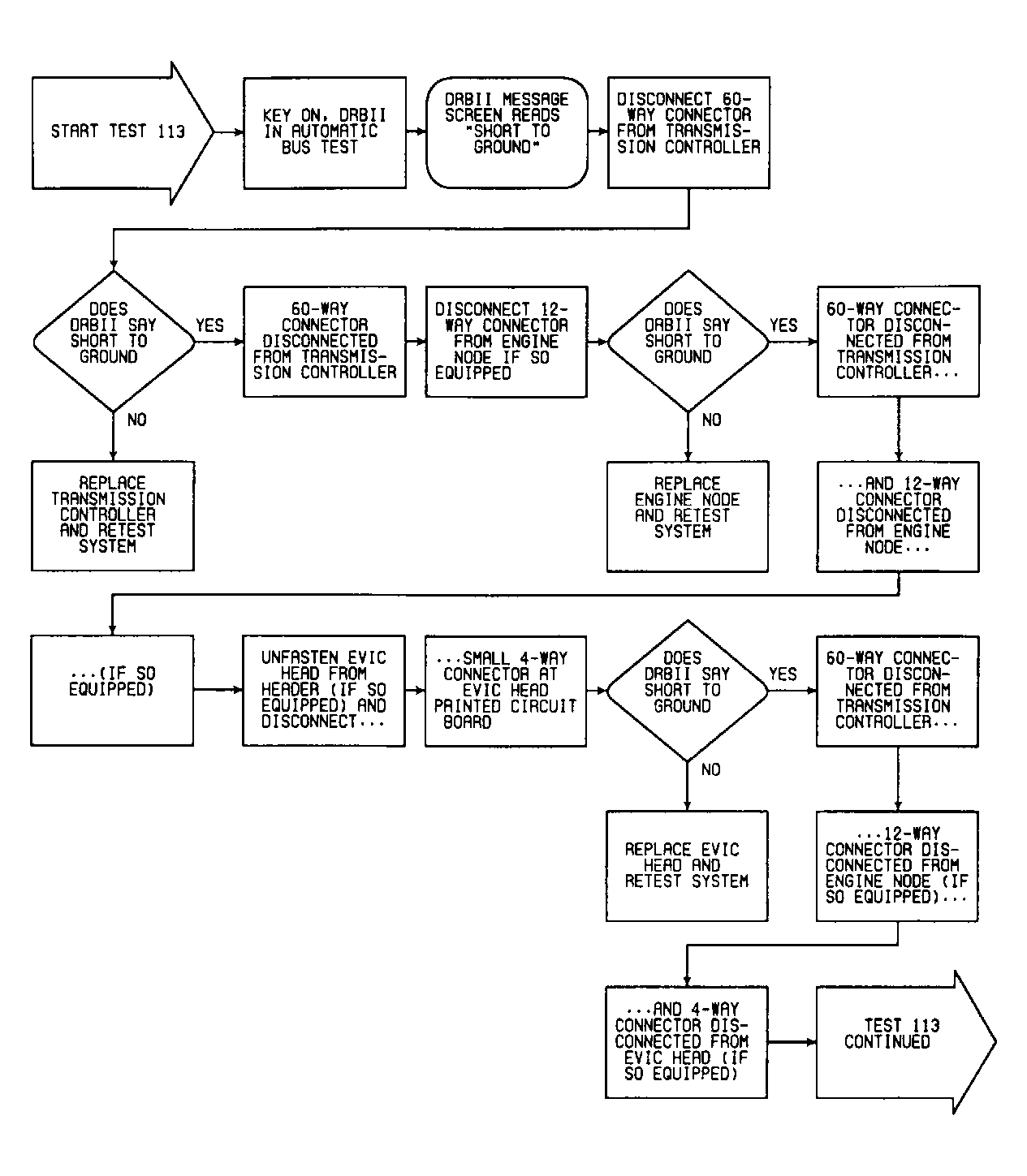

Fig 1: Test 113: Flow Chart (1 of 3)

G90H06185

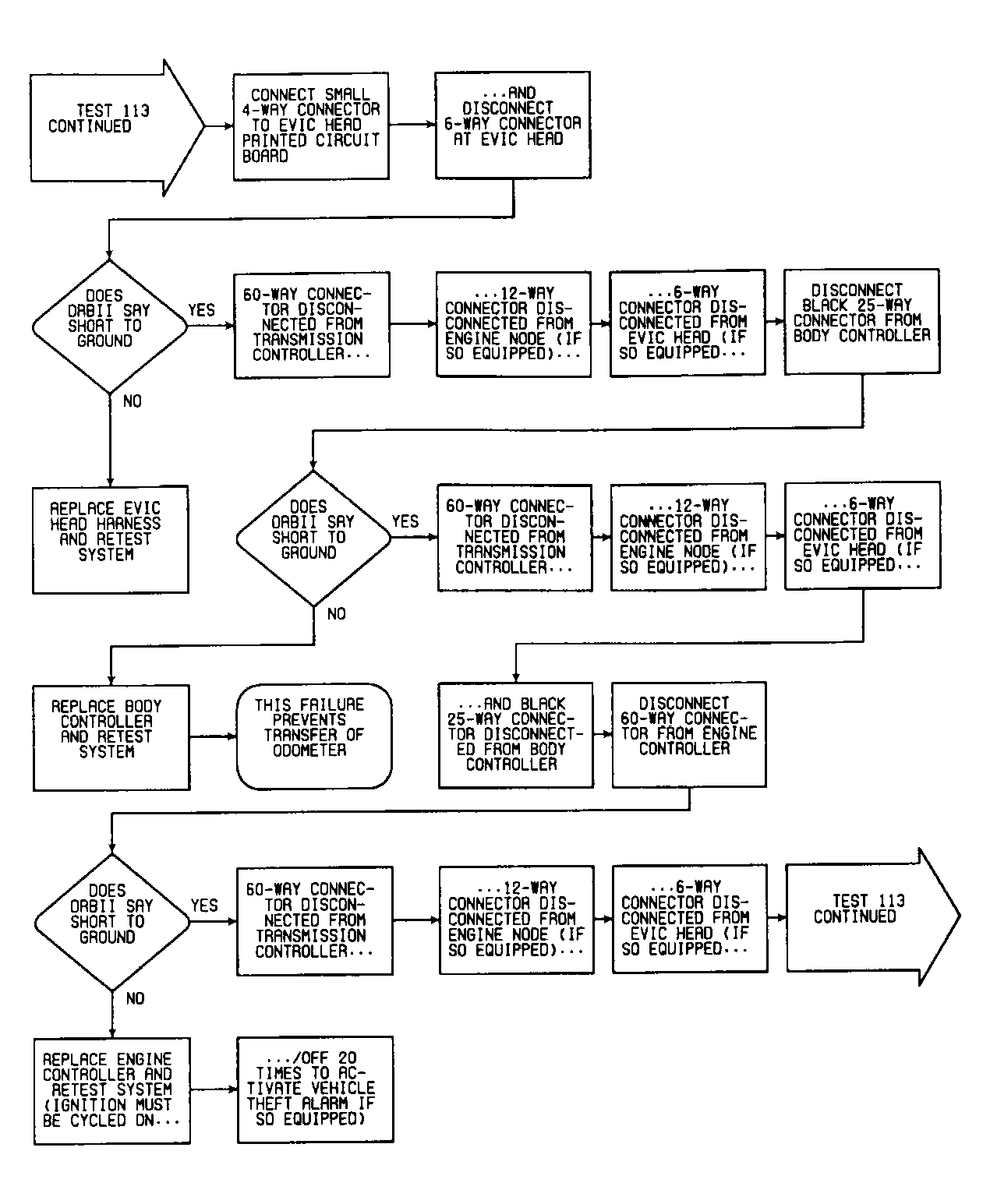

Fig 2: Test 113: Flow Chart (2 of 3)

G90J06186

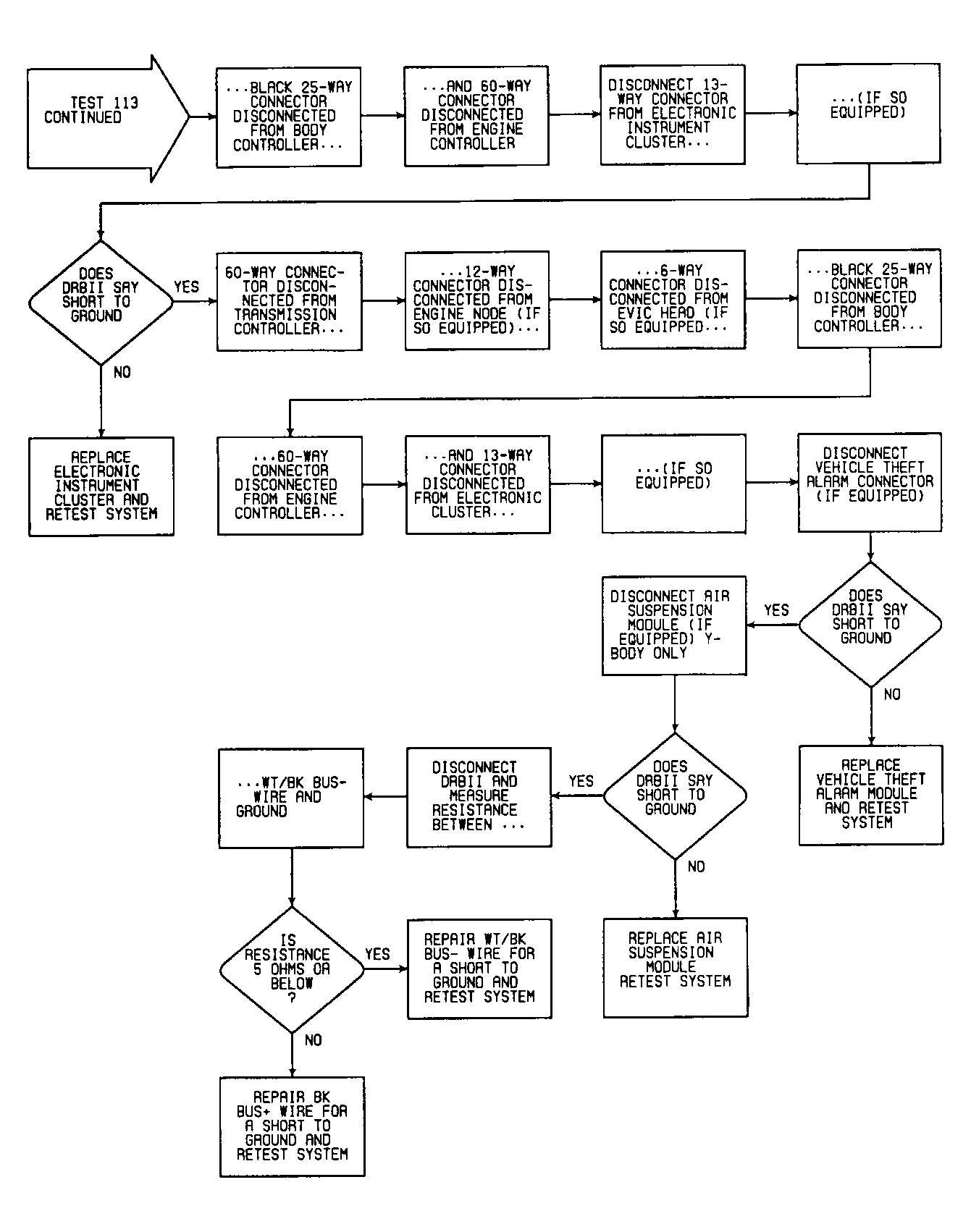

Fig 3: Test 113: Flow Chart (3 of 3)

G90B06187
