Test 121: Check For No Response From Eng Controller
Test 121: Check For No Response From Eng Controller
Fig 1: Test 121: Circuit Diagram

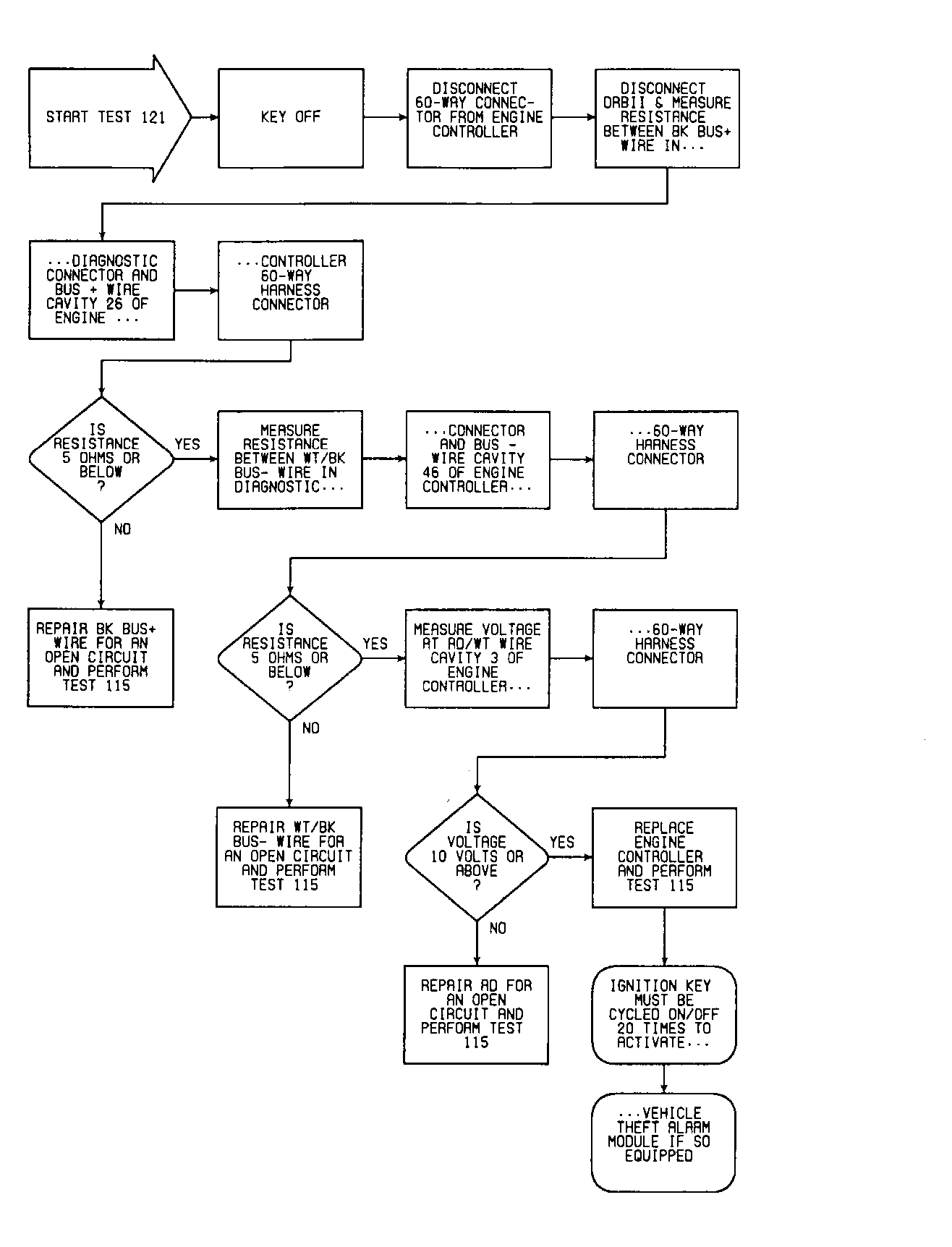

Fig 2: Test 121: Flow Chart
