Engine Controls - Tests W/O Codes - BCC
›
Test 122: Repair Bus SYS For Not Receiving Bus Messages
Test 122: Repair Bus SYS For Not Receiving Bus Messages

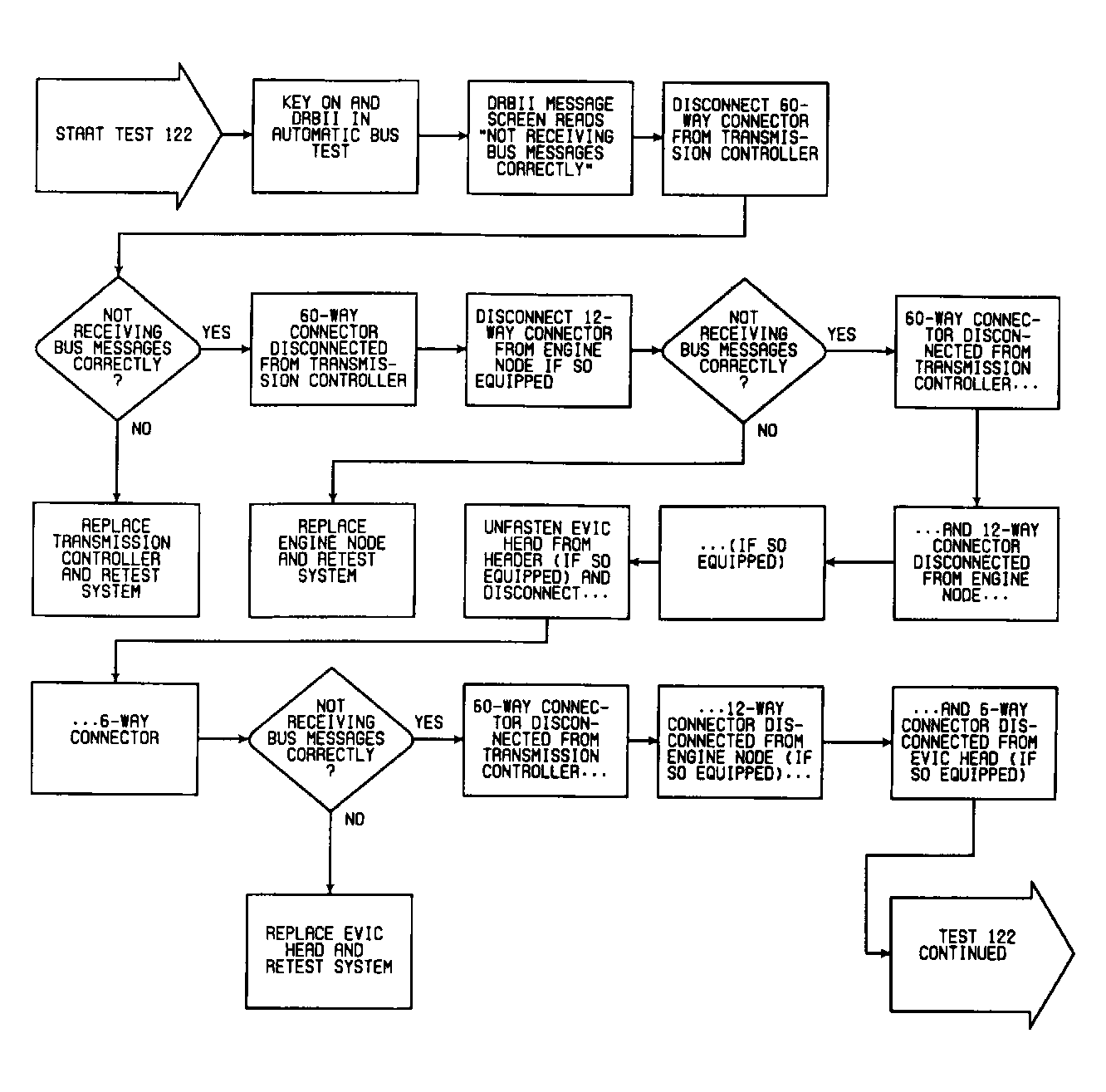

Fig 1: Test 122: Flow Chart (1 of 2)

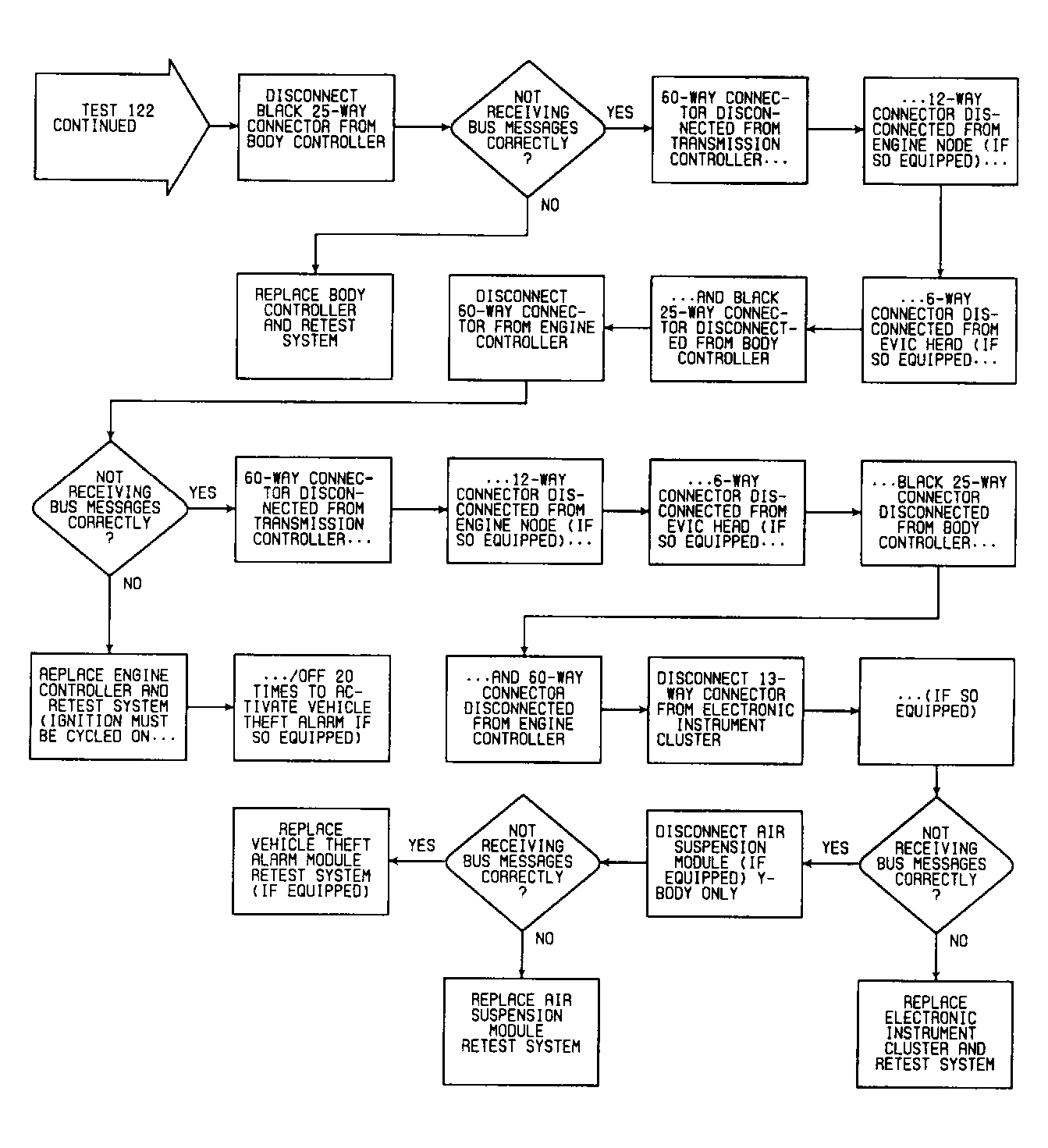

Fig 2: Test 122: Flow Chart (2 of 2)
