Test 123: Check Eng Controller For Open Bus Message
Test 123: Check Eng Controller For Open Bus Message

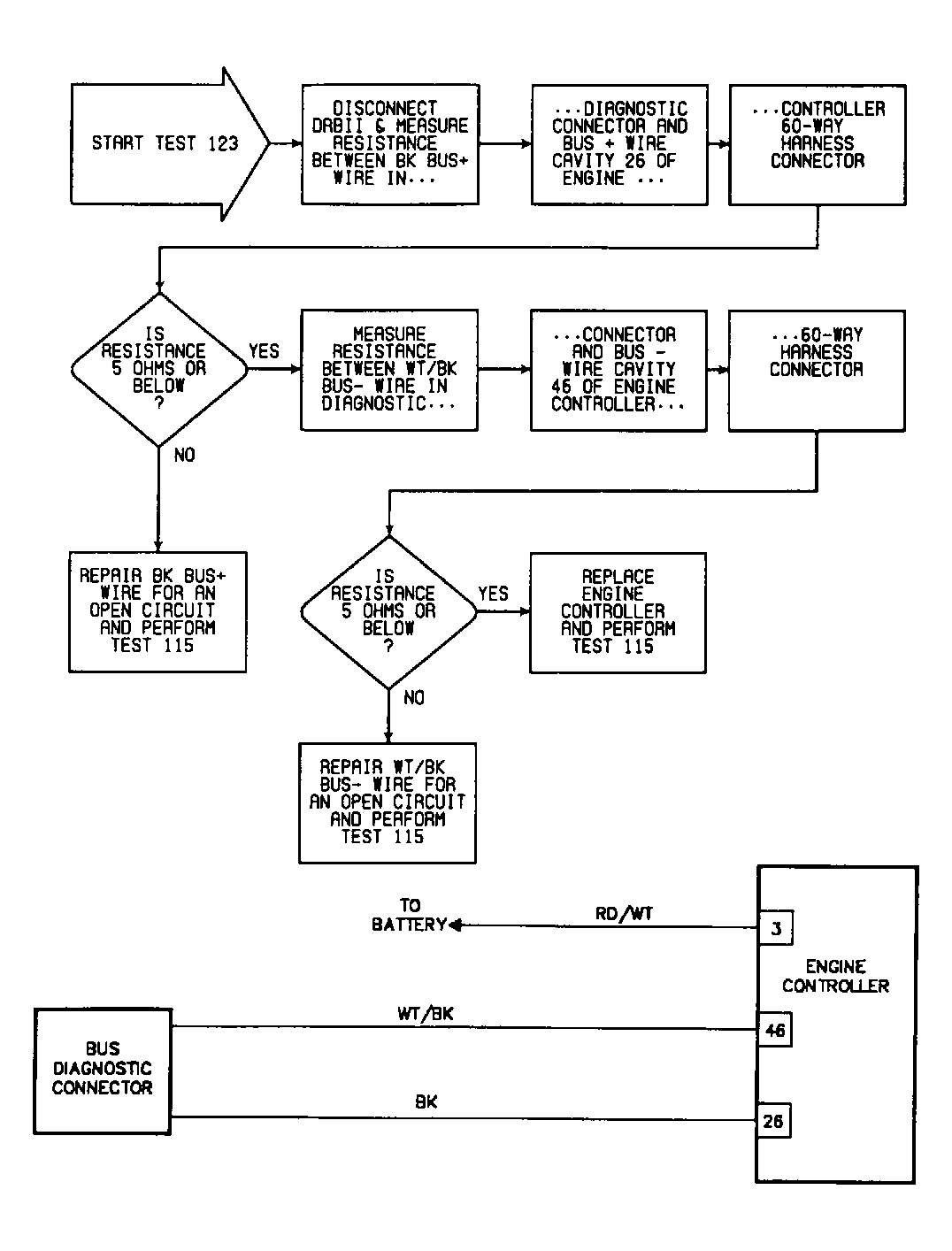

Fig 1: Test 123: Circuit Diagram & Flow Chart
