Test 53: Gauges Light Not Operating Correctly
Test 53: Gauges Light Not Operating Correctly

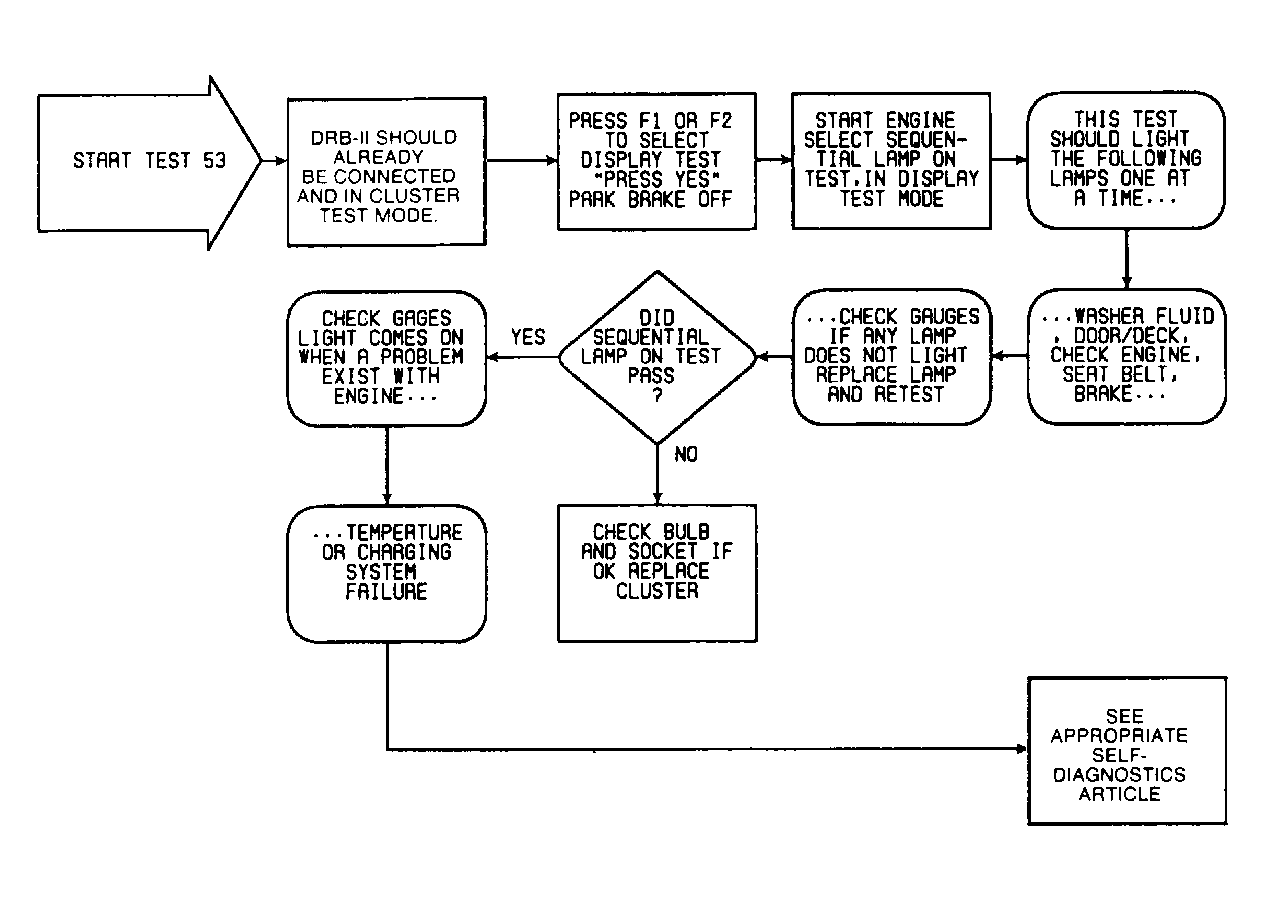

Fig 1: Test 53: Flow Chart
