Test 67: Vehicle Theft Alarm Module Power Door Lock
Test 67: Vehicle Theft Alarm Module Power Door Lock

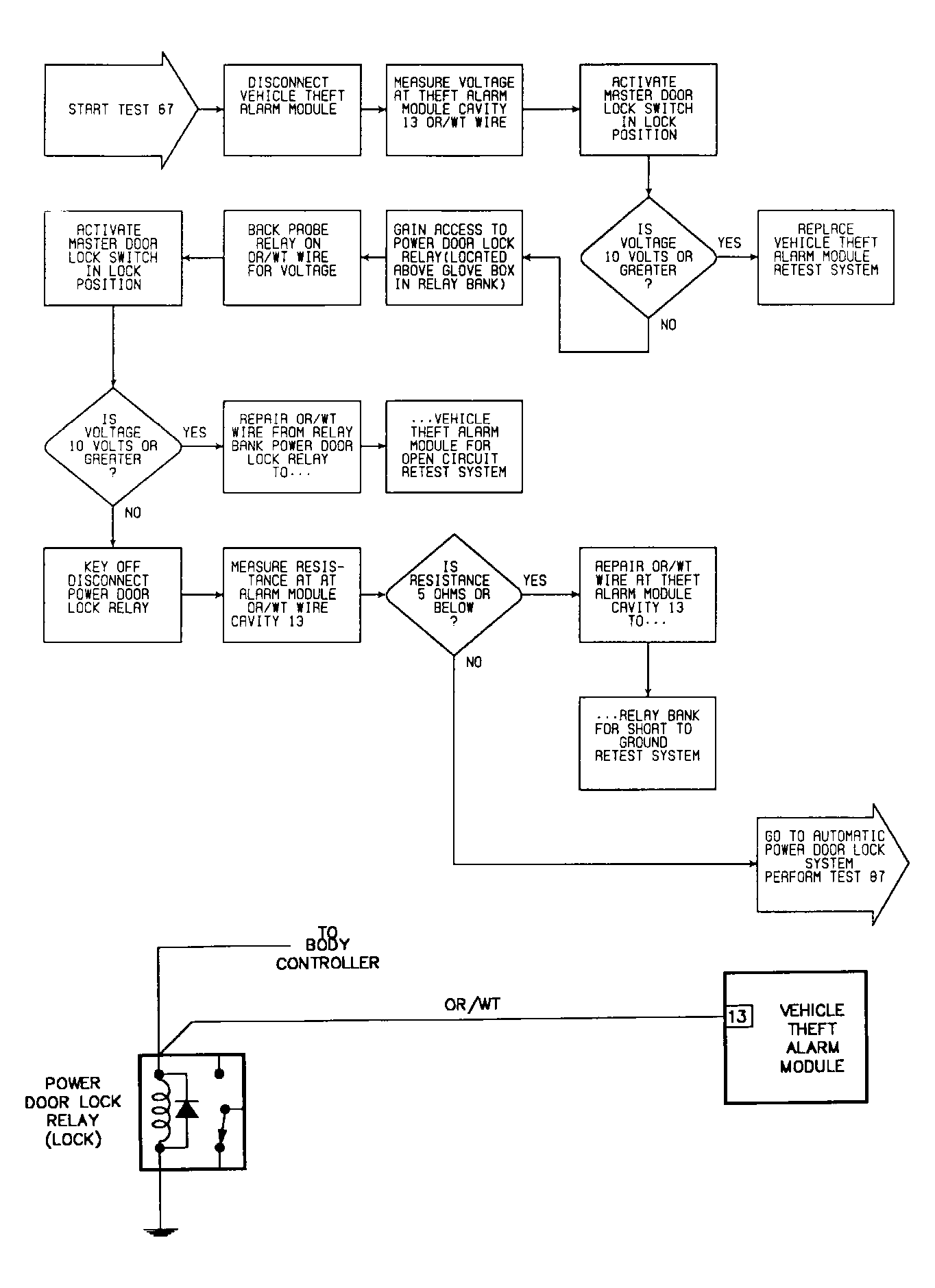

Fig 1: Test 67: Circuit Diagram & Flow Chart
