Test 68: Vehicle Theft Alarm Module Power Door Unlock
Test 68: Vehicle Theft Alarm Module Power Door Unlock

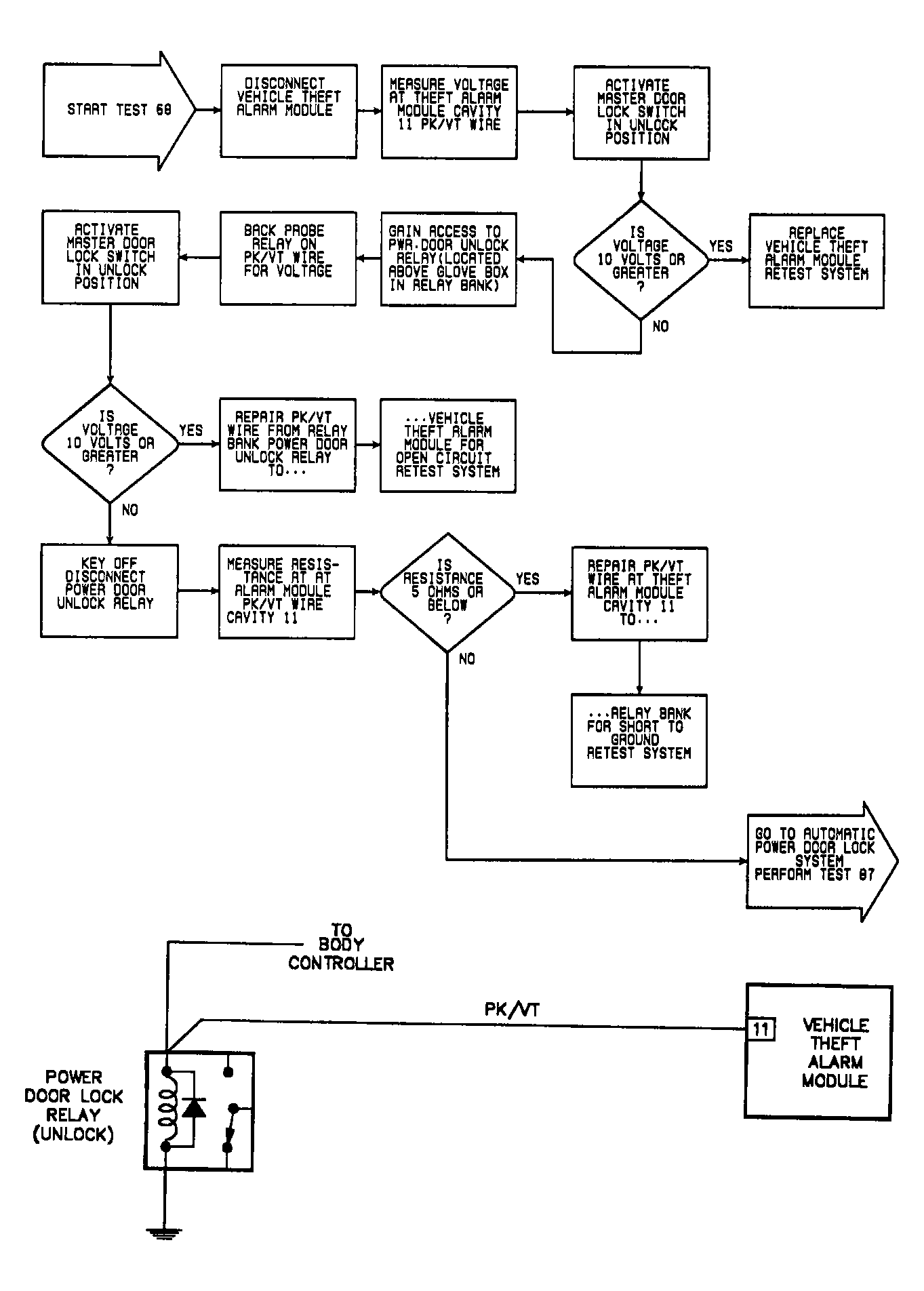

Fig 1: Test 68: Circuit Diagram & Flow Chart
