Test 70: Vehicle Theft Alarm Module Passenger's Key Cylinder Switch Test
Test 70: Vehicle Theft Alarm Module Passenger's Key Cylinder Switch Test

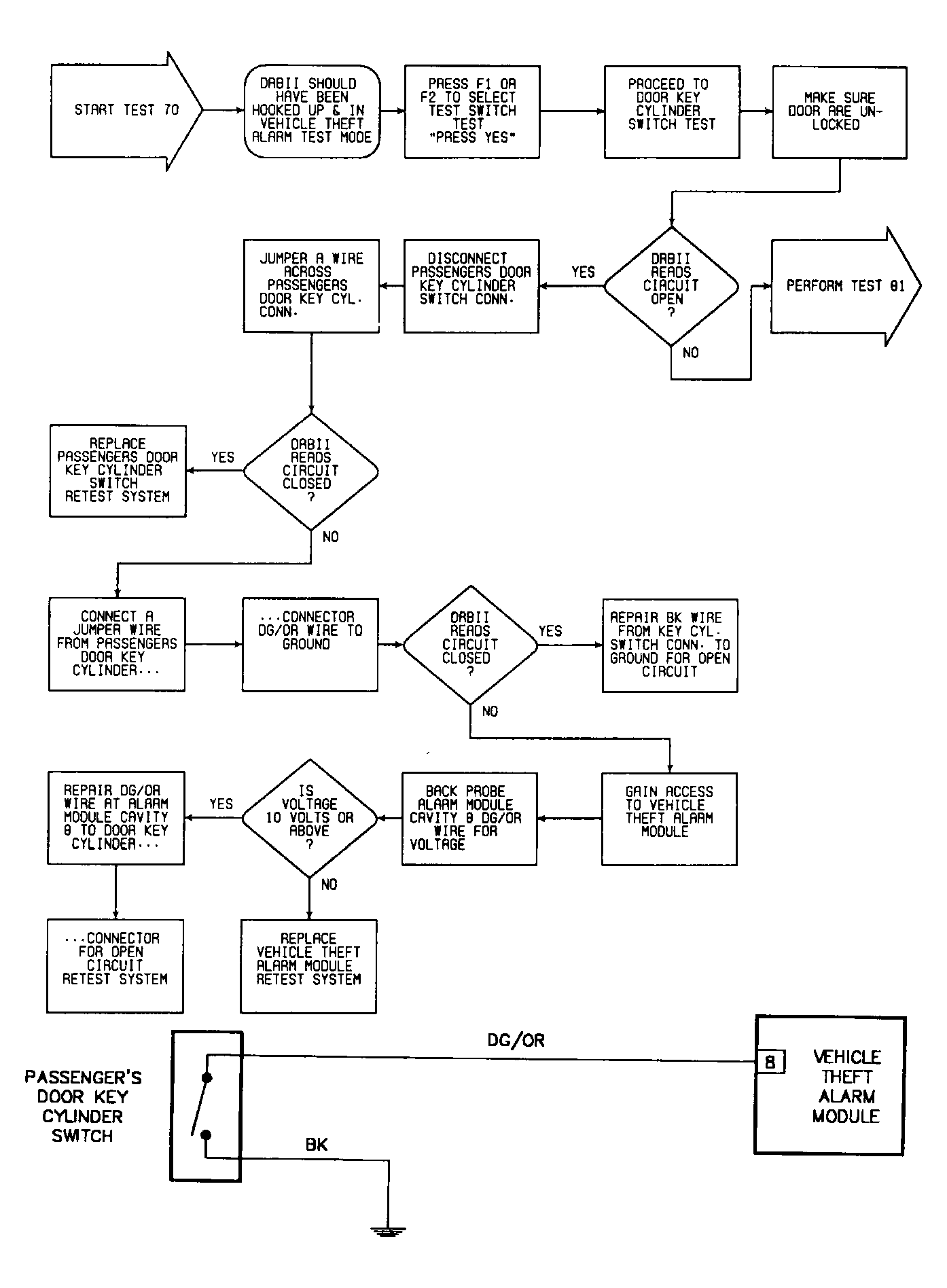

Fig 1: Test 70: Circuit Diagram & Flow Chart
