Test 71: Vehicle Theft Alarm Module Ignition Sense Test
Test 71: Vehicle Theft Alarm Module Ignition Sense Test

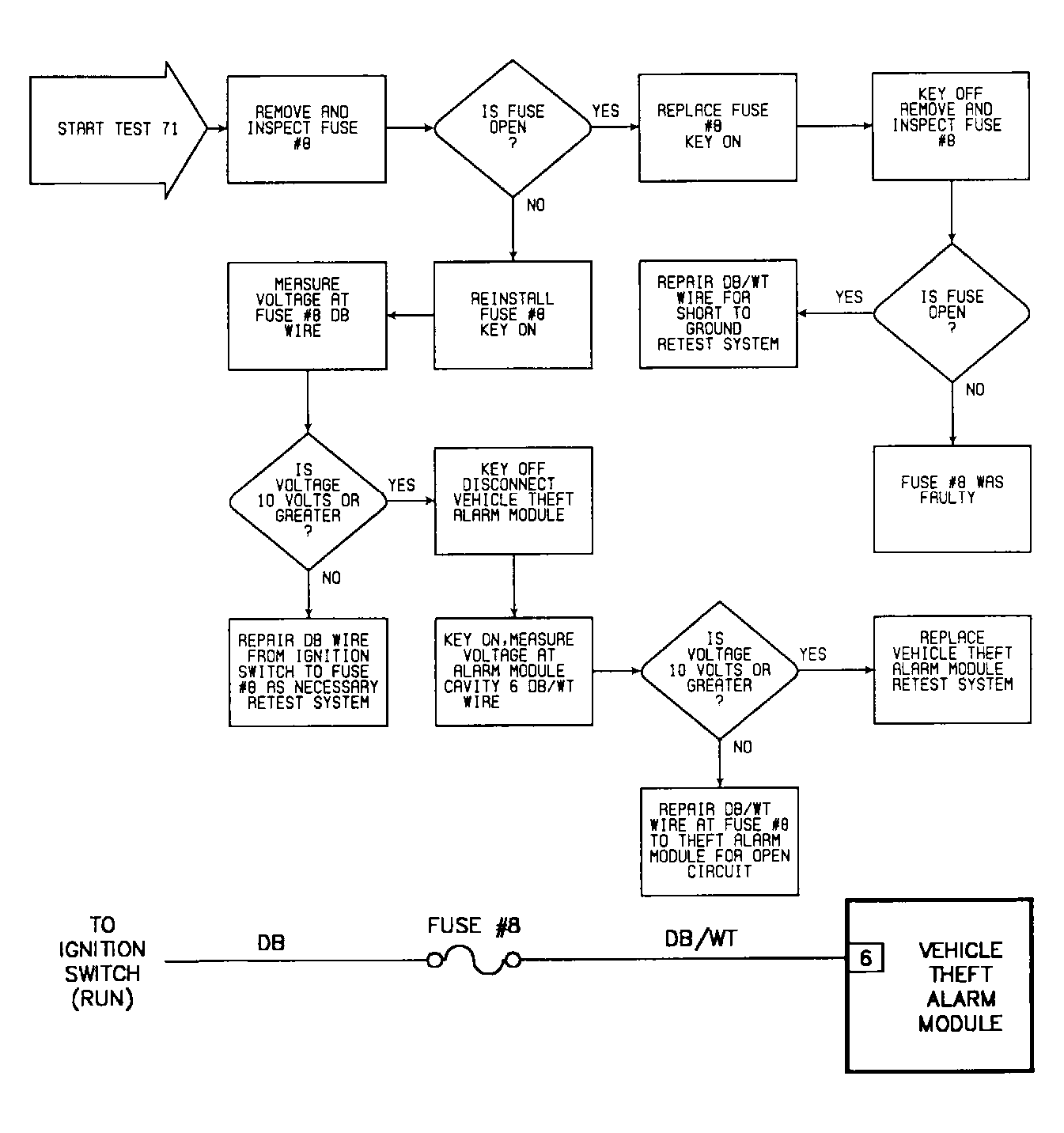

Fig 1: Test 71: Circuit Diagram & Flow Chart
