Test 81: Theft Alarm Module Door Key Cylinder Switch Shorted To Ground Test
Test 81: Theft Alarm Module Door Key Cylinder Switch Shorted To Ground Test

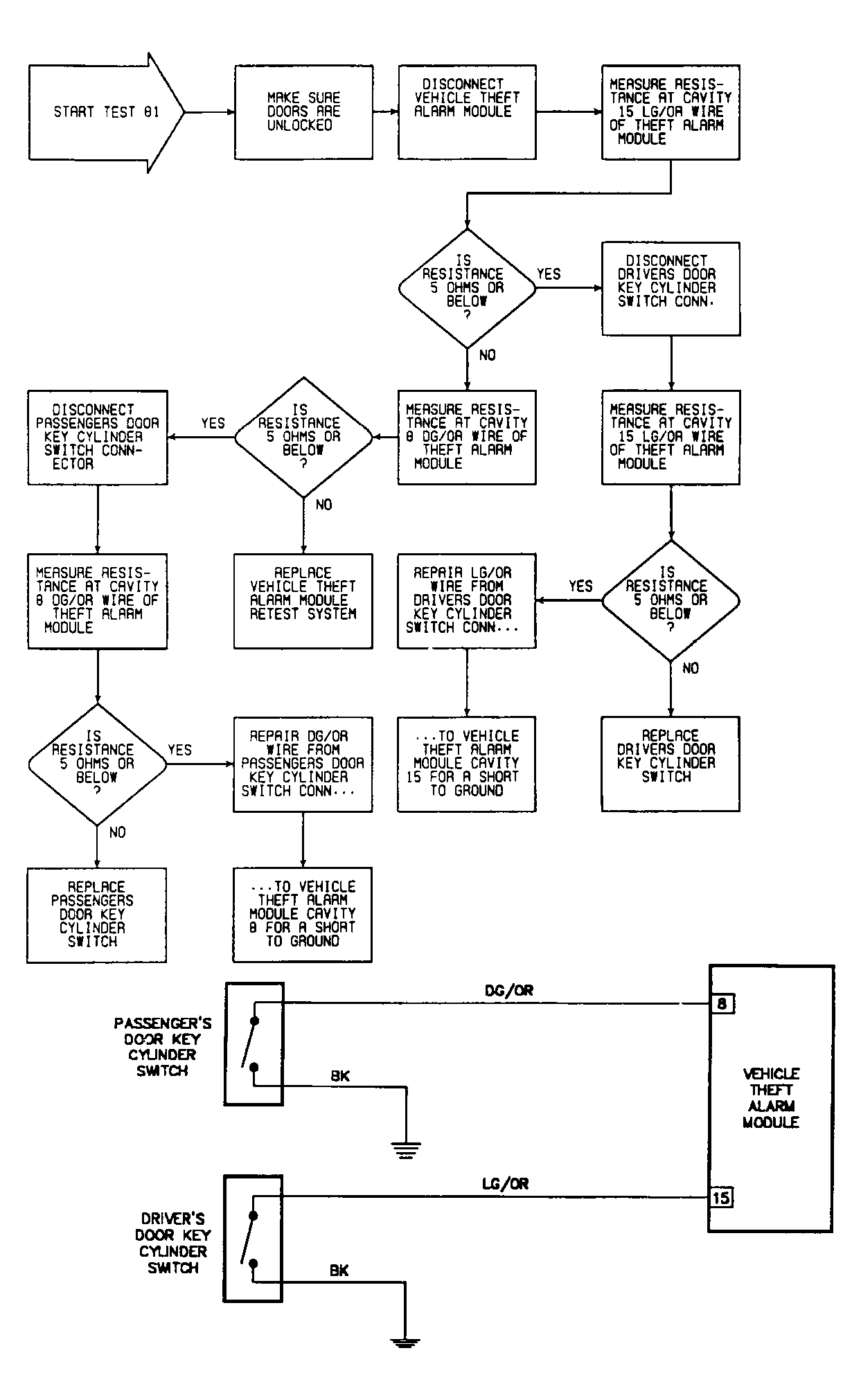

Fig 1: Test 81: Circuit Diagram & Flow Chart
