Component Identification

Fig 1: A-604 Components (1 of 4)
G95E29540Courtesy of CHRYSLER MOTOR CORP.

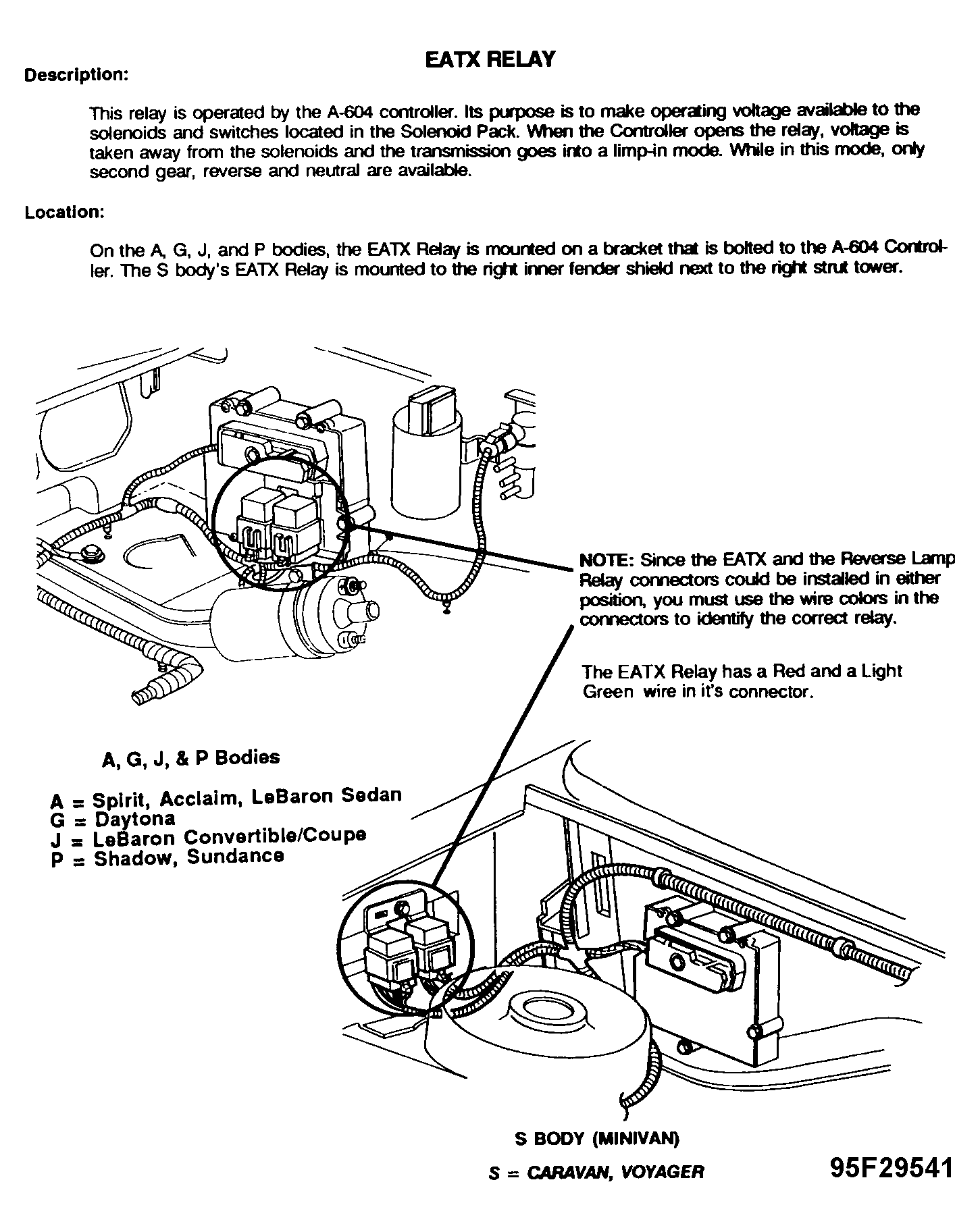

Fig 2: A-604 Components (2 of 4)
G95F29541Courtesy of CHRYSLER MOTOR CORP.

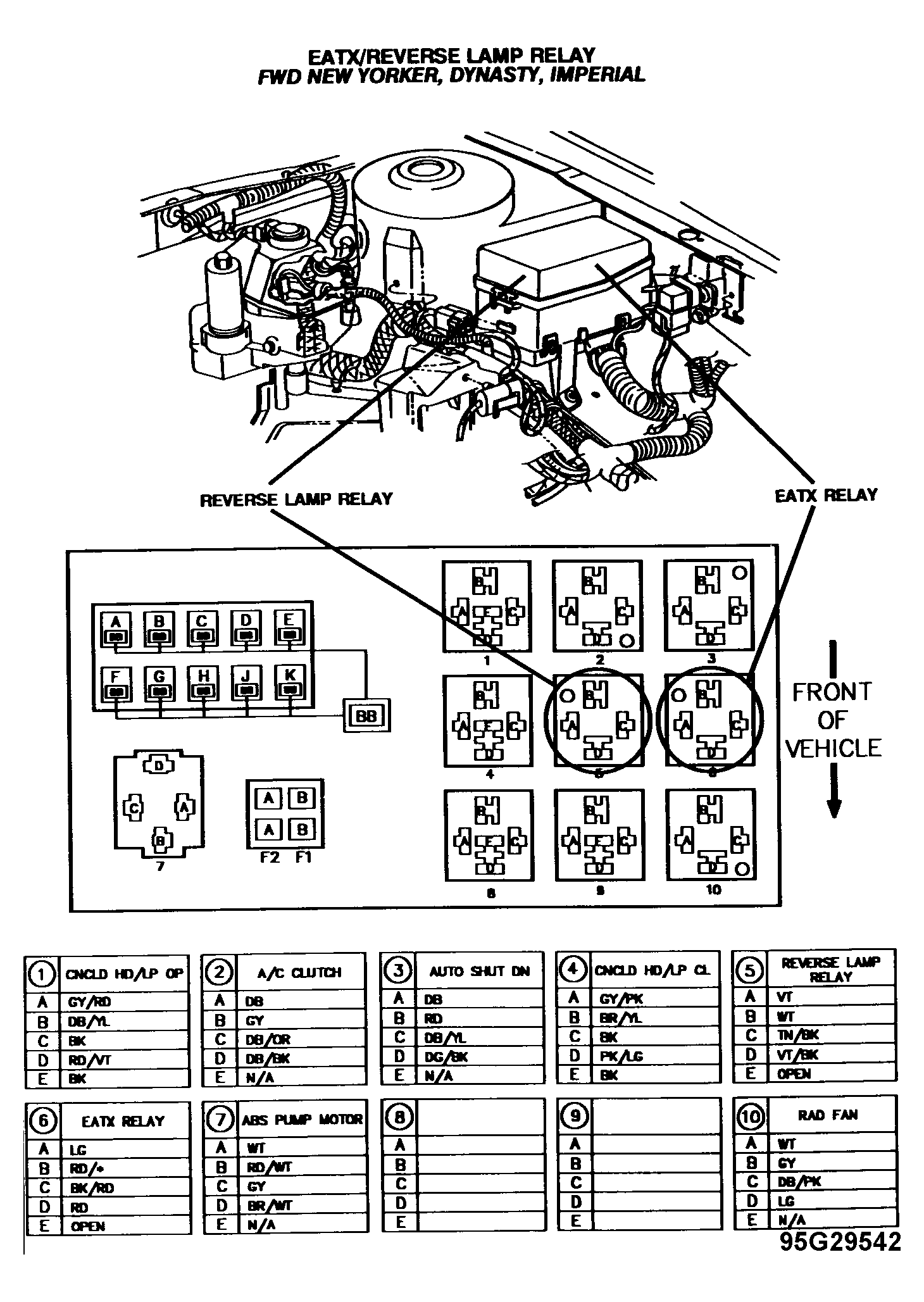

Fig 3: A-604 Components (3 of 4)
G95G29542Courtesy of CHRYSLER MOTOR CORP.

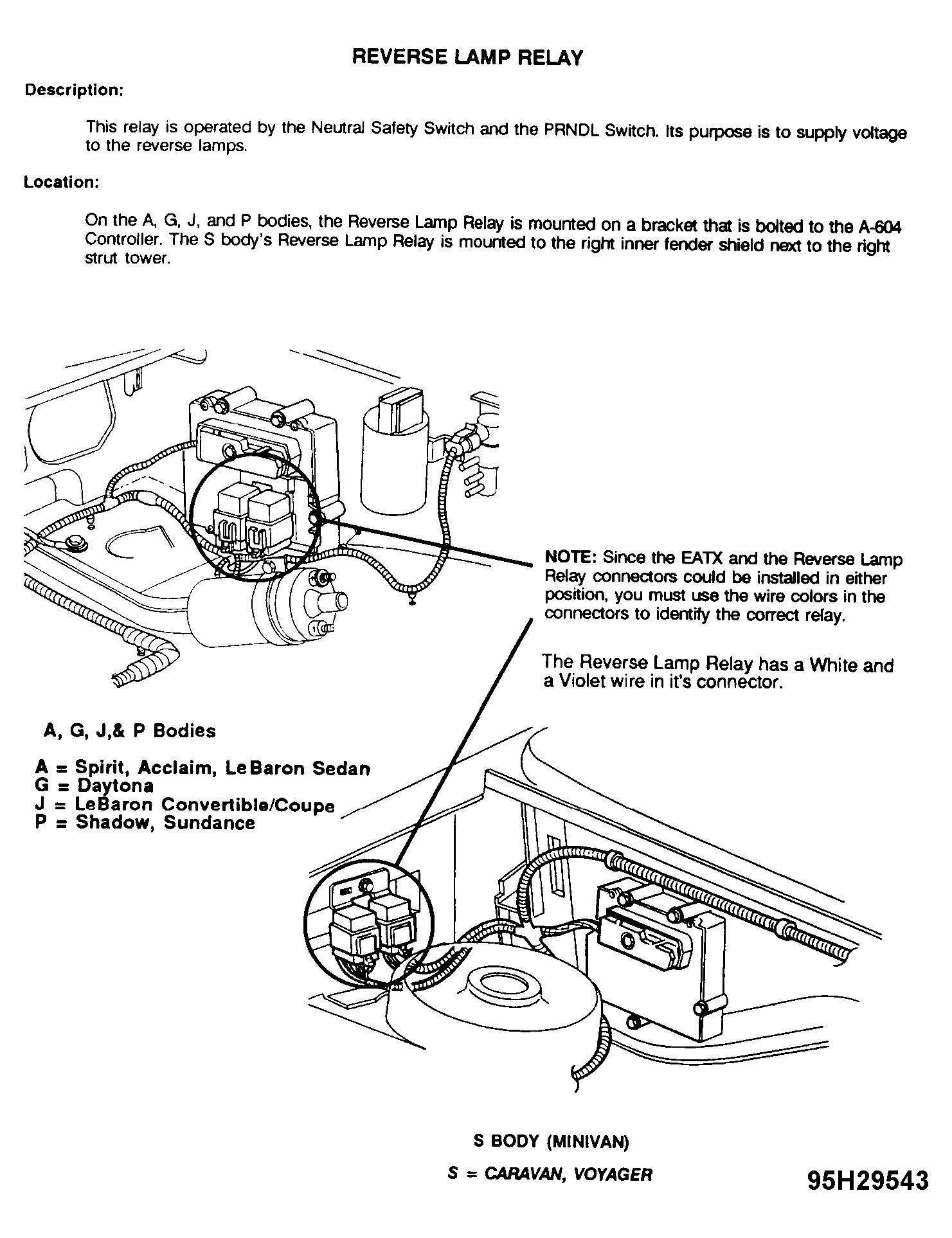

Fig 4: A-604 Components (4 of 4)
G95H29543Courtesy of CHRYSLER MOTOR CORP.
