Transaxle Controller

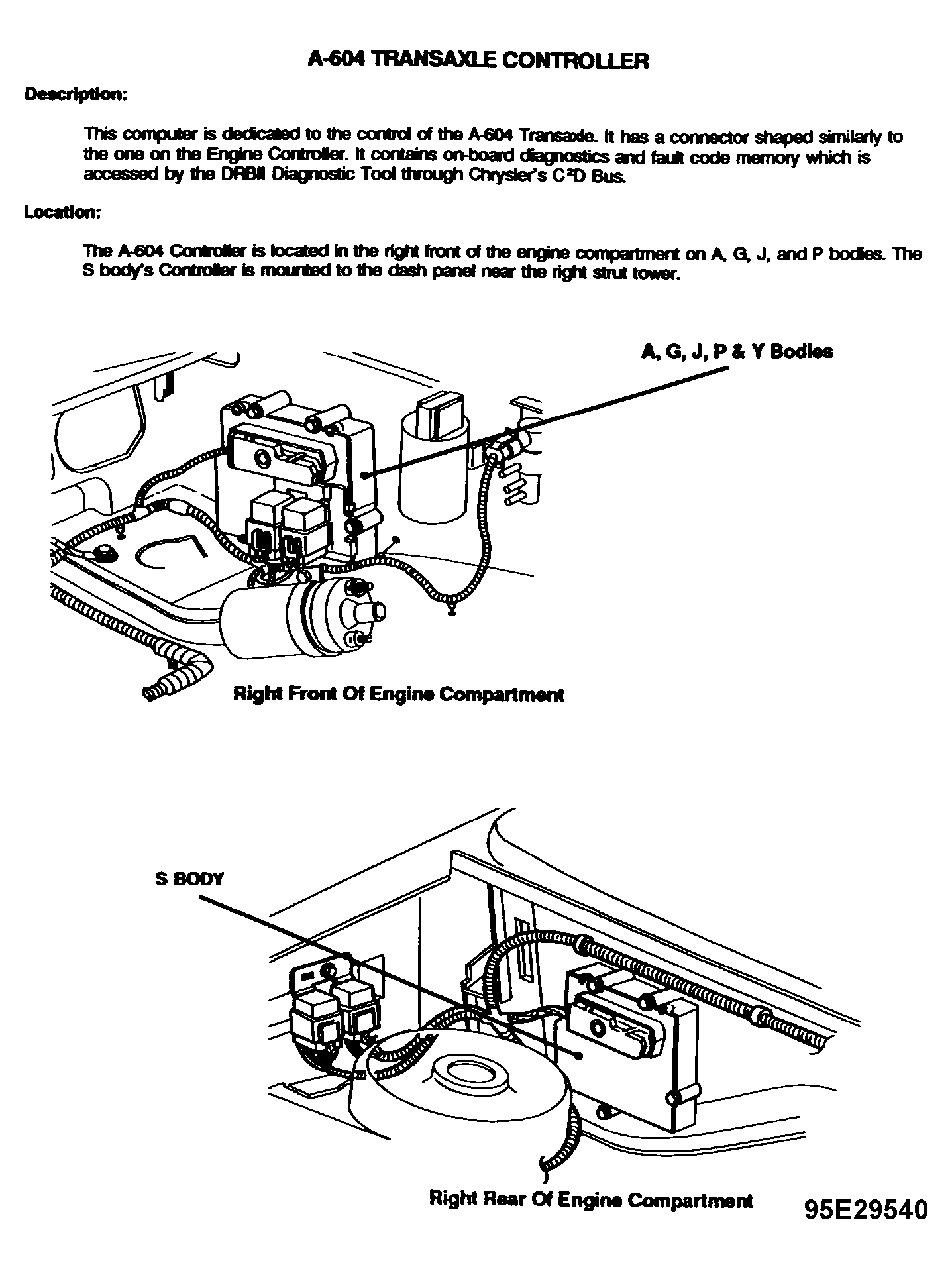

The controller is dedicated to the control of the transaxle. It has a connector shaped similarly to the one on the engine controller. It contains on-board diagnostics and fault code memory which is accessed by the DRB-II Diagnostic Tool through Chrysler's COD Bus. Controller is located on the right front fender side shield in the engine compartment on A, G. J and P bodies. The S body's controller is mounted to the dish panel near the right strut tower. See Figure .
