Hard Fault Code Directory

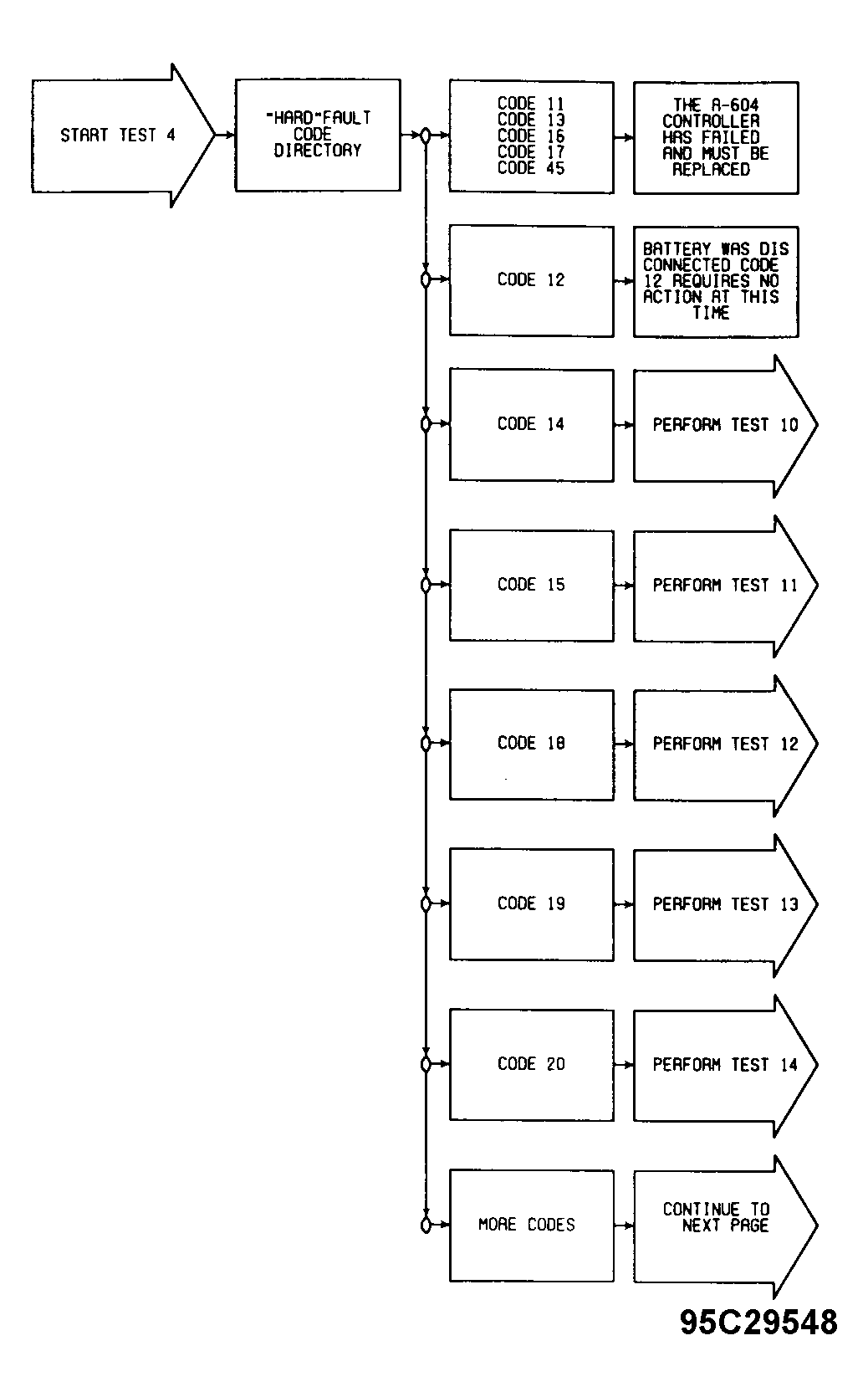

Fig 1: "Hard Fault" Code Directory (1 of 4)

G95C29548

Courtesy of CHRYSLER MOTOR CORP.

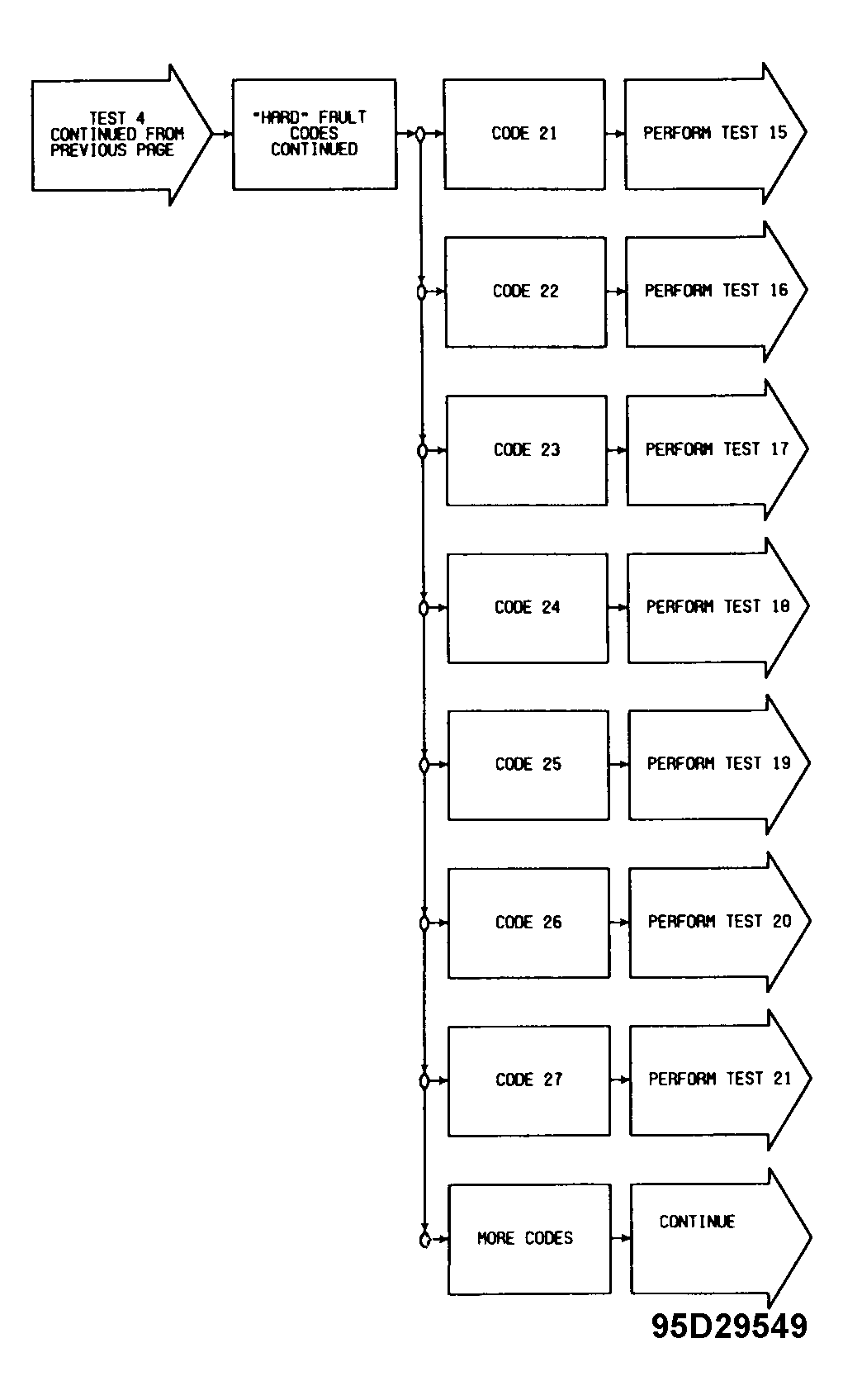

Fig 2: "Hard Fault" Code Directory (2 of 4)

G95D29549

Courtesy of CHRYSLER MOTOR CORP.

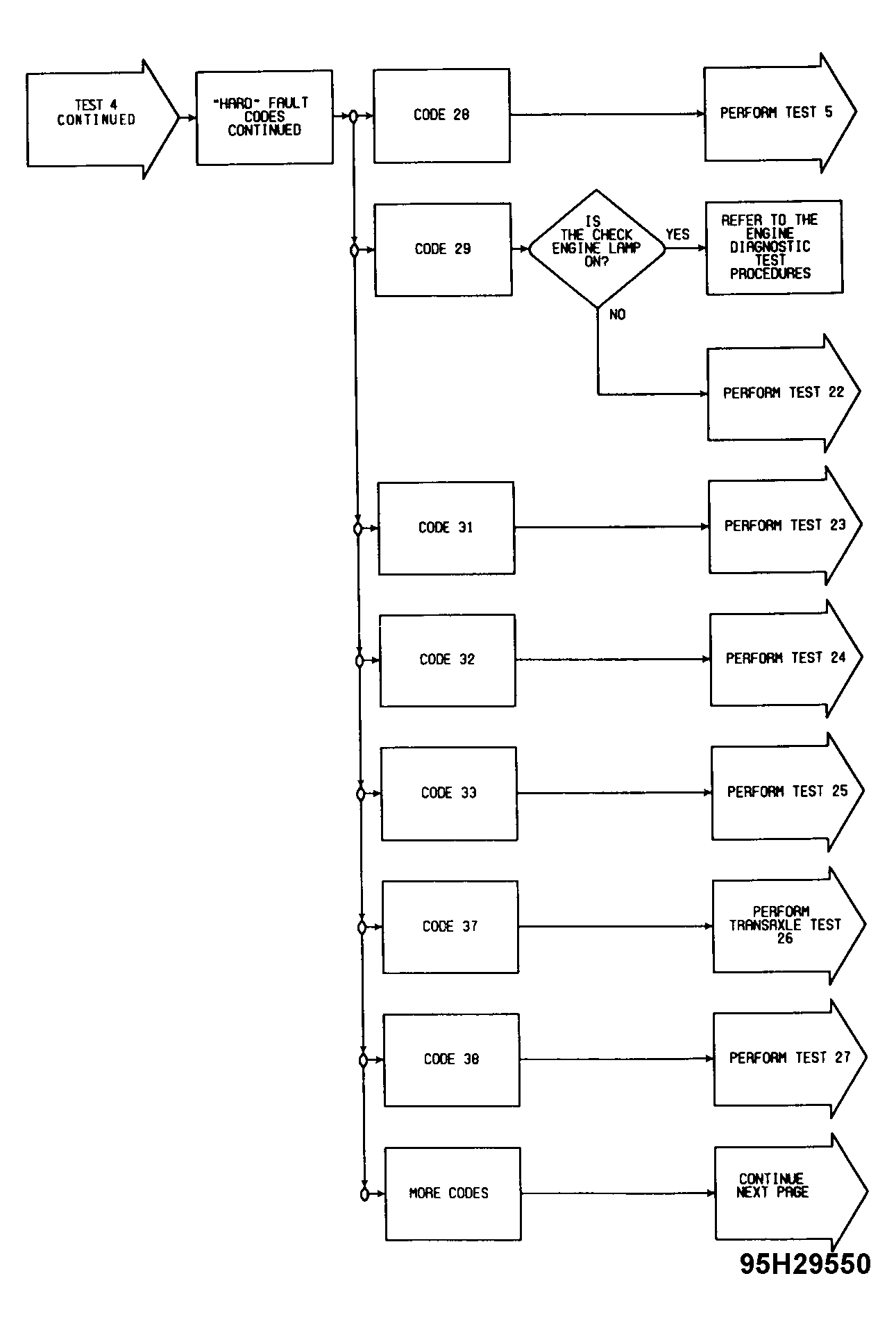

Fig 3: "Hard Fault" Code Directory (3 of 4)

G95H29550

Courtesy of CHRYSLER MOTOR CORP.

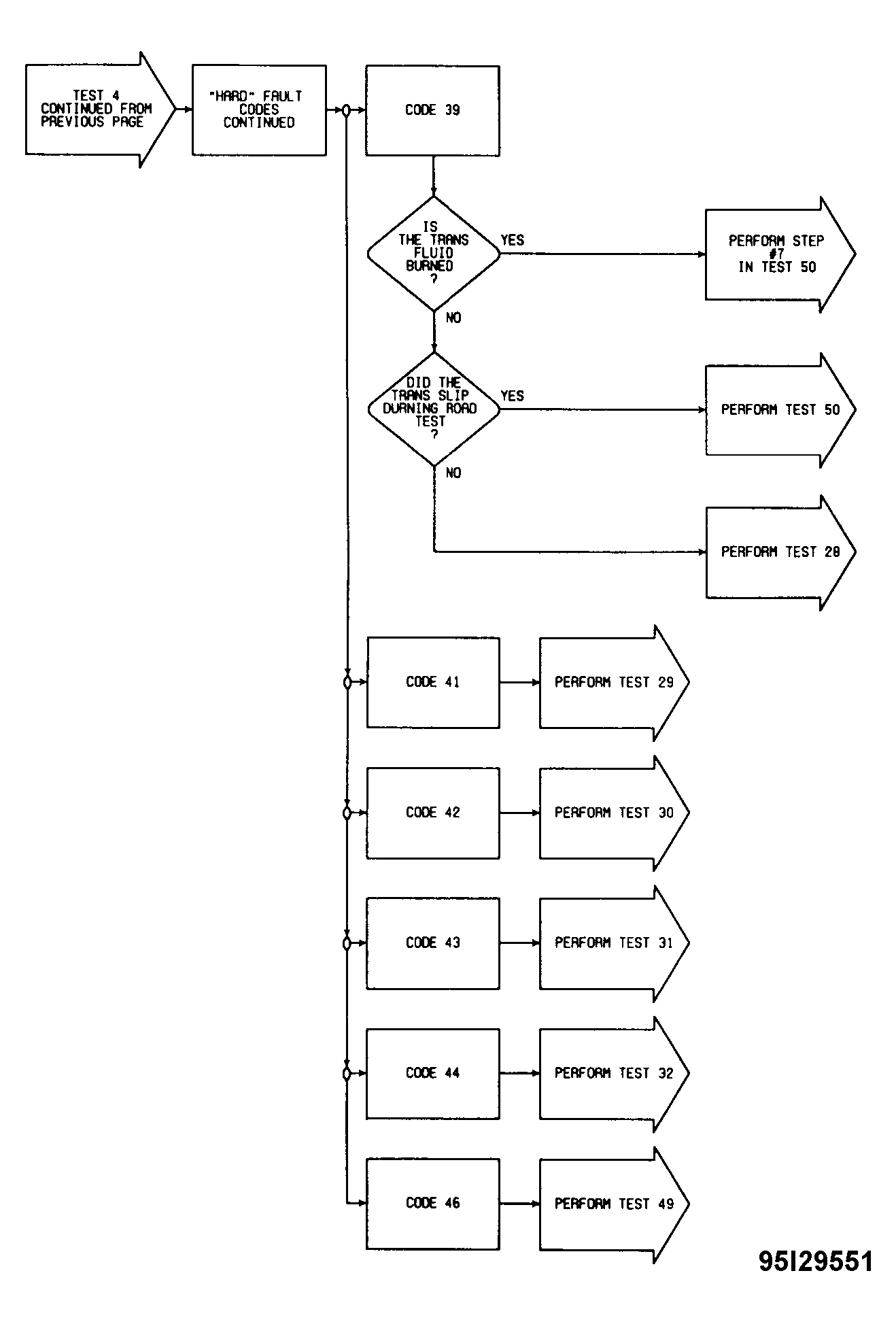

Fig 4: "Hard Fault" Code Directory (4 of 4)

G95I29551

Courtesy of CHRYSLER MOTOR CORP.
