Diagnosis - A-604
›
Trouble Code Charts
›
Repair Verification Test Procedure
Repair Verification Test Procedure

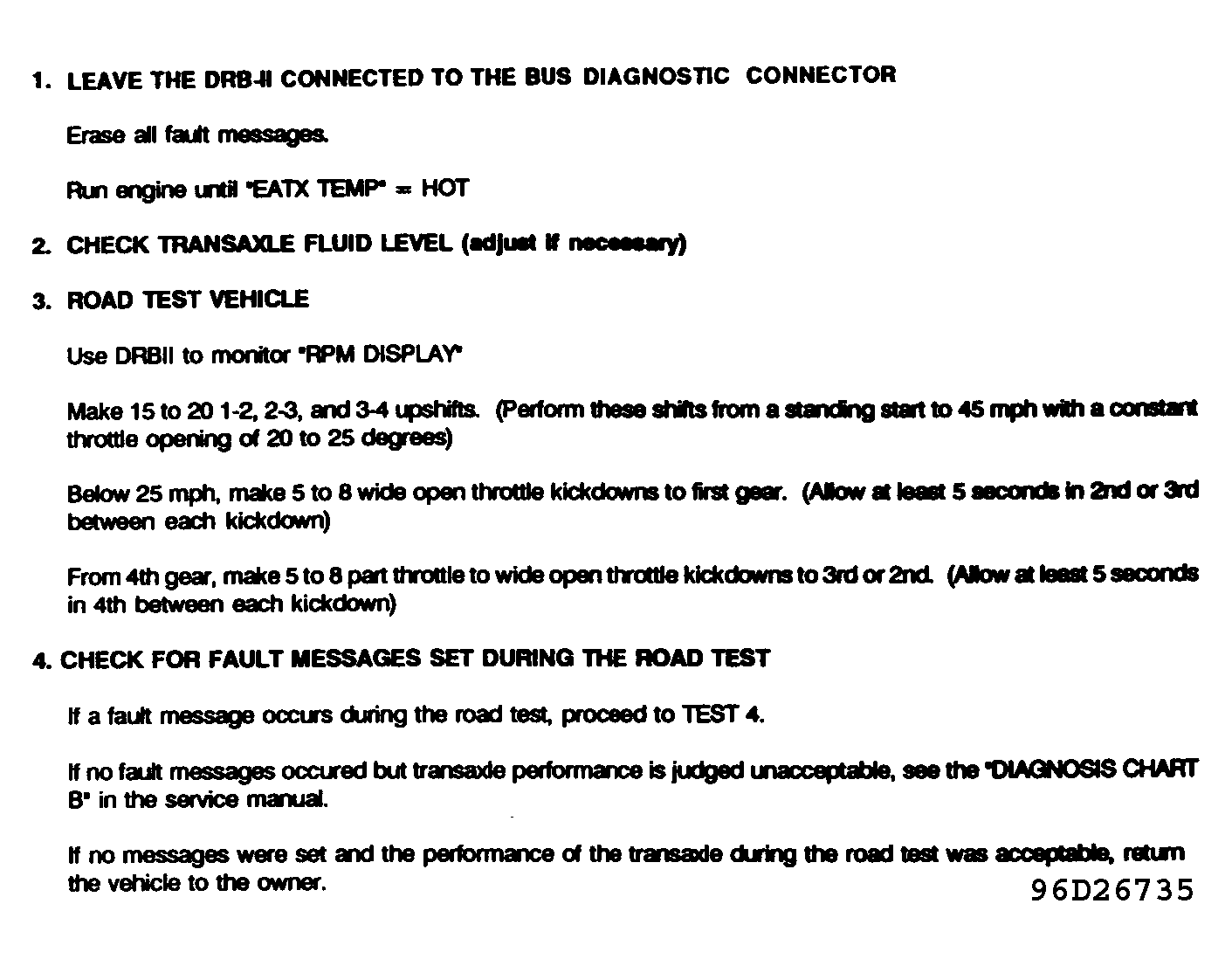

Fig 1: Repair Verification Test Procedure
Courtesy of CHRYSLER MOTOR CORP.
Courtesy of CHRYSLER MOTOR CORP.
