Test 11

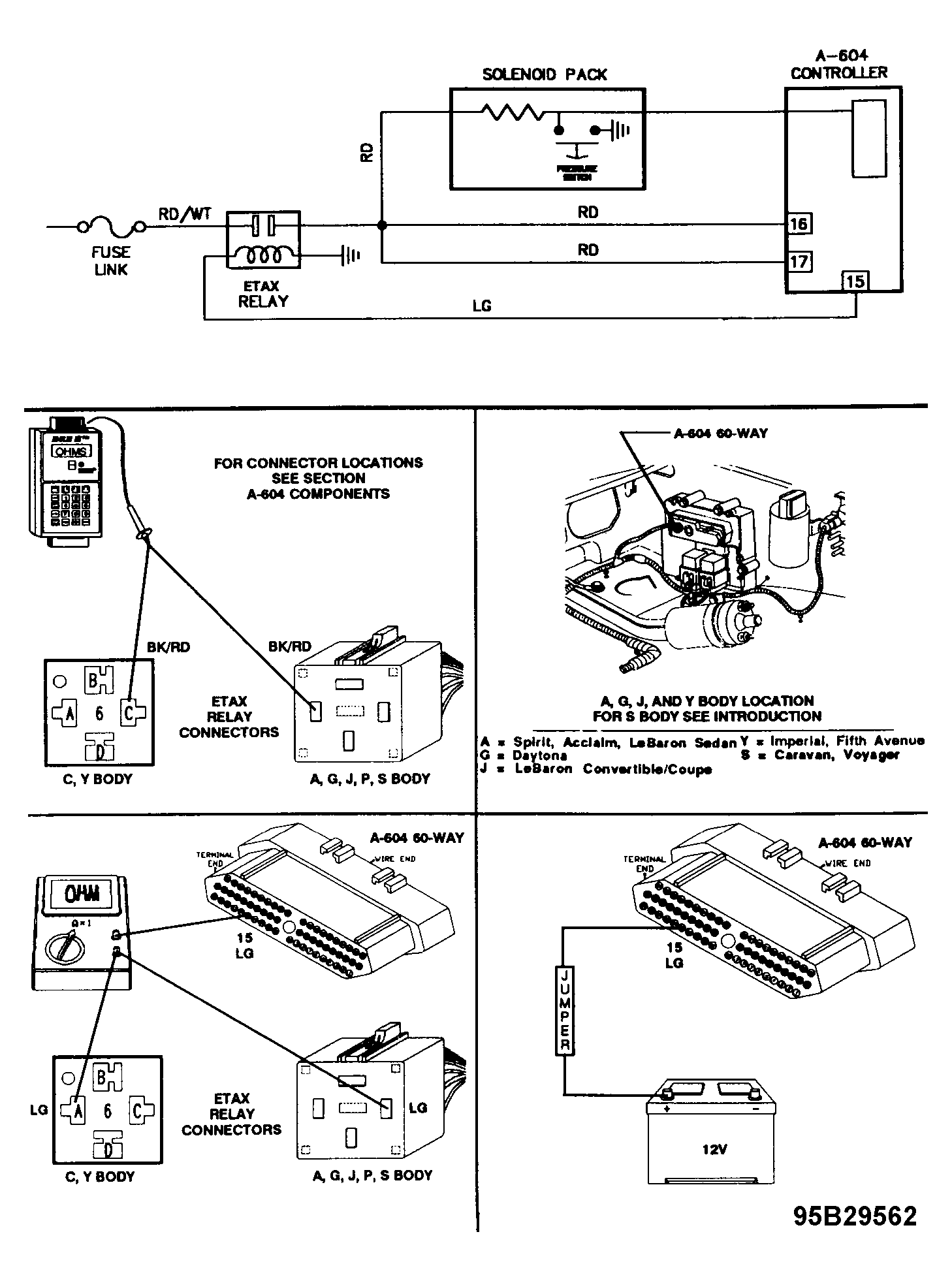

Fig 1: Test-11 Test For Code 15 - Relay Output Always Off (1 of 4)

Courtesy of CHRYSLER MOTOR CORP.

Fig 2: Test-11 Test For Code 15 - Relay Output Always Off (2 of 4)

Courtesy of CHRYSLER MOTOR CORP.

Fig 3: Test-11 Test For Code 15 - Relay Output Always Off (3 of 4)

Courtesy of CHRYSLER MOTOR CORP.

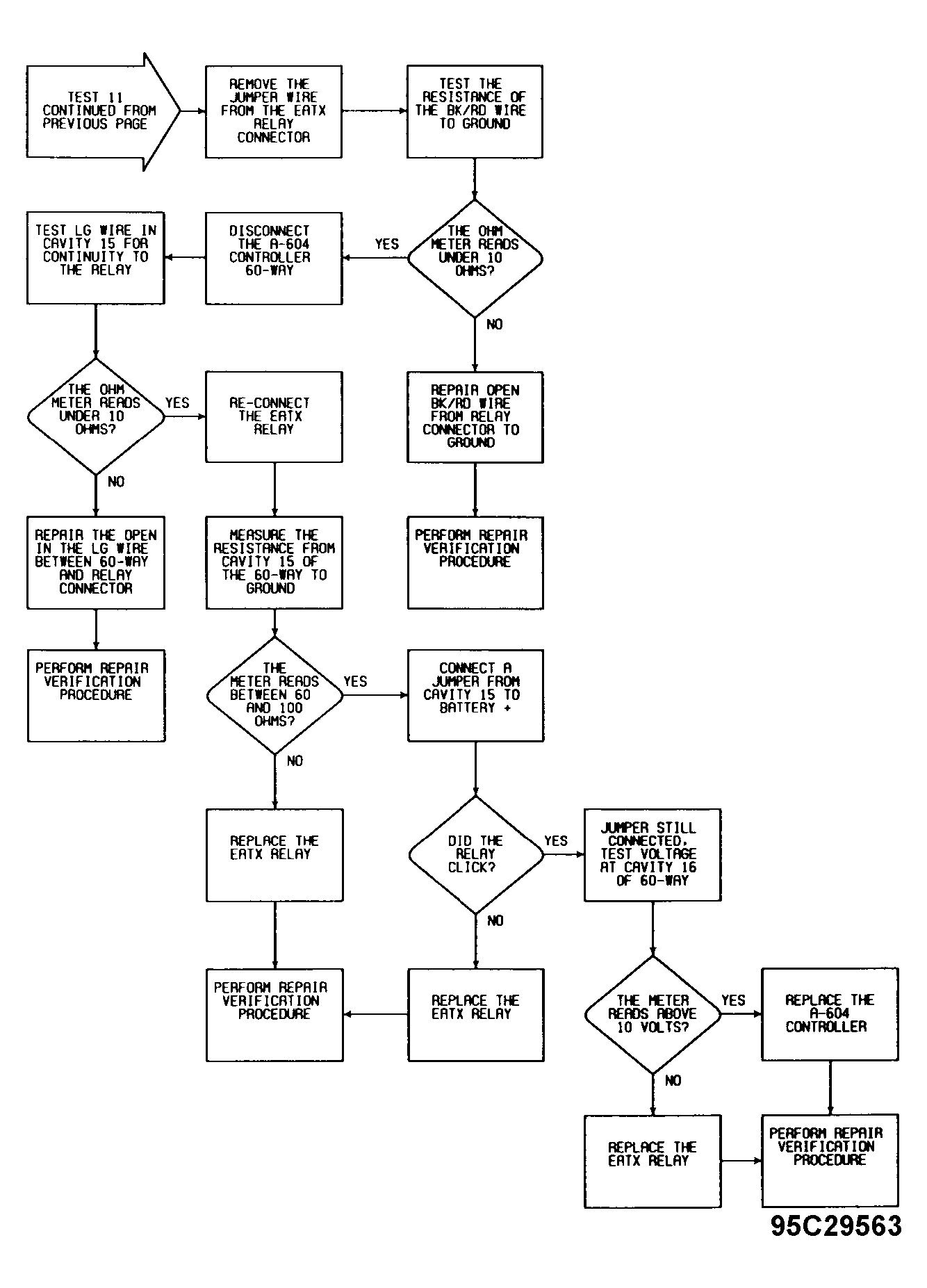

Fig 4: Test-11 Test For Code 15 - Relay Output Always Off (4 of 4)

Courtesy of CHRYSLER MOTOR CORP.
