Diagnosis - A-604
›
Trouble Code Charts
›
Test 12
Test 12

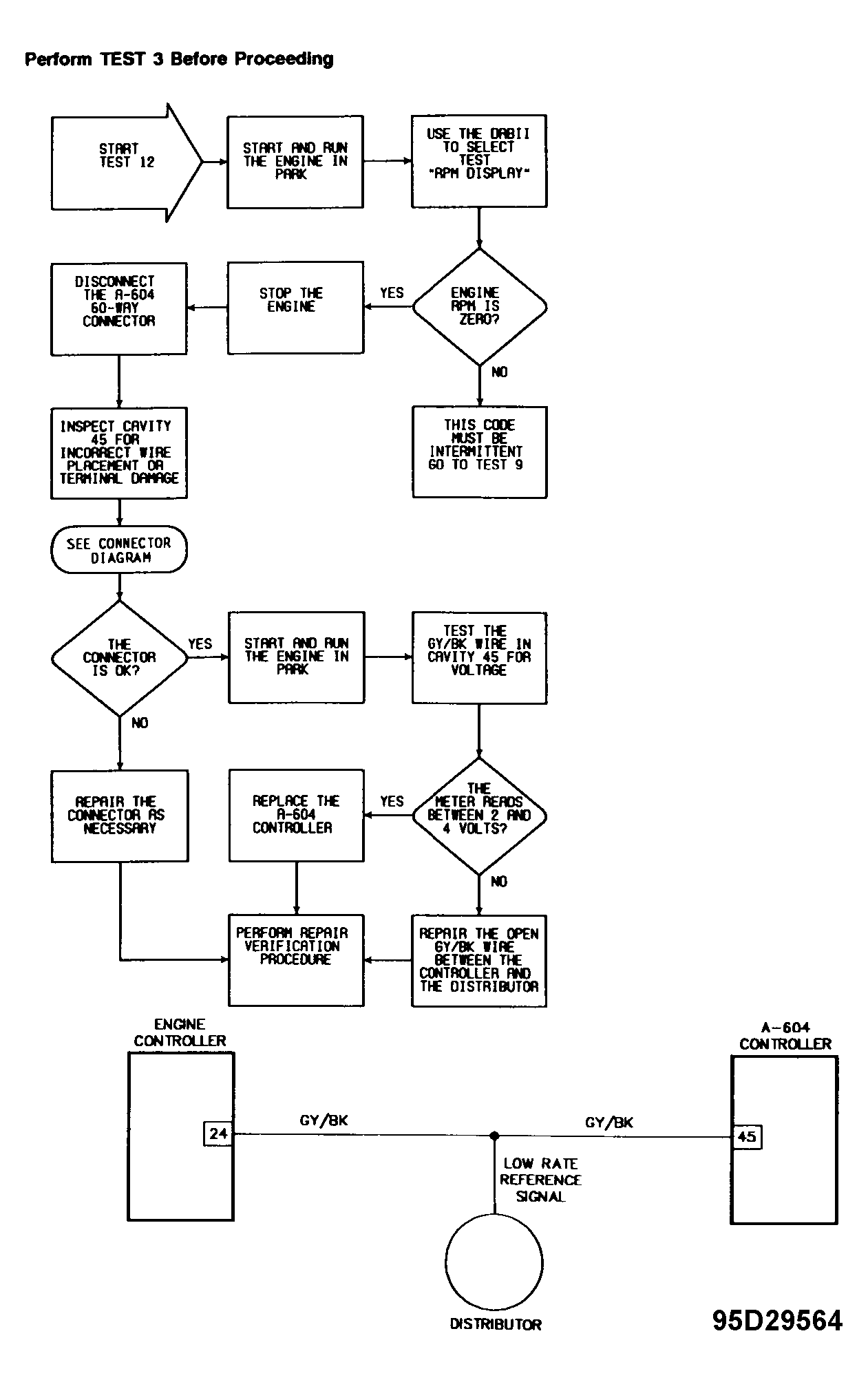

Fig 1: Test-12 Test For Code 18 - Engine Speed Sensor Output
Courtesy of CHRYSLER MOTOR CORP.
Courtesy of CHRYSLER MOTOR CORP.
