Diagnosis - A-604
›
Trouble Code Charts
›
Test 14
Test 14

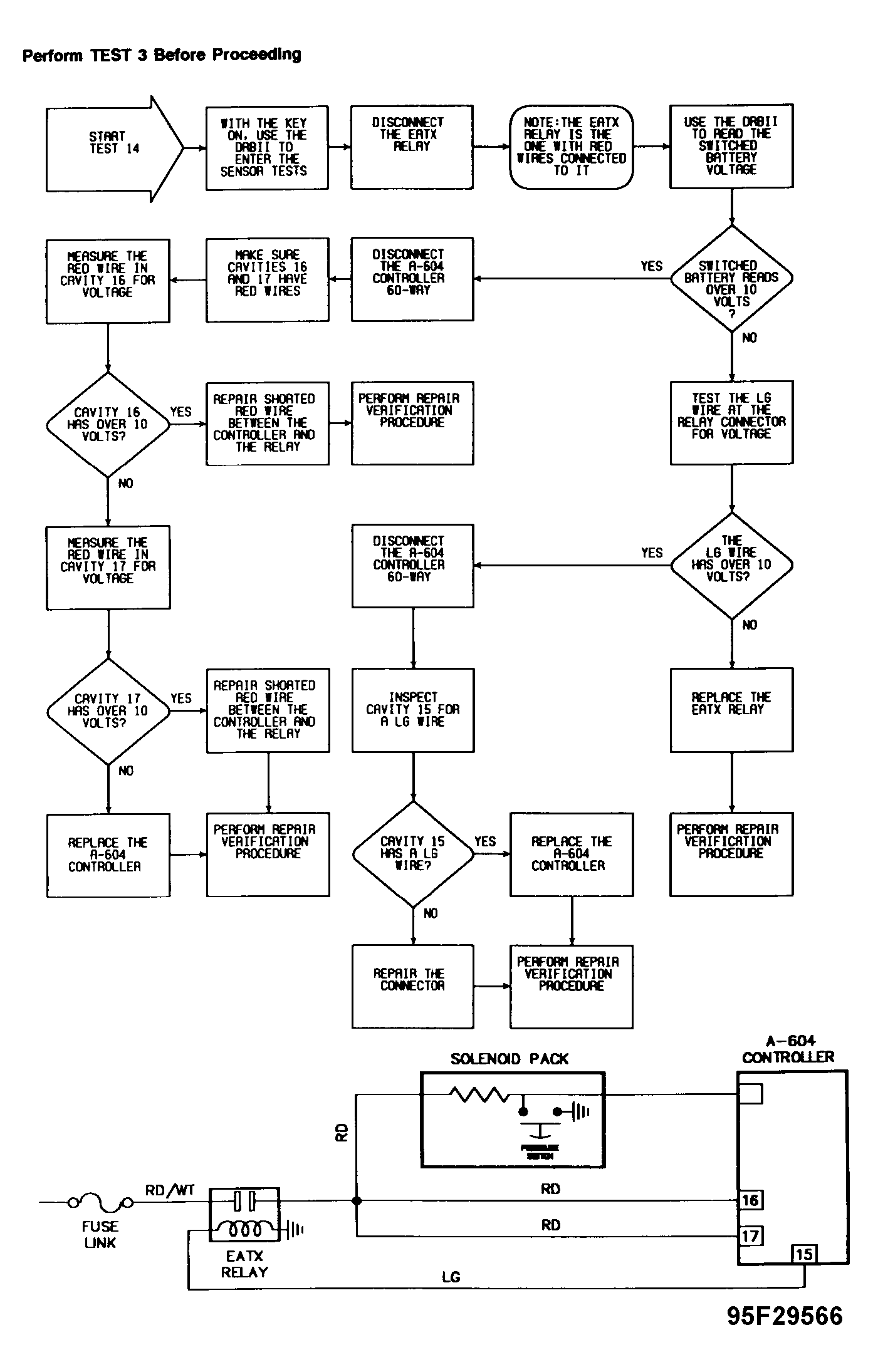

Fig 1: Test-14 Test For Code 20 - Switched Battery
Courtesy of CHRYSLER MOTOR CORP.
Courtesy of CHRYSLER MOTOR CORP.
