Test 15

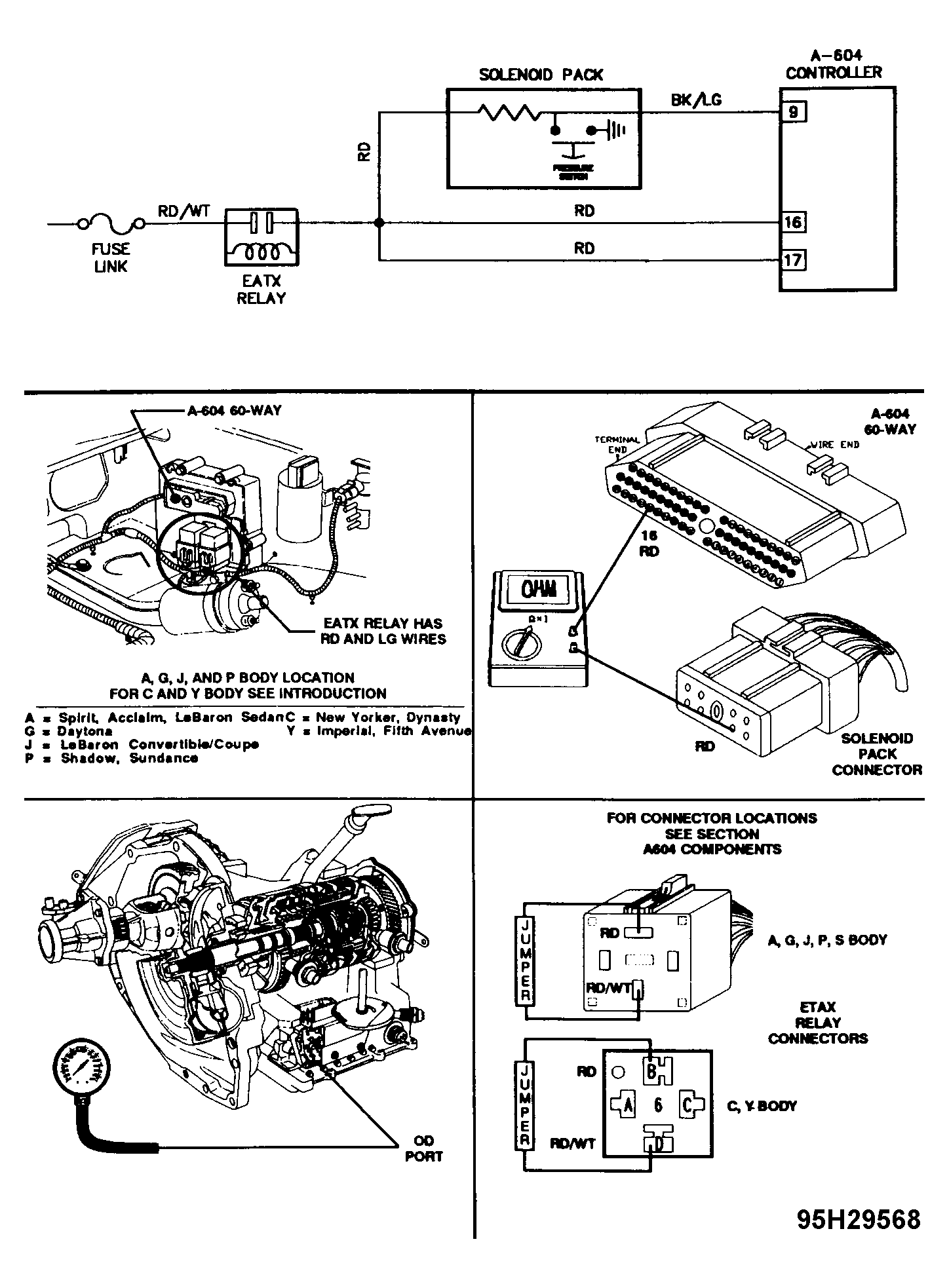

Fig 1: Test-15 Test For Code 21 - OD Pressure Switch Circuit (1 of 3)

Courtesy of CHRYSLER MOTOR CORP.

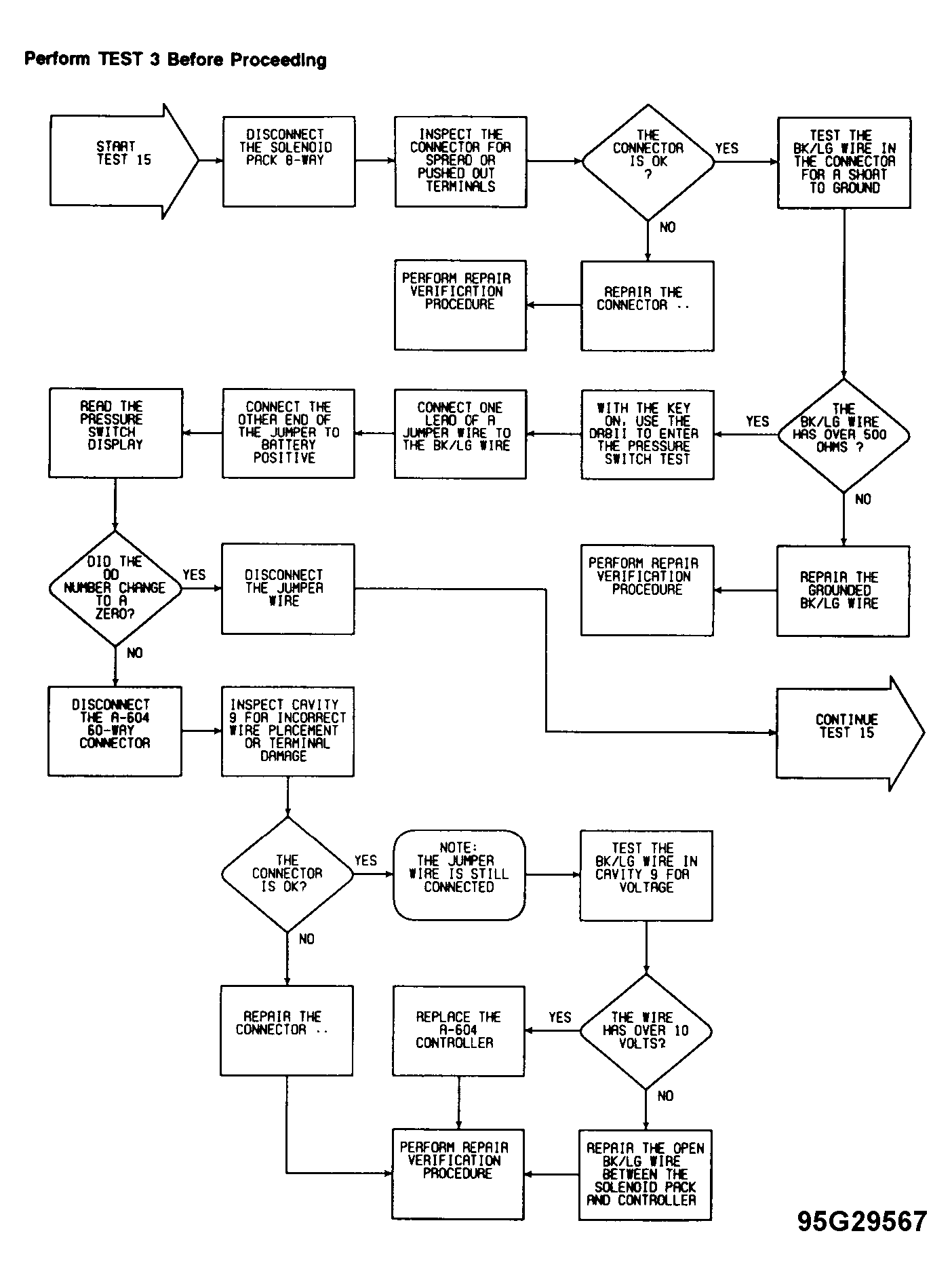

Fig 2: Test-15 Test For Code 21 - OD Pressure Switch Circuit (2 of 3)

Courtesy of CHRYSLER MOTOR CORP.

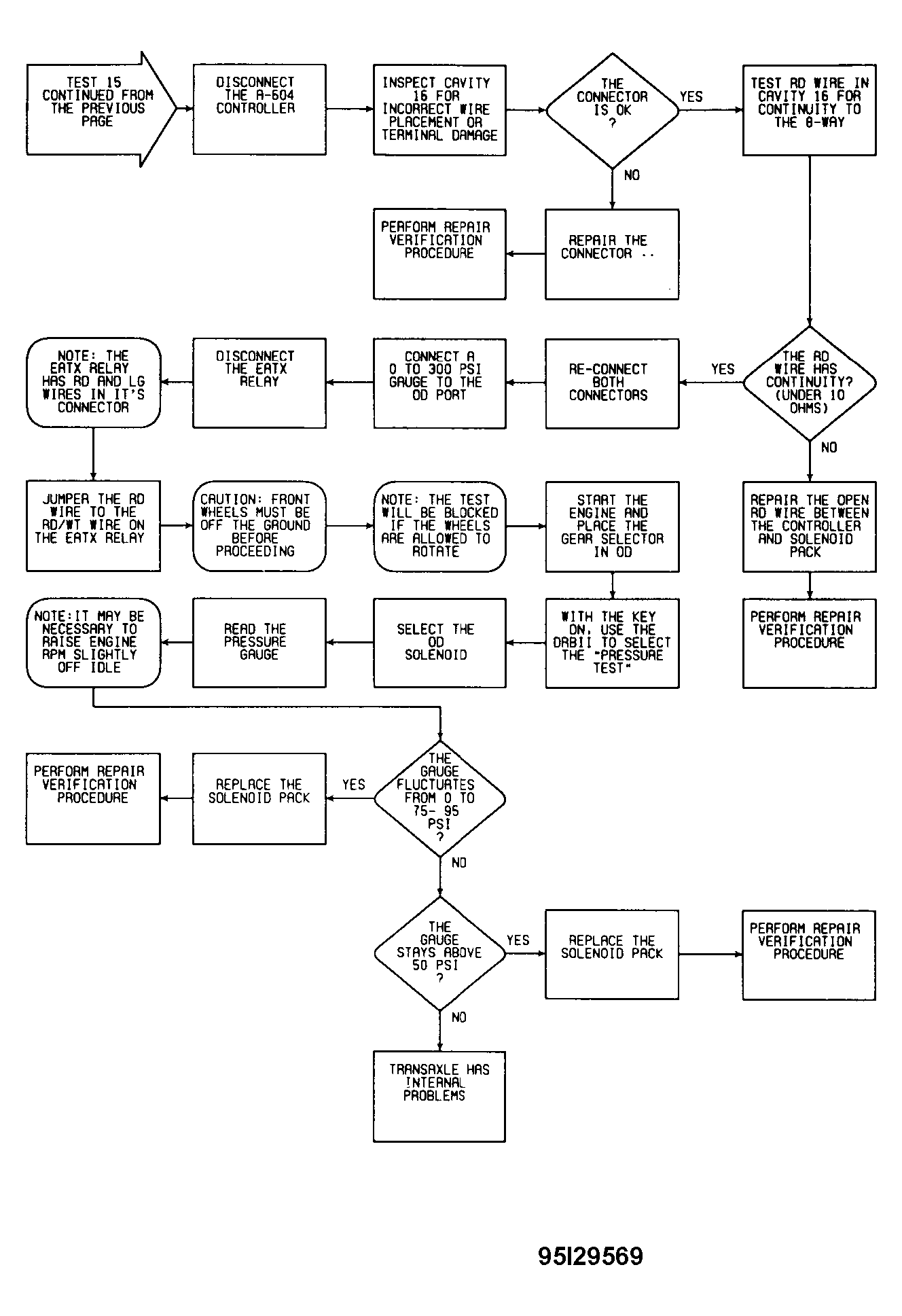

Fig 3: Test-15 Test For Code 21 - OD Pressure Switch Circuit (3 of 3)

Courtesy of CHRYSLER MOTOR CORP.
