Test 16

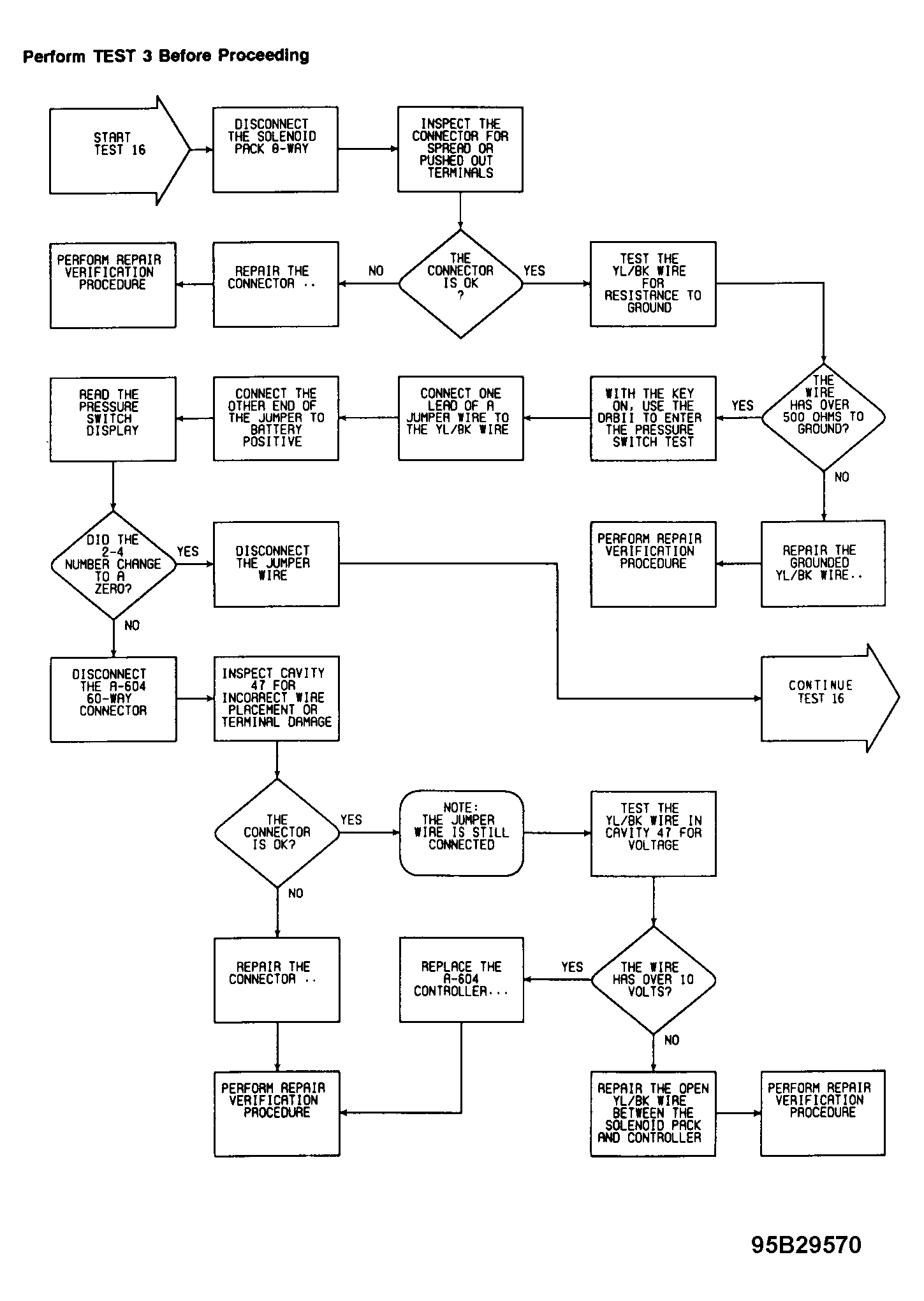

Fig 1: Test-16 Test For Code 22 - 2-4 Pressure Switch Circuit (1 of 3)

Courtesy of CHRYSLER MOTOR CORP.

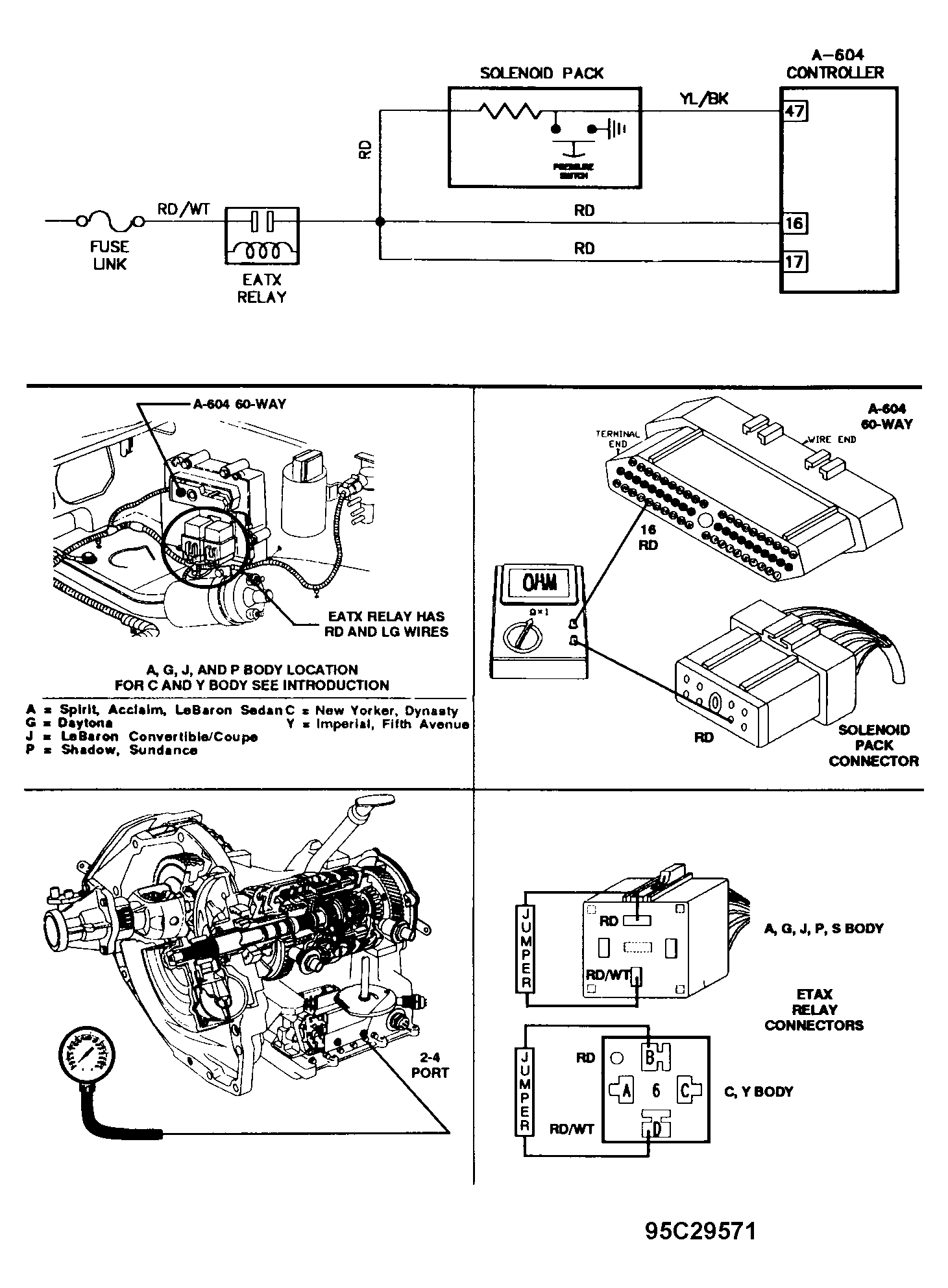

Fig 2: Test-16 Test For Code 22 - 2-4 Pressure Switch Circuit (2 of 3)

Courtesy of CHRYSLER MOTOR CORP.

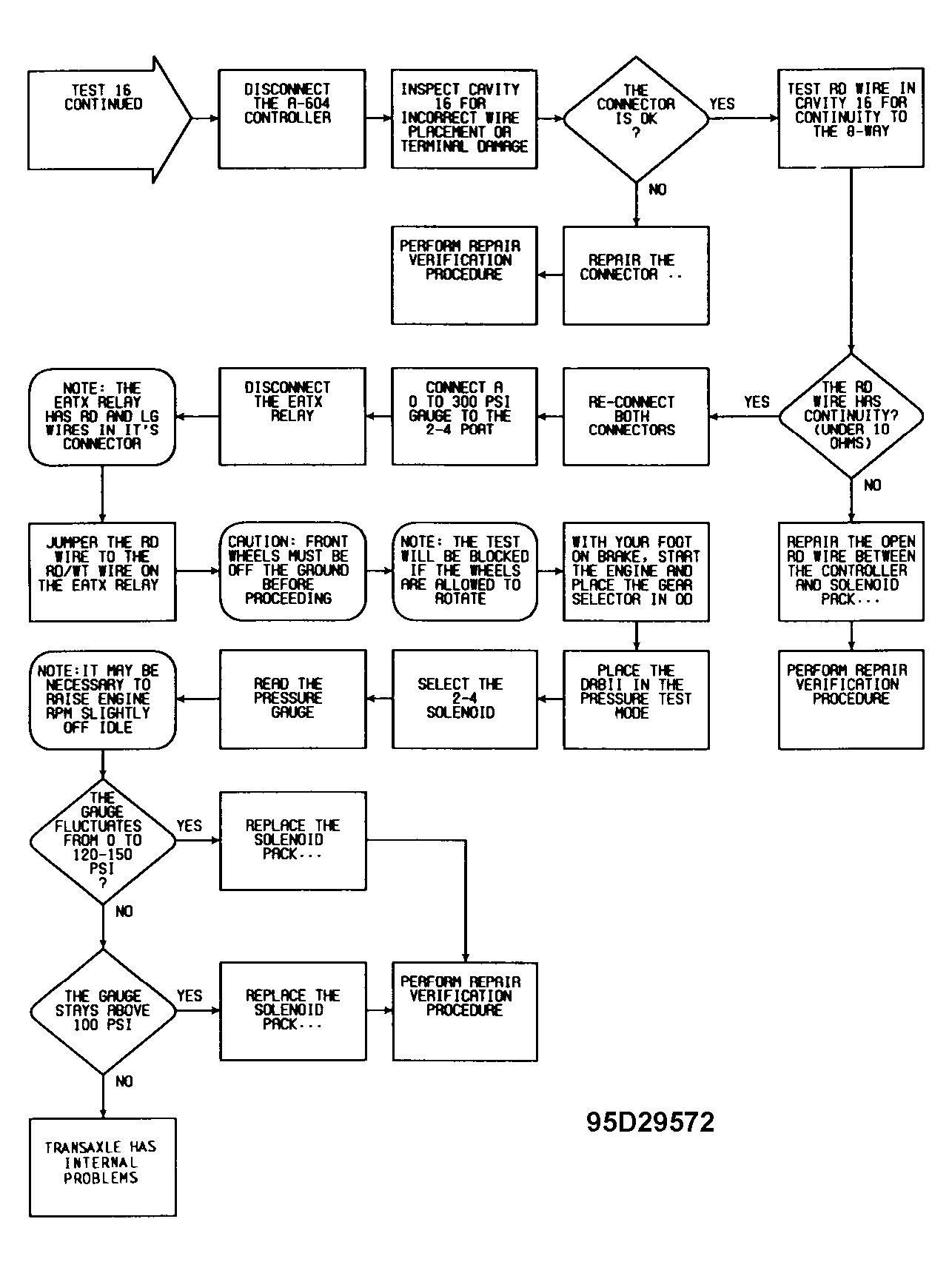

Fig 3: Test-16 Test For Code 22 - 2-4 Pressure Switch Circuit (3 of 3)

Courtesy of CHRYSLER MOTOR CORP.
