CCD Bus SYS Test 107: Check Eng Controller For Open Bus Message
CCD Bus SYS Test 107: Check Eng Controller For Open Bus Message

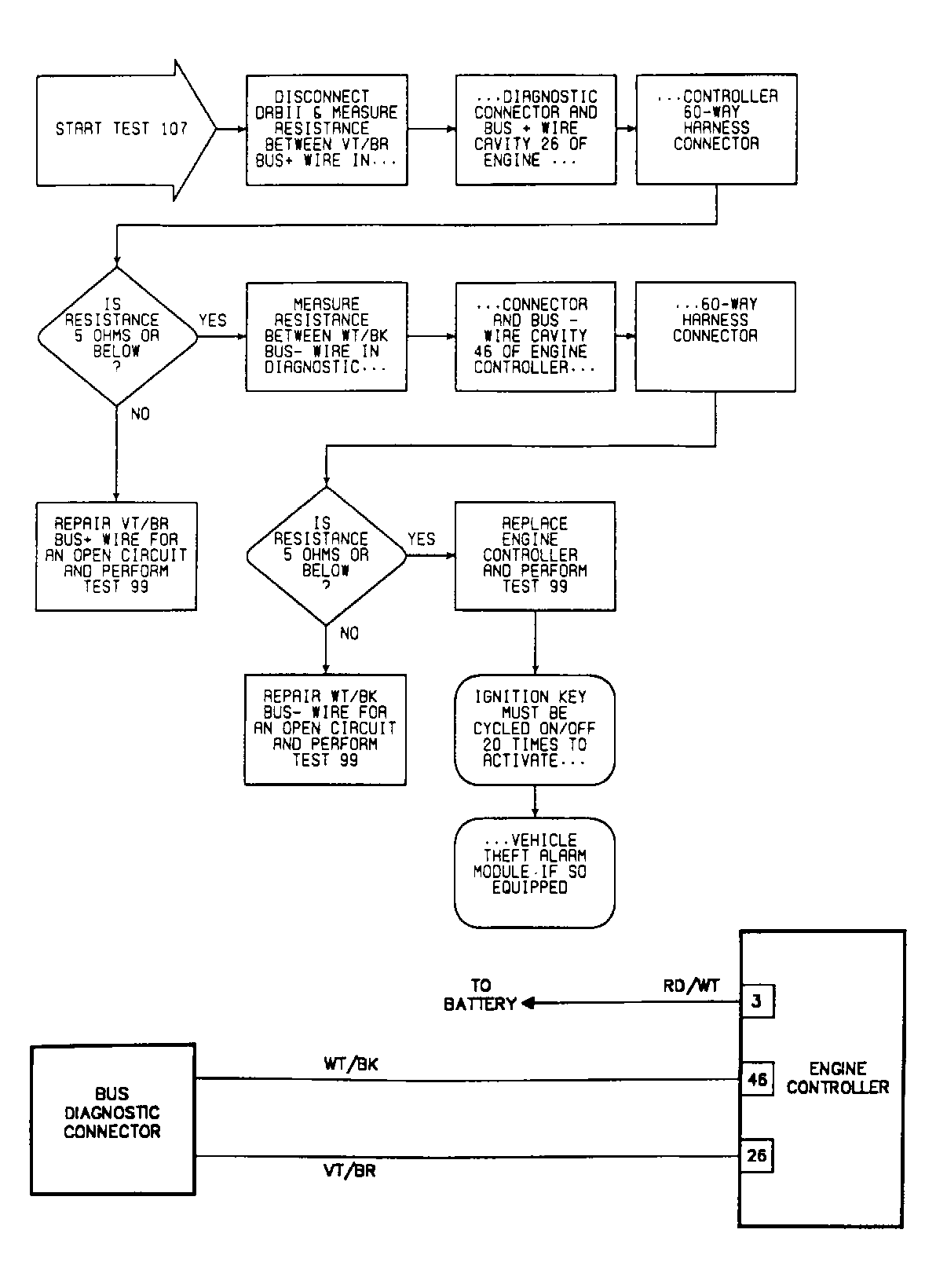

Fig 1: Test 107 Circuit Diagram & Flow Chart
