Theft Alarm Module Test 61: Ignition Sense Test
Theft Alarm Module Test 61: Ignition Sense Test

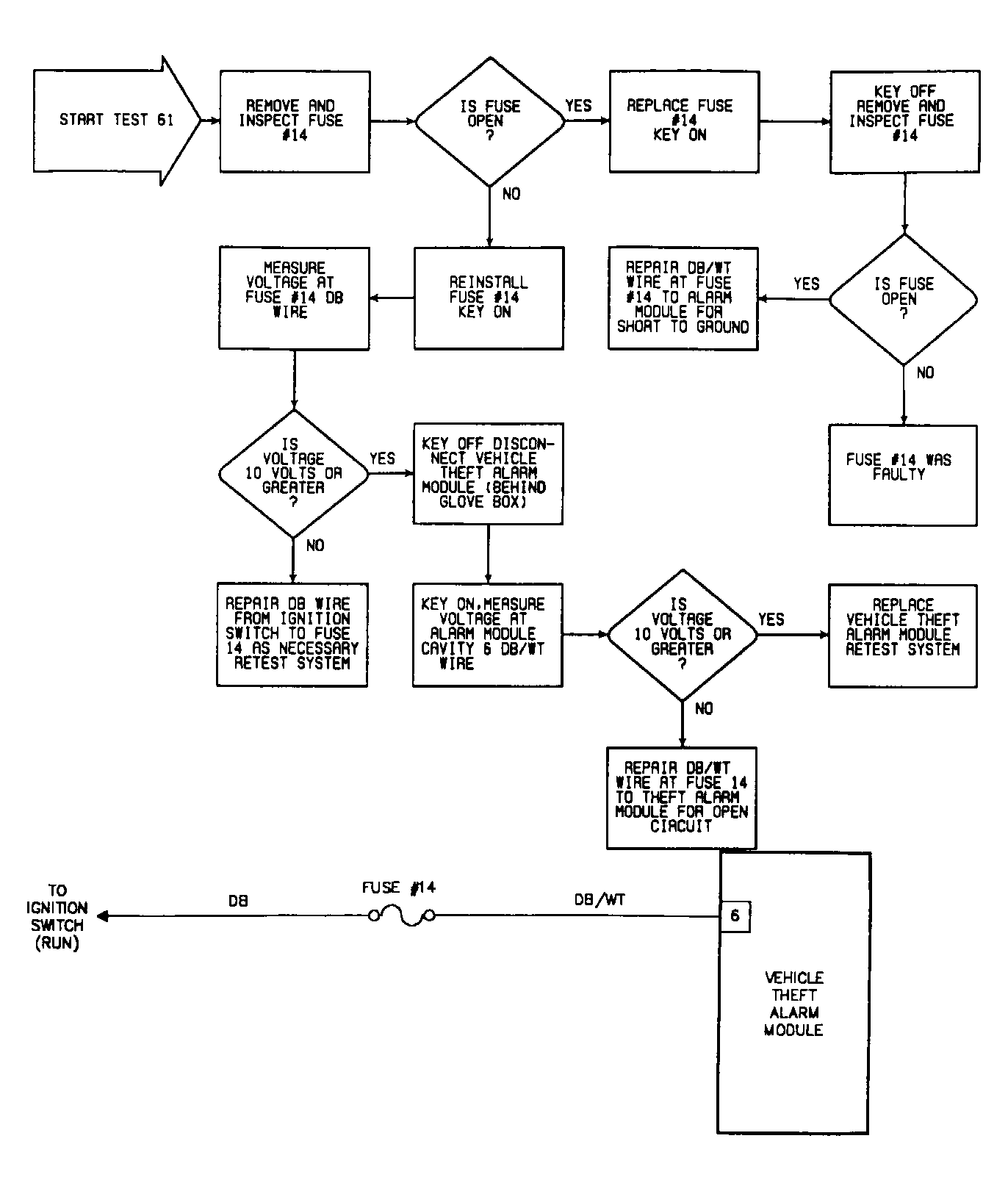

Fig 1: Test 61 Circuit Diagram & Flow Chart
