Engine Controls - Tests W/Codes - 3.0L
›
DRIVEABILITY Tests
›
Dr-32: O2 Sensor Heater Test
Dr-32: O2 Sensor Heater Test

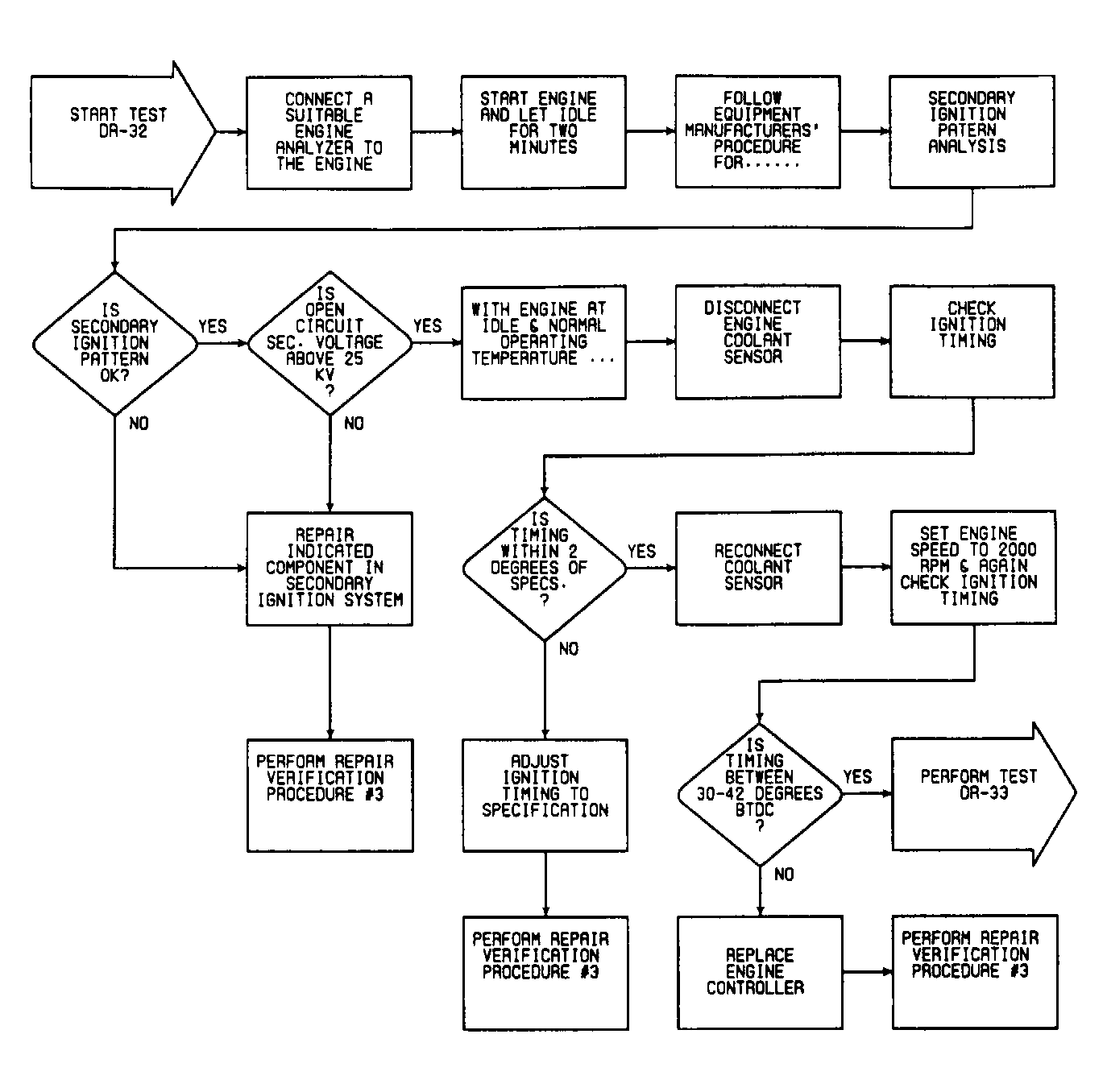

Fig 1: DR-32: Flow Chart
