Engine Controls - Tests W/Codes - 3.0L
›
DRIVEABILITY Tests
›
Dr-34: Checking Heated O2 Sensor
Dr-34: Checking Heated O2 Sensor

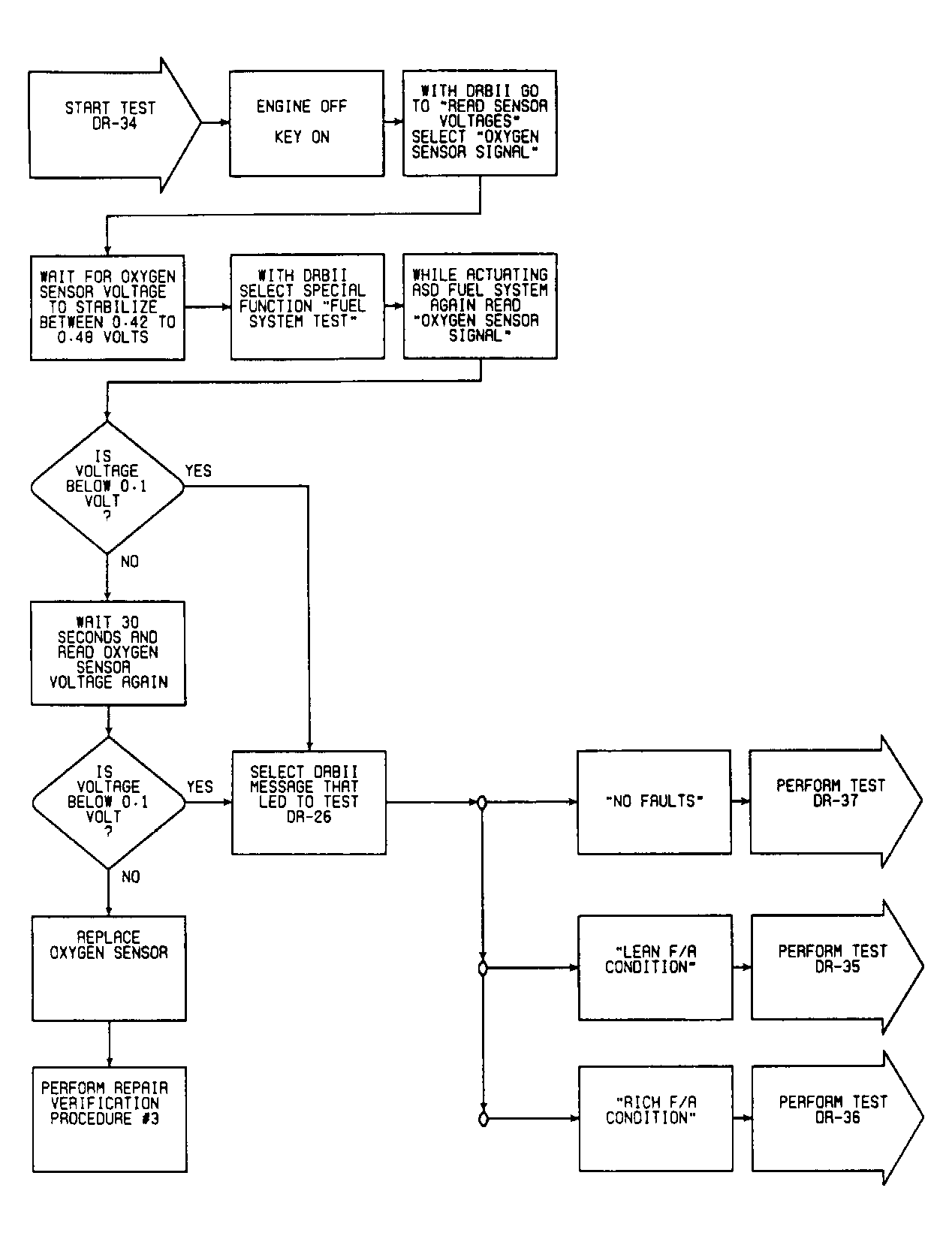

Fig 1: DR-34: Flow Chart
