Test 30B - Checking Ground Supply & Diode Assembly For Open

Fig 1: Test 30B Schematic - Checking Ground Supply & Diode Assembly For Open

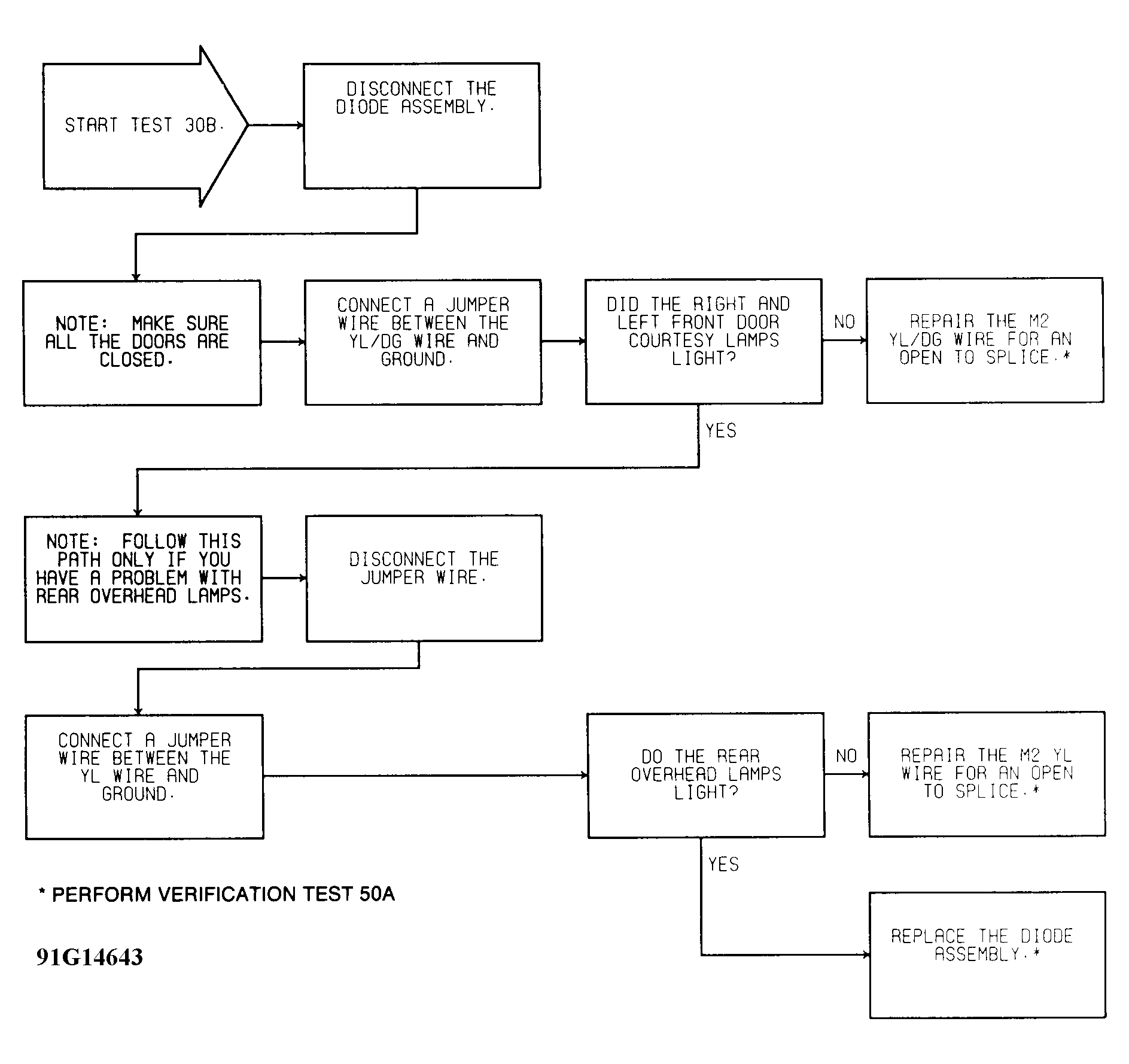

Fig 2: Test 30B Flow Chart - Checking Ground Supply & Diode Assembly For Open
