Test 53A - Testing For Short To Battery On Bus
Test 53A - Testing For Short To Battery On Bus

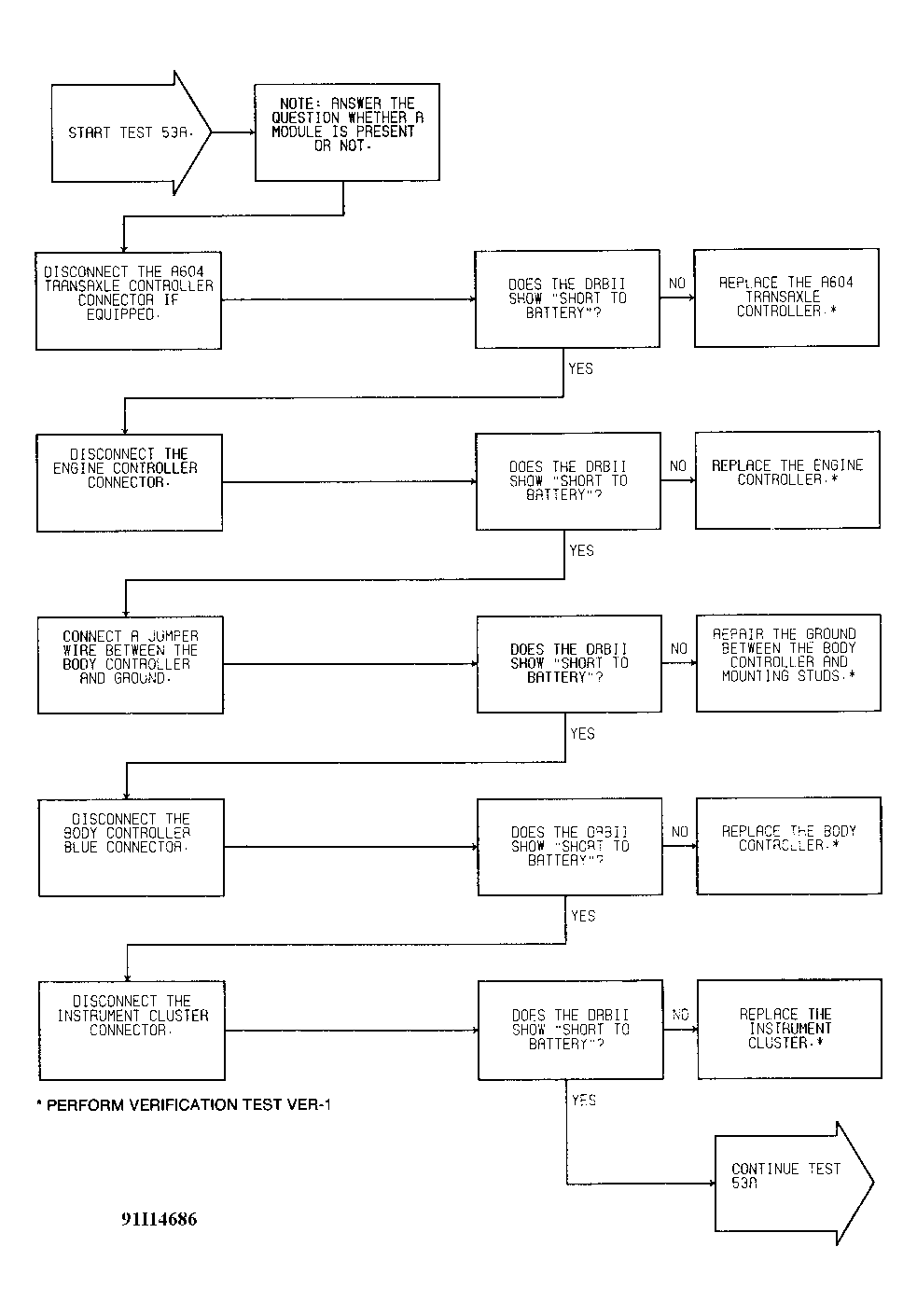

Fig 1: Test 53A (1 of 2) - Testing For Short To Battery On Bus

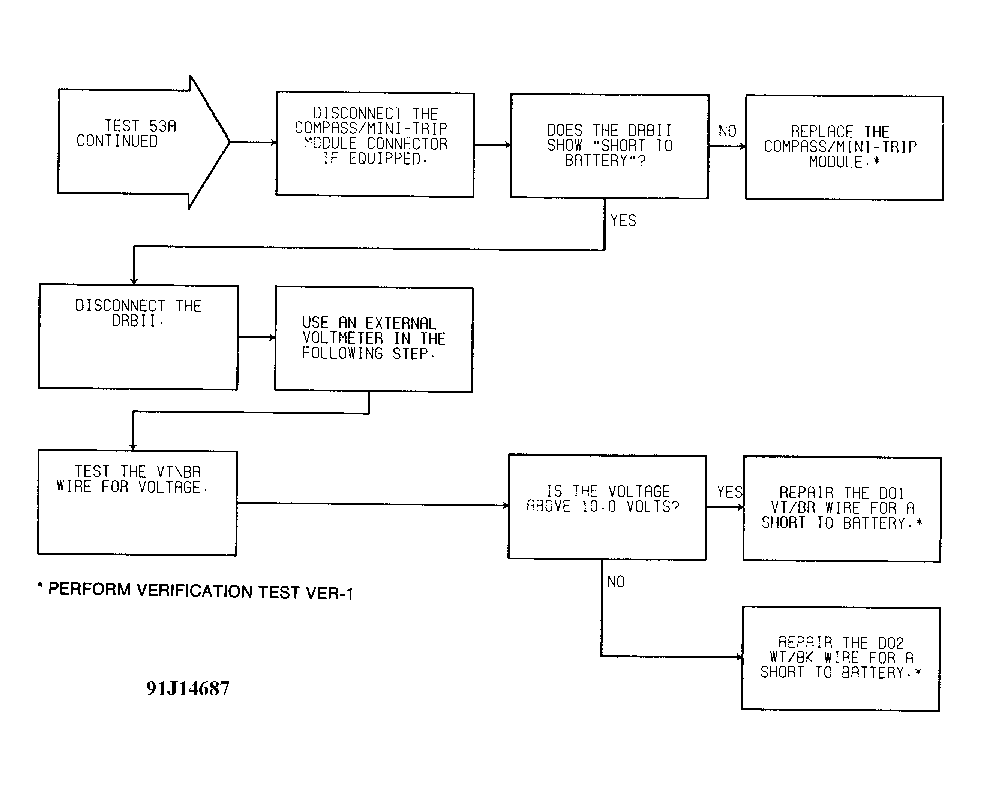

Fig 2: Test 53A (2 of 2) - Testing For Short To Battery On Bus
