Test 55A - Testing For Short To Ground On Bus
Test 55A - Testing For Short To Ground On Bus

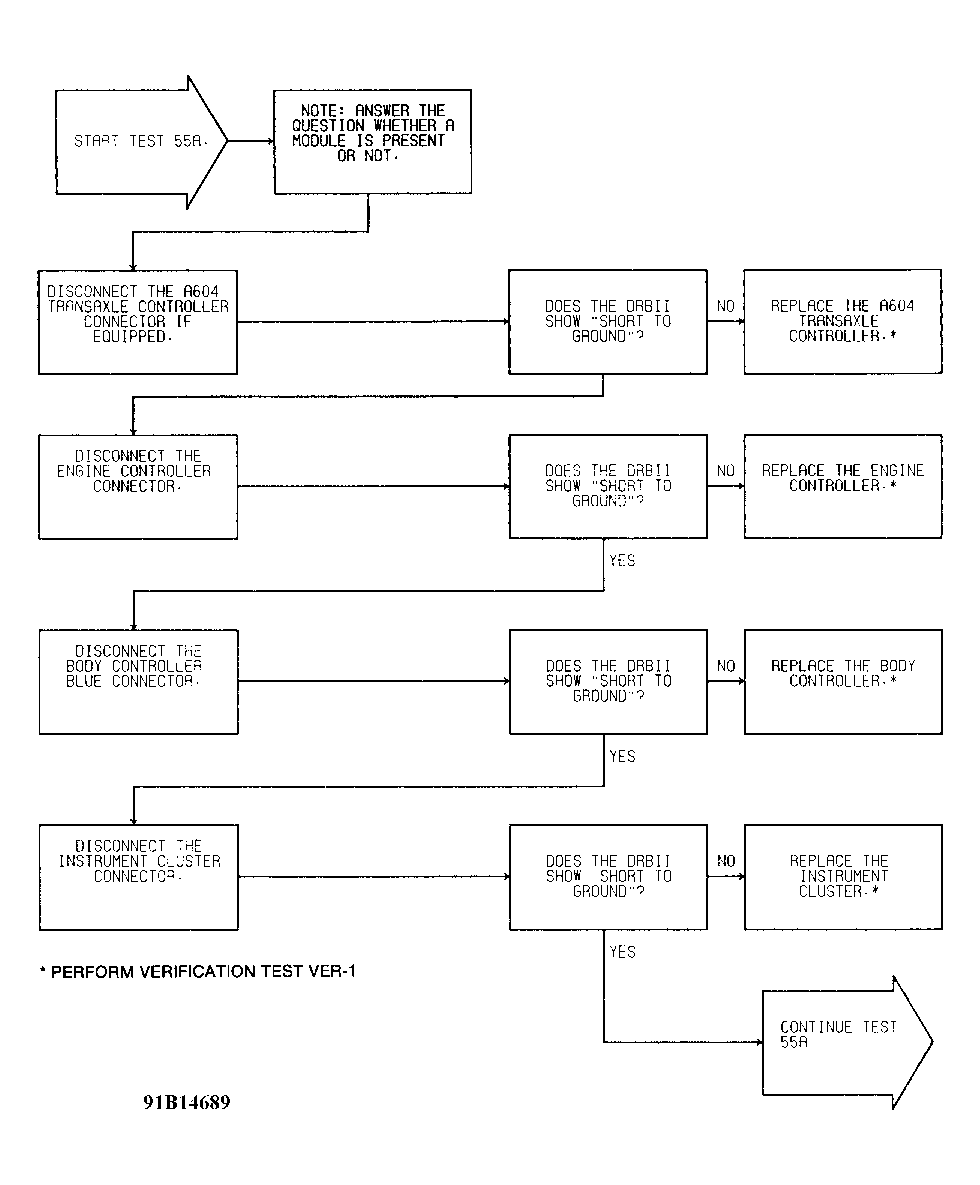

Fig 1: Test 55A (1 of 2) - Testing For Short To Ground On Bus

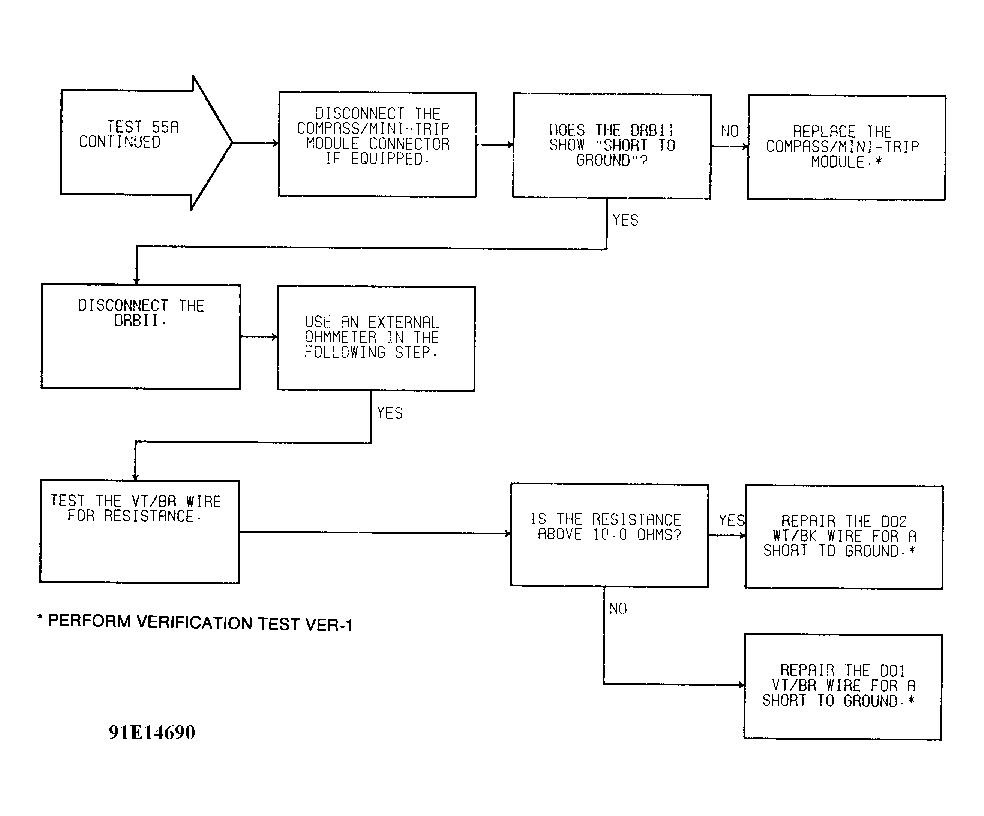

Fig 2: Test 55A (2 of 2) - Testing For Short To Ground On Bus
