Test 62A - Testing For Bus (-) Open
Test 62A - Testing For Bus (-) Open

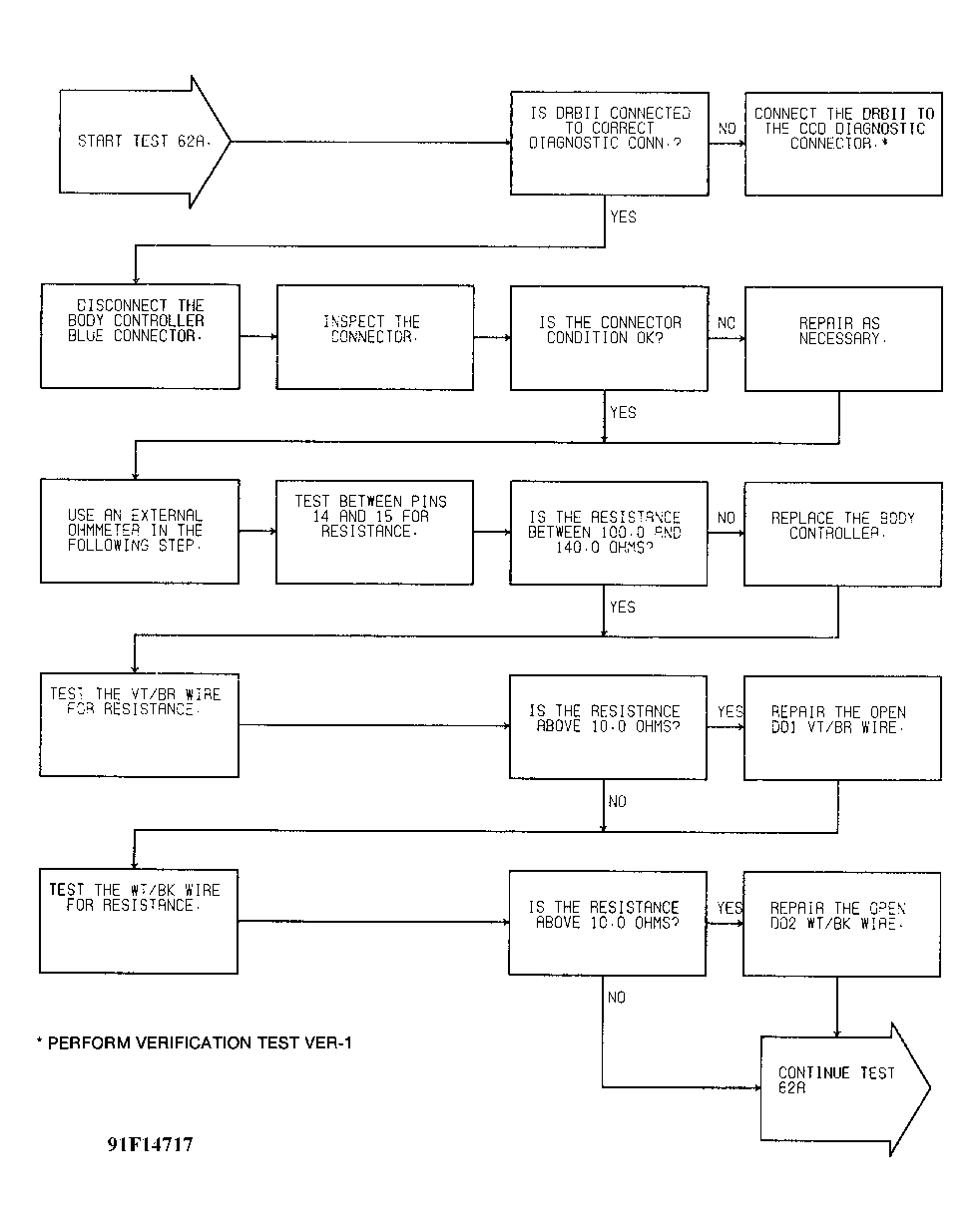

Fig 1: Test 62A (1 of 2) - Testing For Bus (-) Open

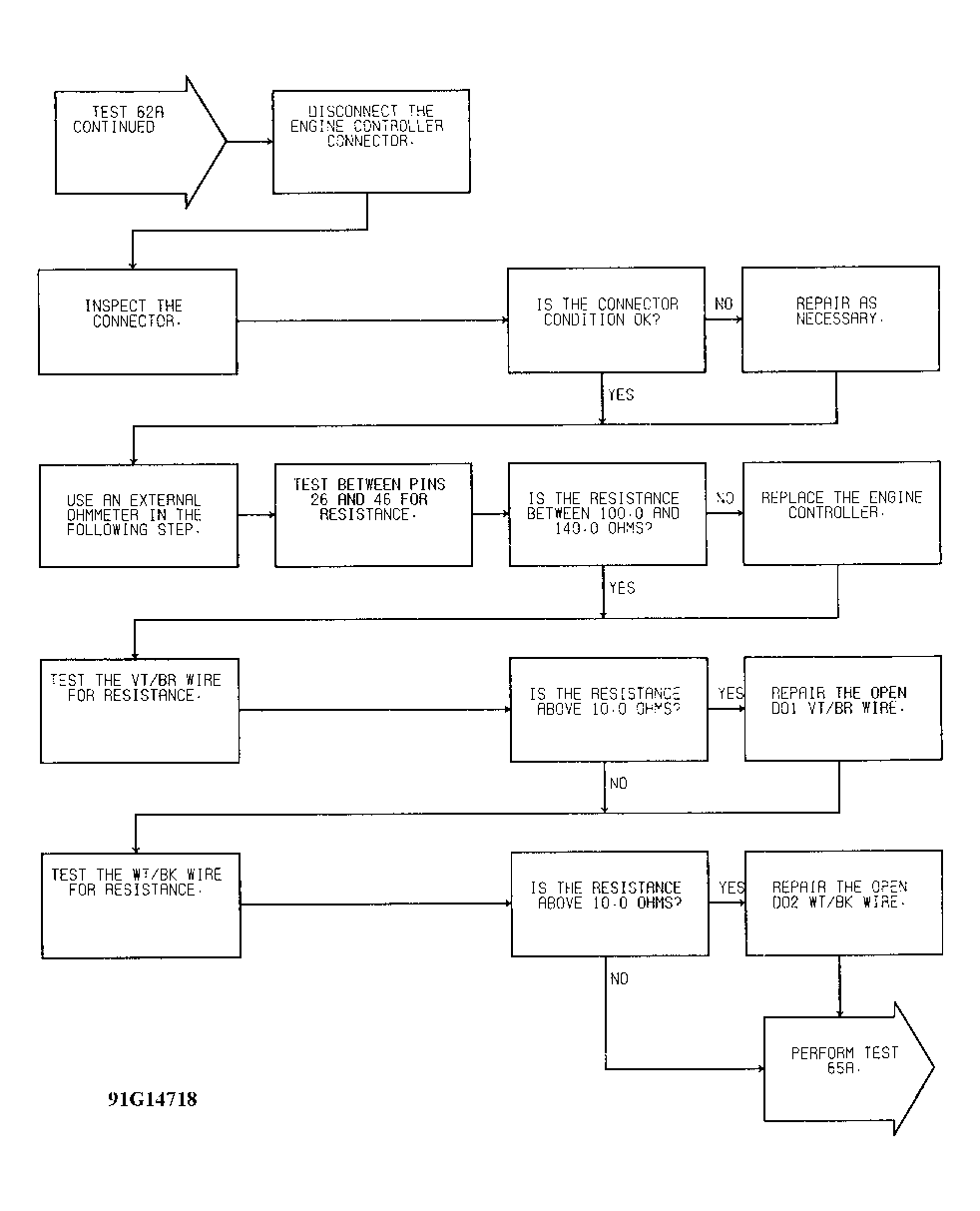

Fig 2: Test 62A (2 of 2) - Testing For Bus (-) Open
