Test 67C - Testing M01 Circuit

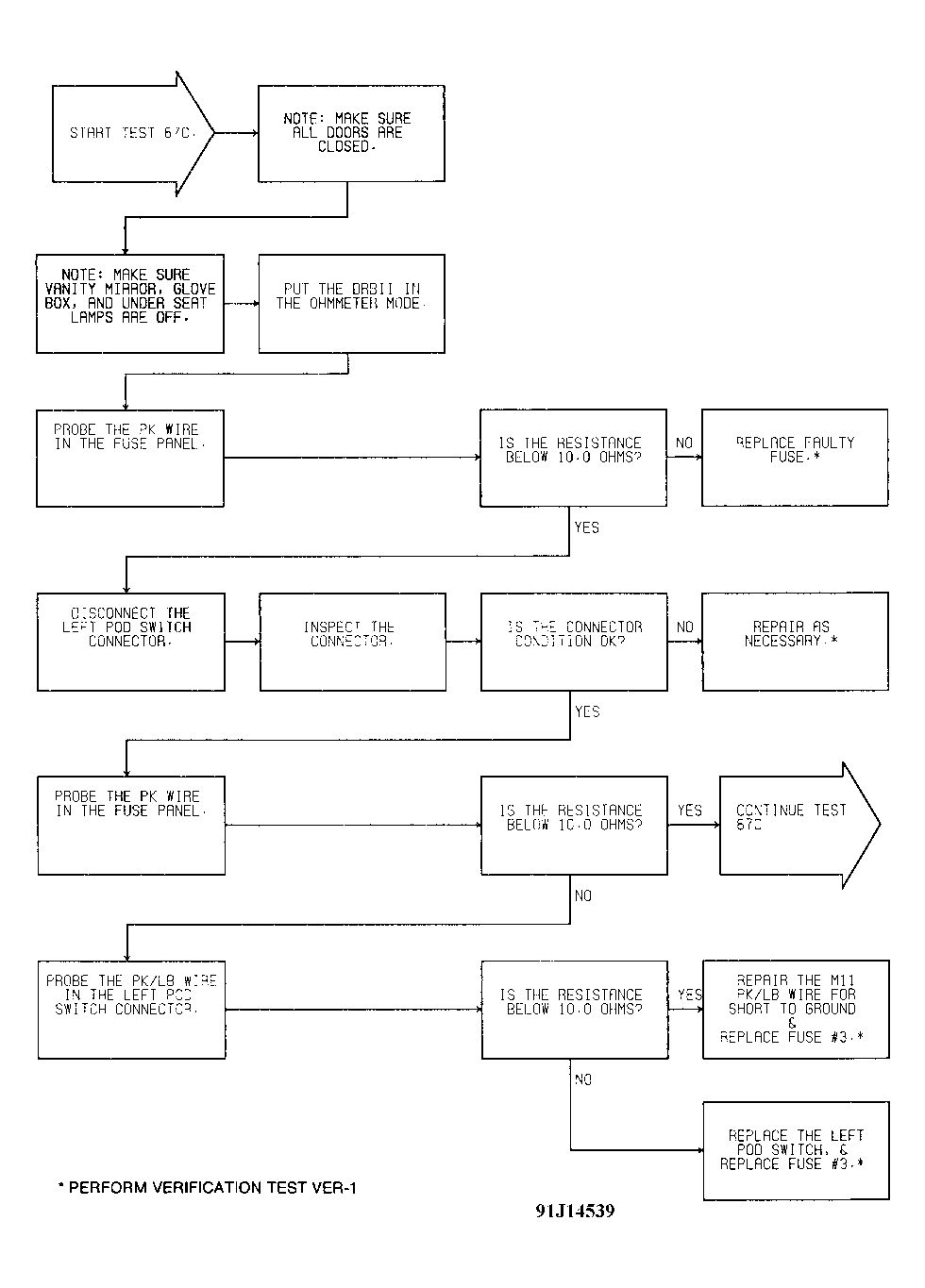

Fig 1: Test 67C (1 of 2) - Testing M01 Circuit

G91J14539

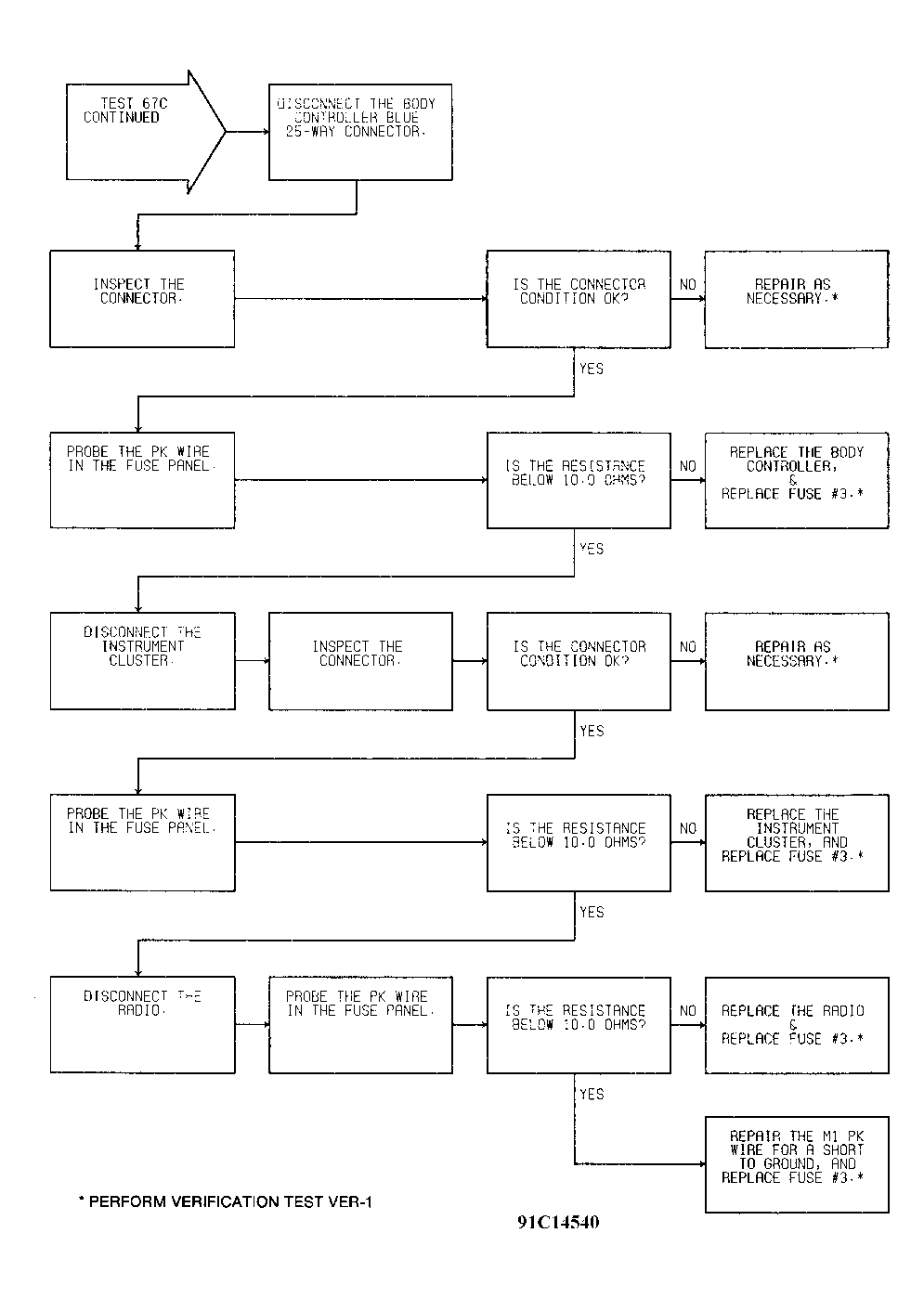

Fig 2: Test 67C (2 of 2) - Testing M01 Circuit

G91C14540
