Test 72A - Testing For Blank DRB-II Message Screen

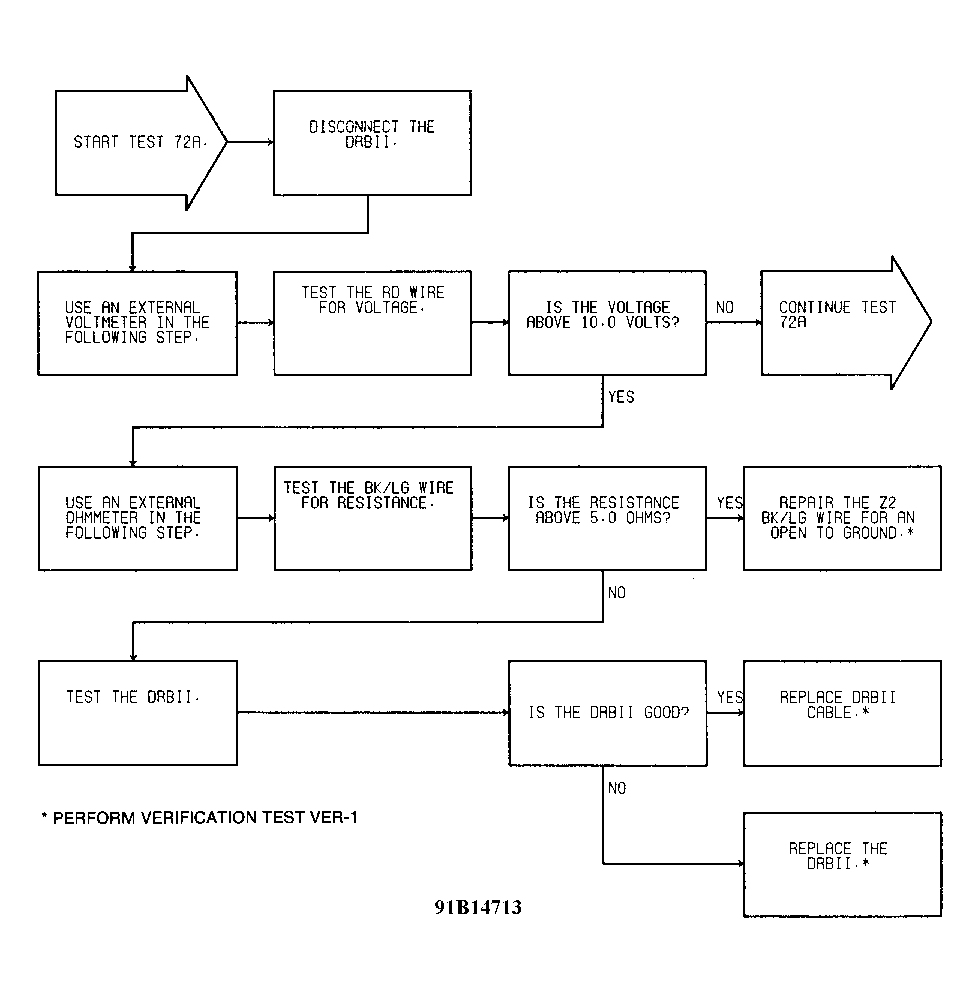

Fig 1: Test 72A (1 of 2) - Testing For Blank DRB-II Message Screen

G91B14713

Fig 2: Test 72A (2 of 2) - Testing For Blank DRB-II Message Screen

G91C14714
