Test 40A: Diagnosing Theft Alarm Module

Fig 1: Test 40A: Circuit Diagram.

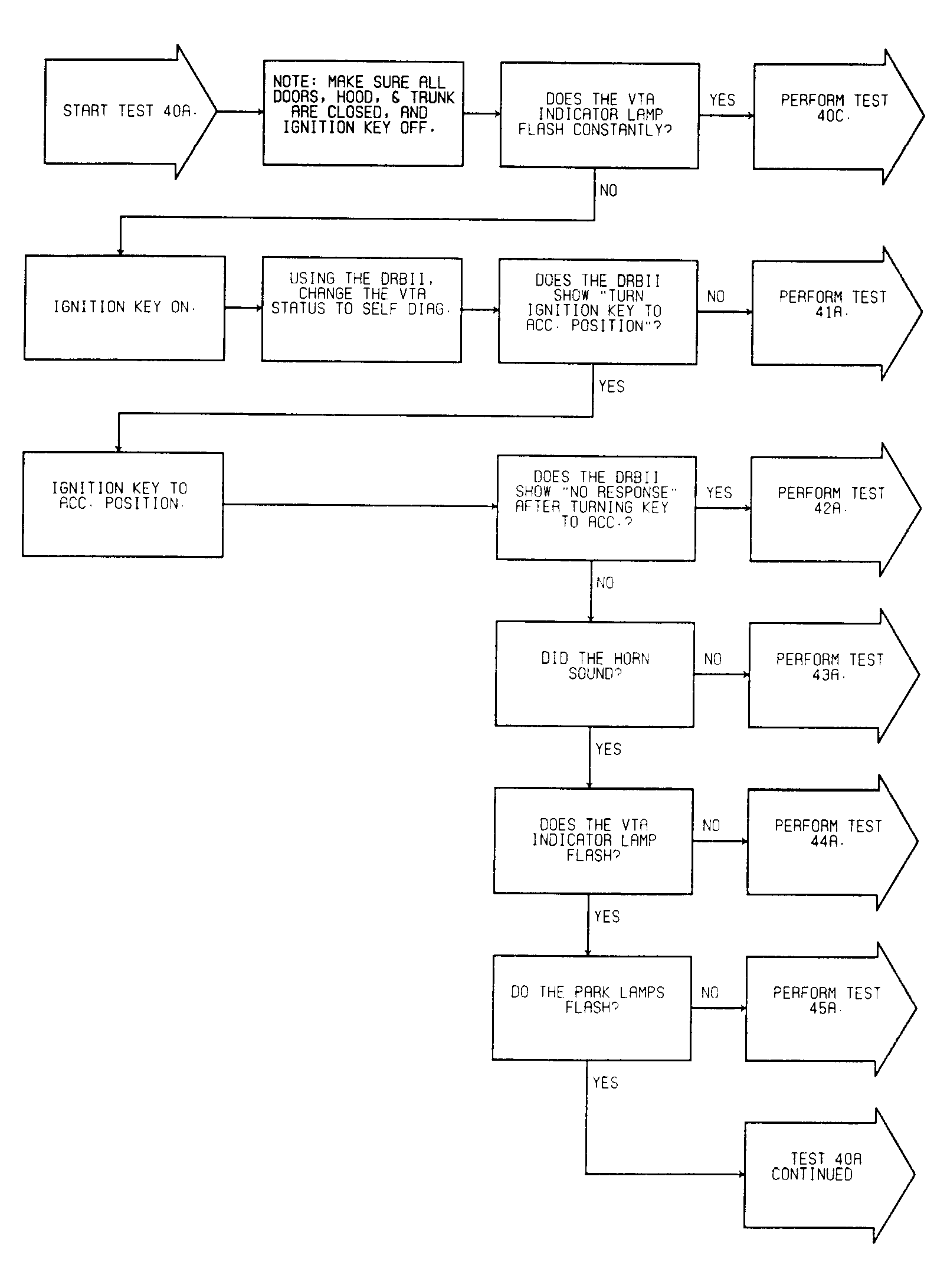

Fig 2: Test 40A: Diagnosing Theft Alarm (1 of 4)

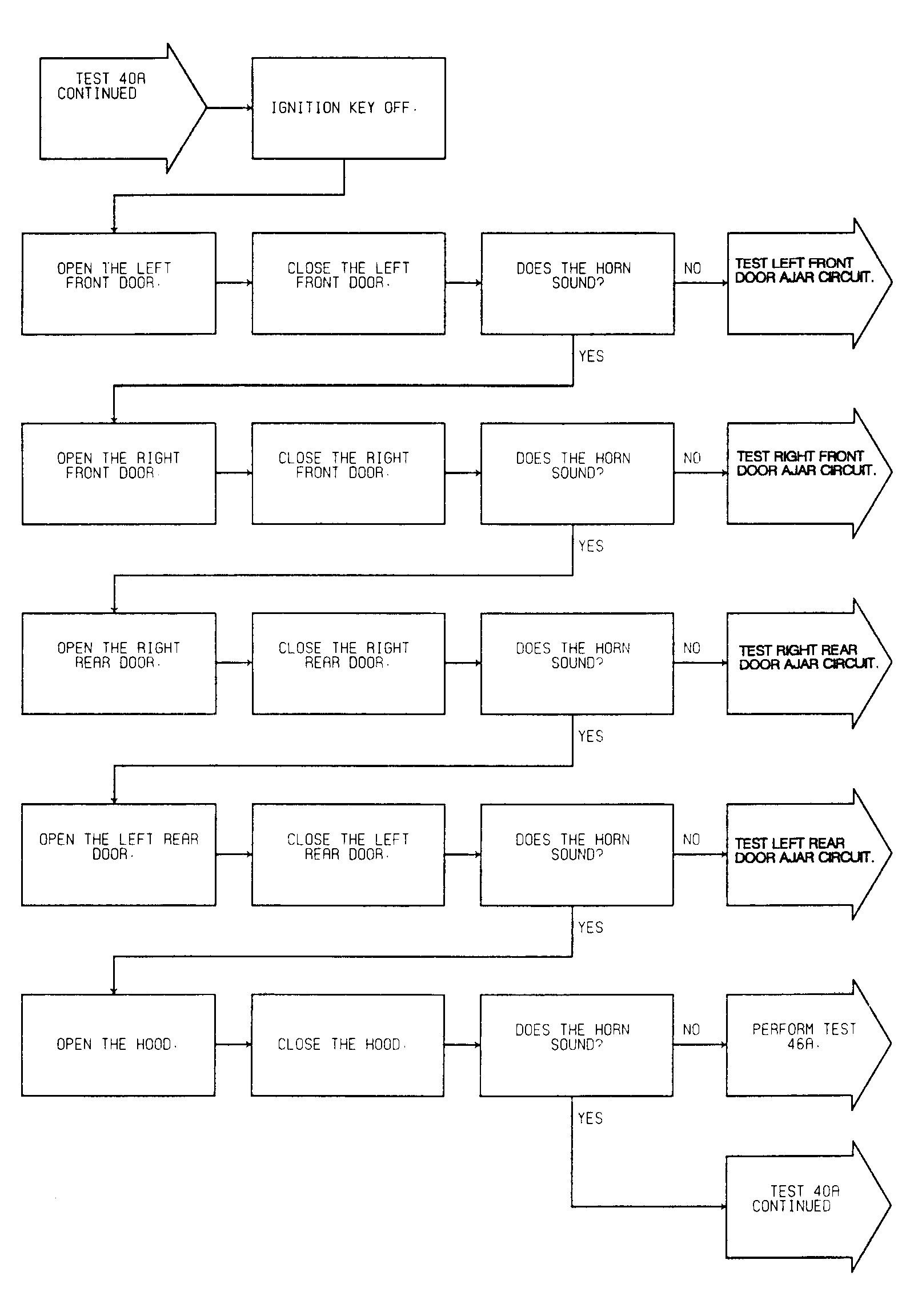

Fig 3: Test 40A: Diagnosing Theft Alarm (2 of 4)

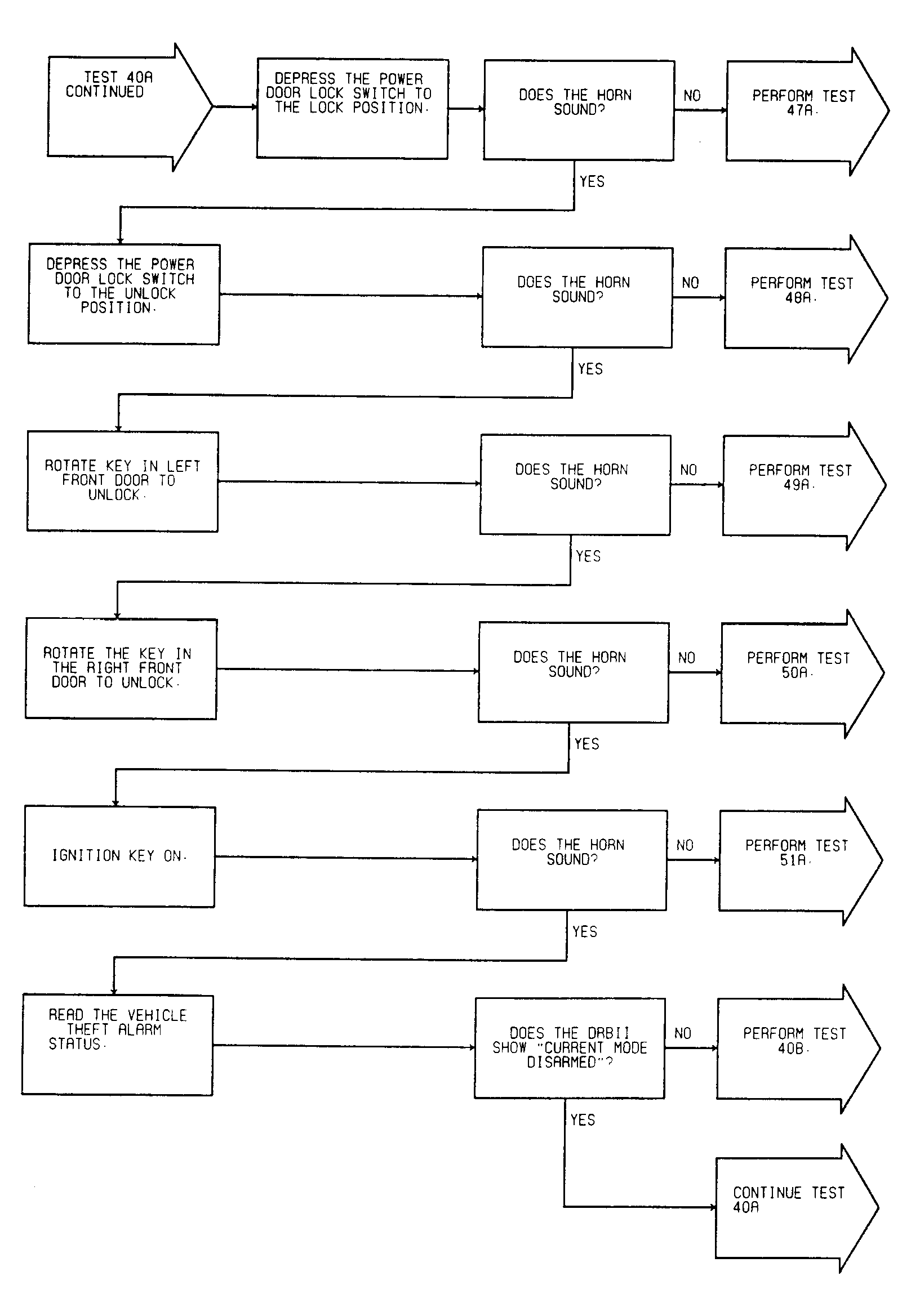

Fig 4: Test 40A: Diagnosing Theft Alarm (3 of 4)

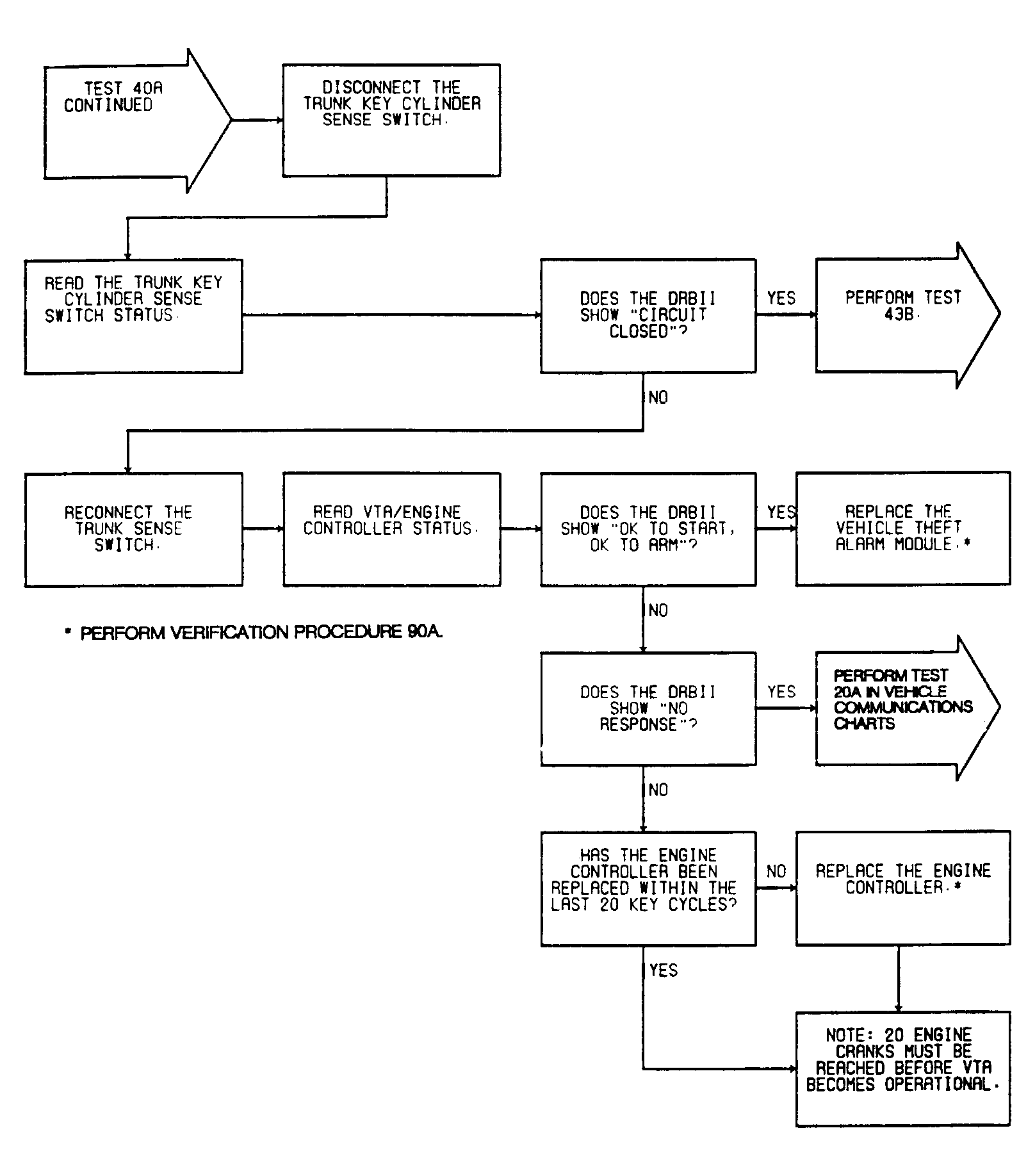

Fig 5: Test 40A: Diagnosing Theft Alarm (4 of 4)
