Test 44B: Theft Alarm Module Indicator Light Circuit

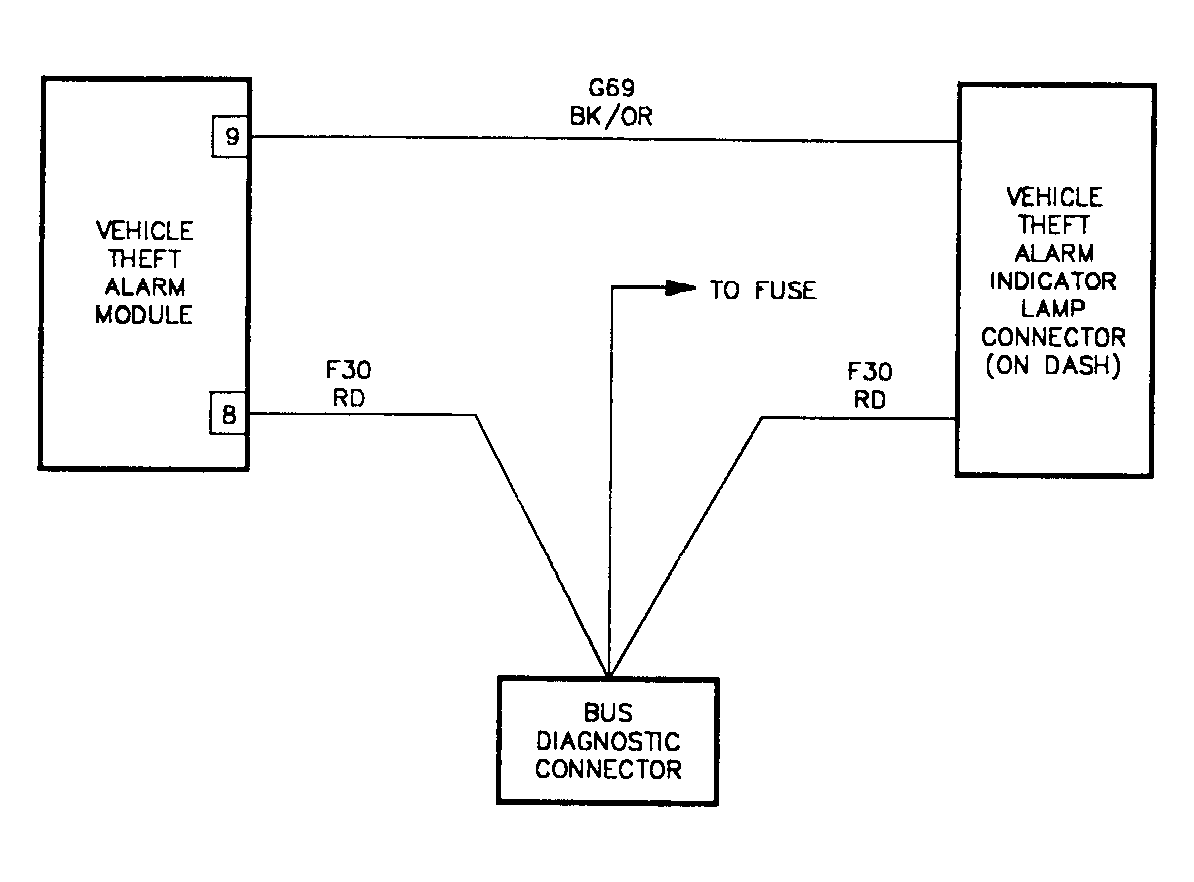

Fig 1: Test 44B: Circuit Diagram.

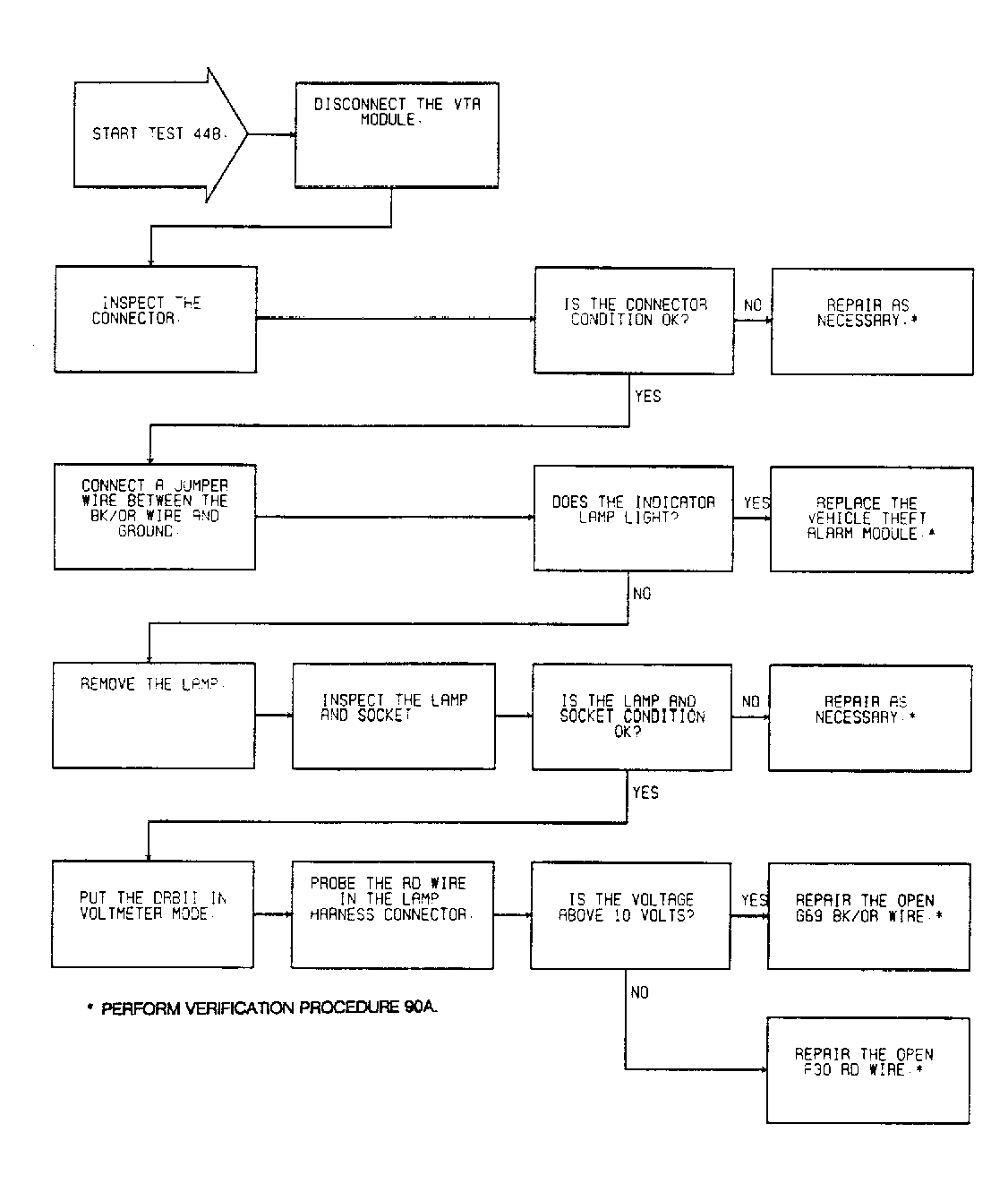

Fig 2: Test 44B: Theft Alarm Indicator Light Circuit
