Test 49A: Diagnosing Unlock Input

Fig 1: Test 49A: Circuit Diagram

G91A11544

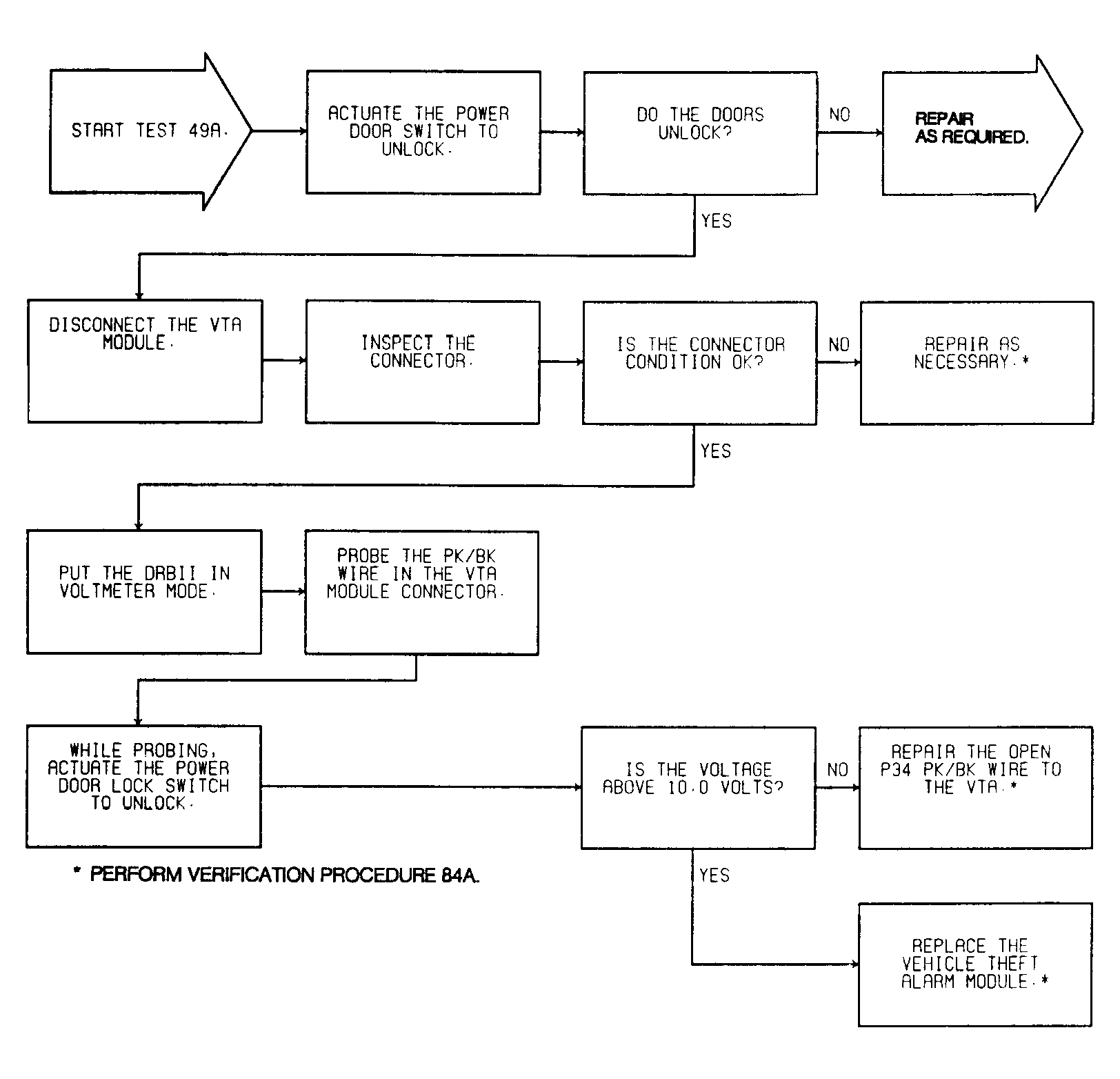

Fig 2: Test 49A: Diagnosing Unlock Input

G91G11557
