Test 82A: Repairing Faulty Fuel Level

Fig 1: Test 82A: Circuit Diagram

G91J11469

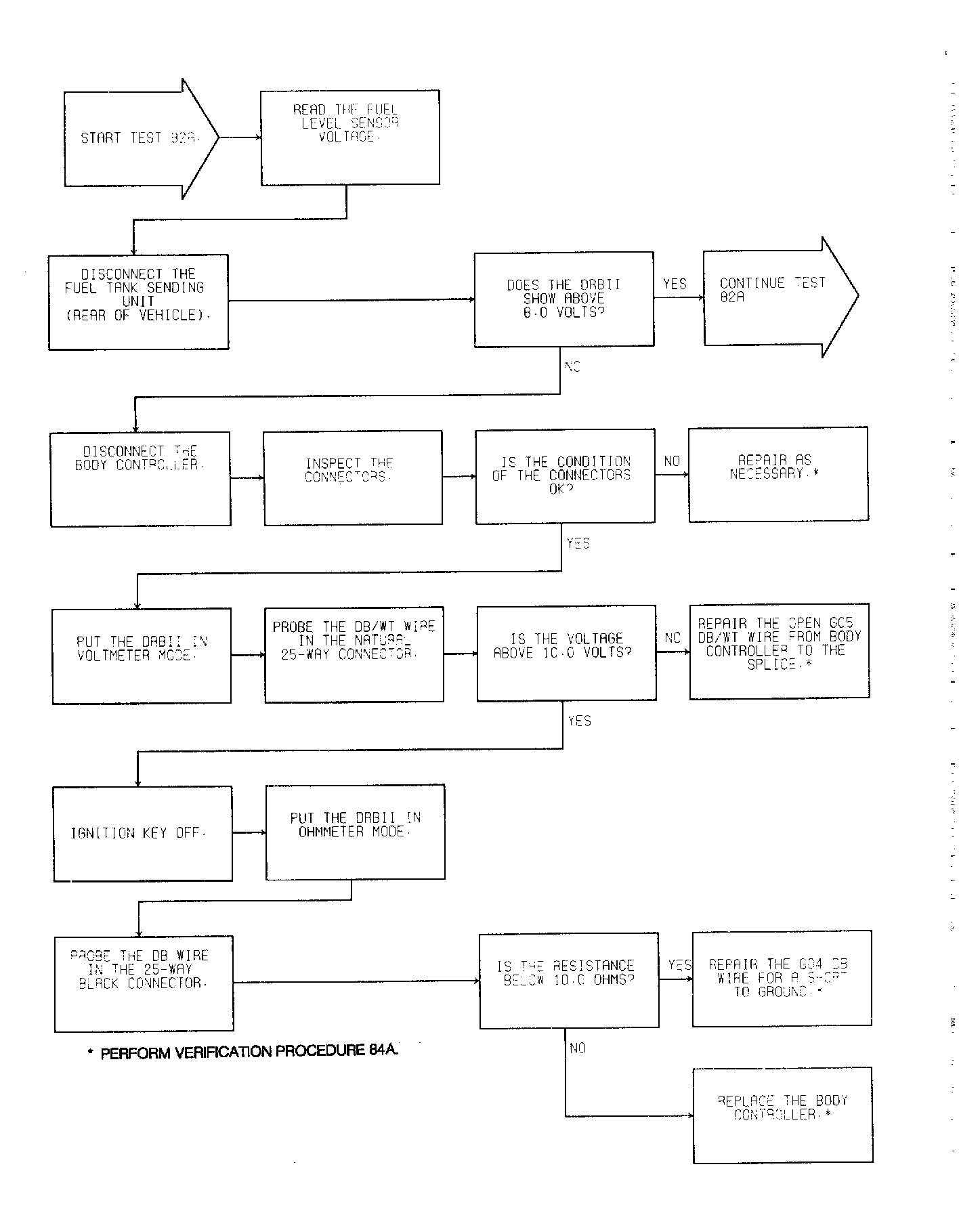

Fig 2: Test 82A: Repairing Faulty Fuel Level (1 of 2)

G91E11597

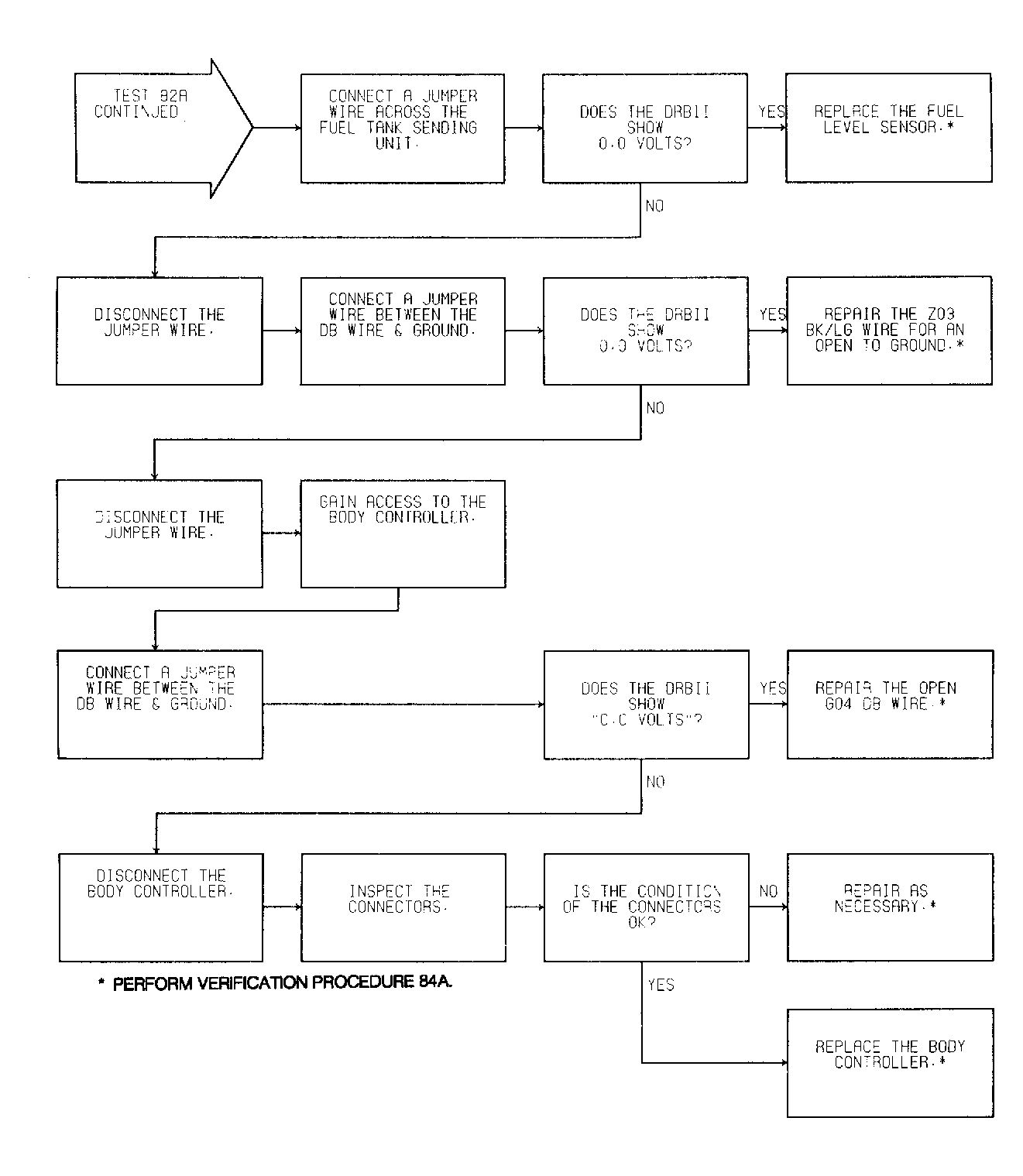

Fig 3: Test 82A: Repairing Faulty Fuel Level (2 of 2)

G91F11598
