Test 52A: Blank DRB-II Message Screen
Test 52A: Blank DRB-II Message Screen

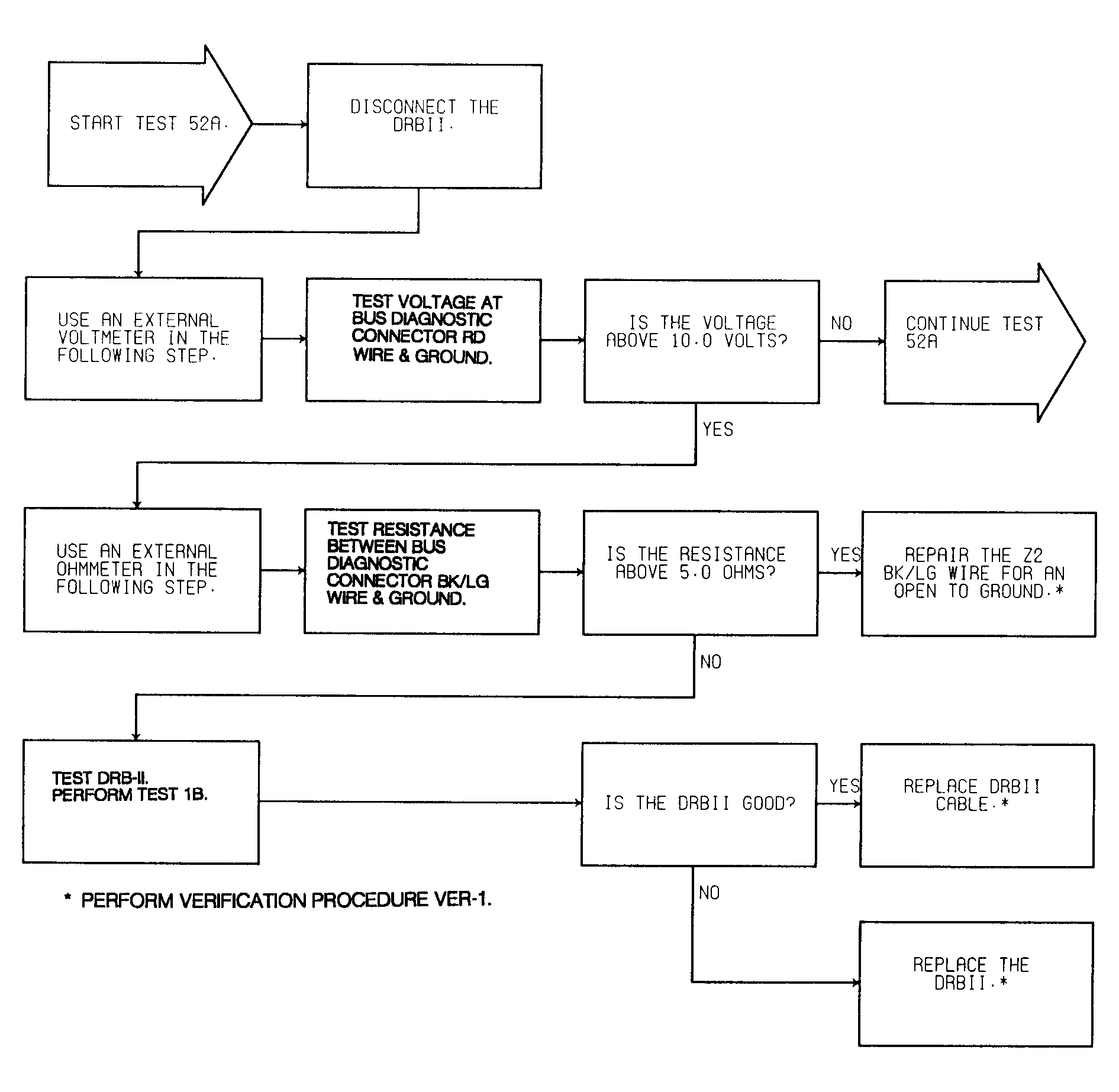

Fig 1: Test 52A: Blank DRB-II Message Screen (1 of 2)

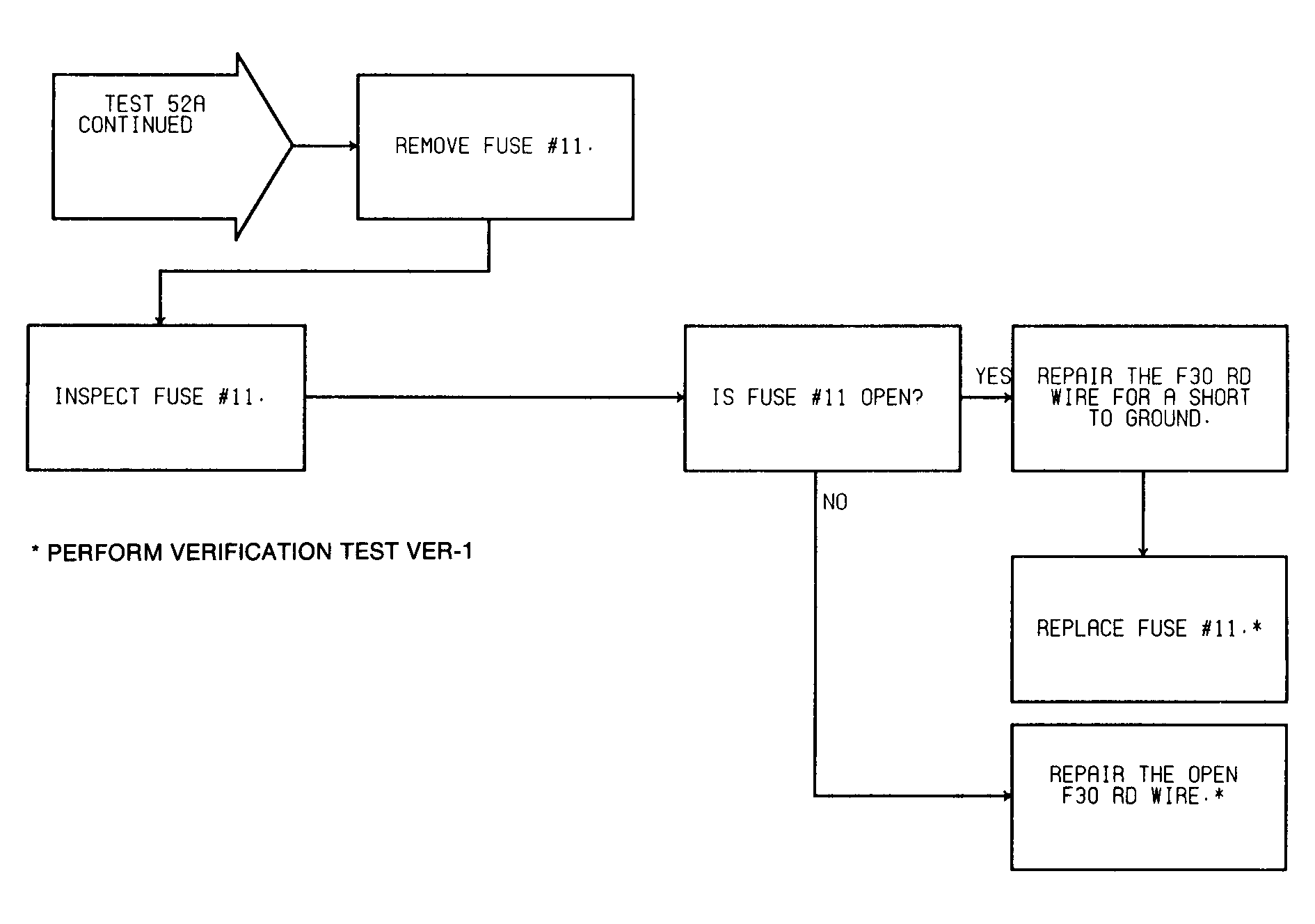

Fig 2: Test 52A: Blank DRB-II Message Screen (2 of 2)
