Test 39A: Repairing Brake Warning Light Problem

Fig 1: Test 39A: Circuit Diagram

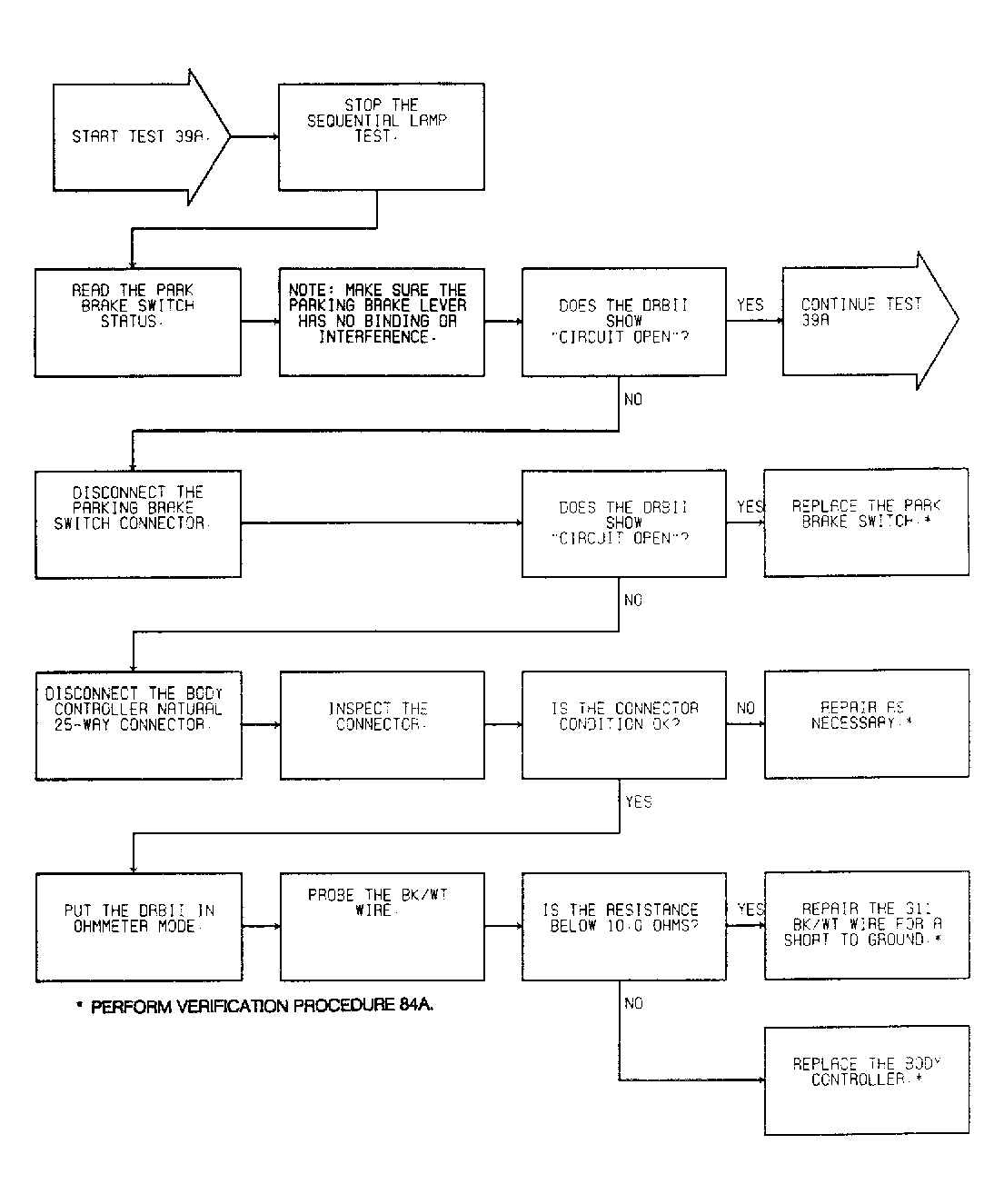

Fig 2: Test 39A: Repairing Brake Warning Light Problem (1 of 2)

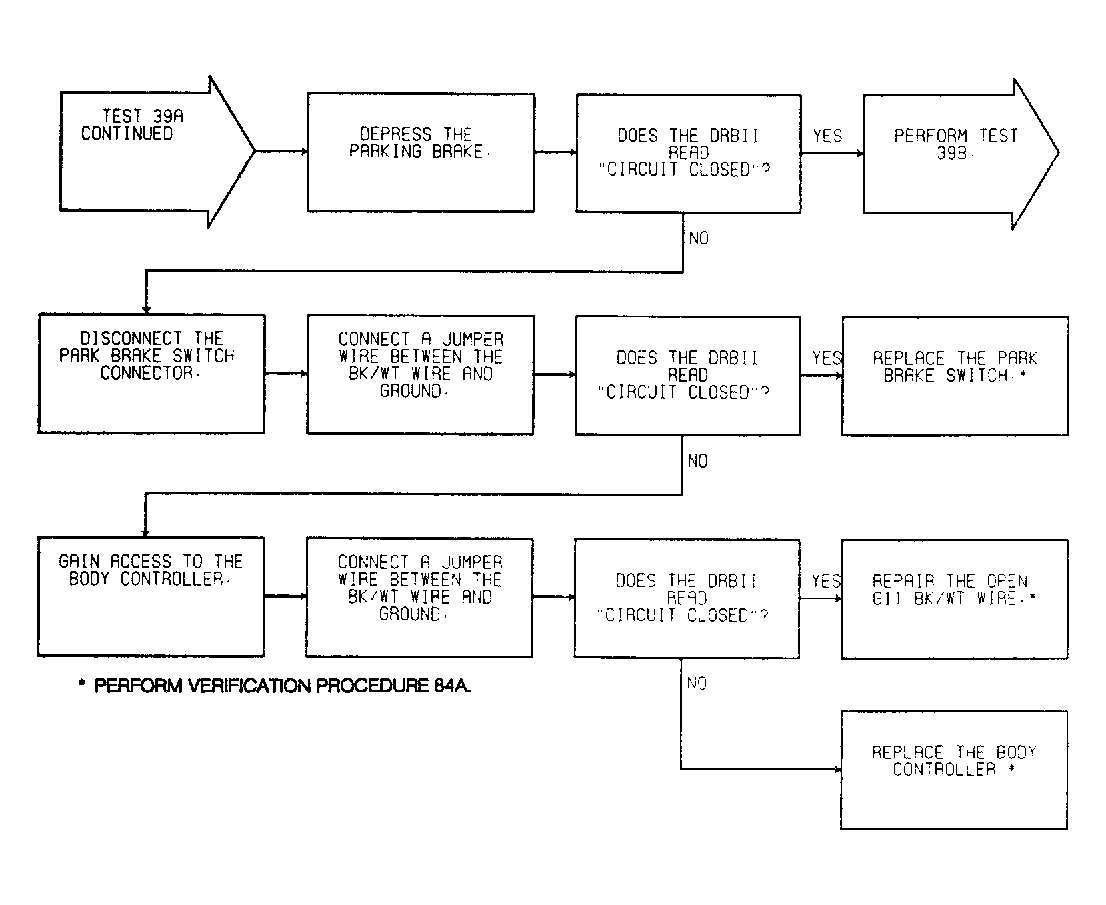

Fig 3: Test 39A: Repairing Brake Warning Light Problem (2 of 2)
