Test 10A: LR Wheel Speed Sensor Fault

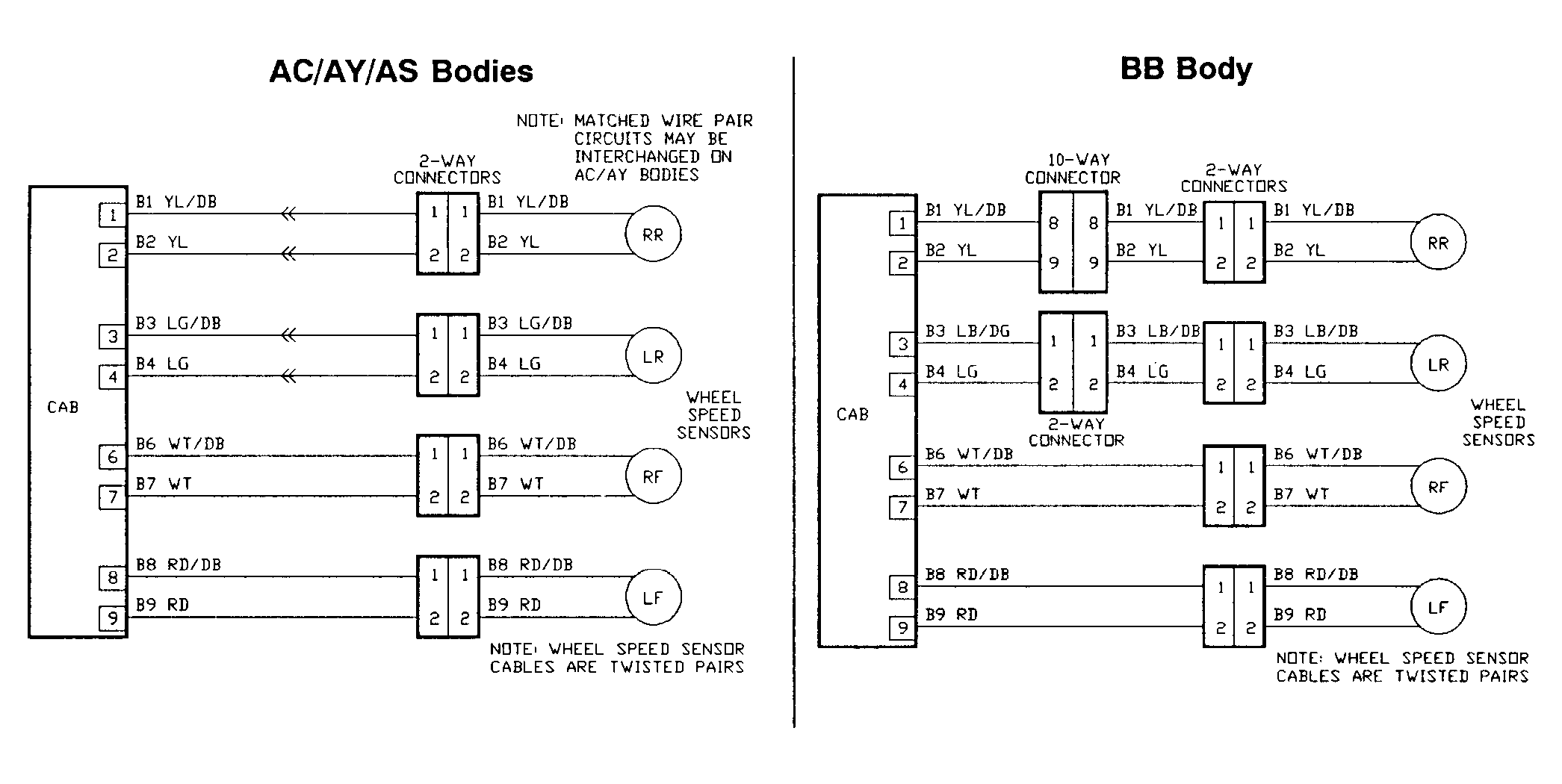

Fig 1: Test 10A - LR Wheel Speed Sensor Fault, Schematic

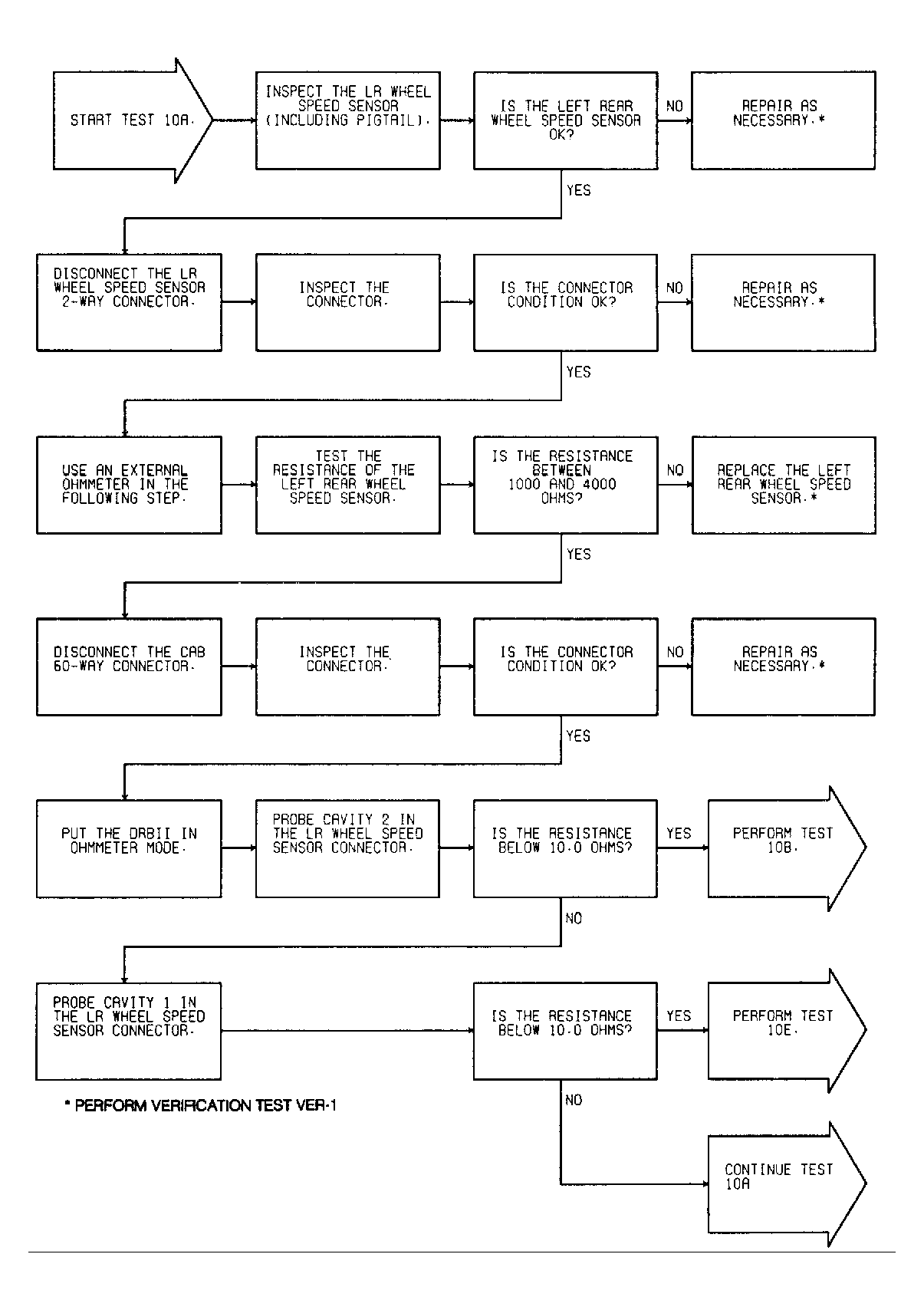

Fig 2: Test 10A - LR Wheel Speed Sensor Fault, Flow Chart

Fig 3: Test 10A - LR Wheel Speed Sensor Fault, Flow Chart
