Test 8B: Boost Pressure Fault

Fig 1: Test 8B - Boost Pressure Fault, Schematic

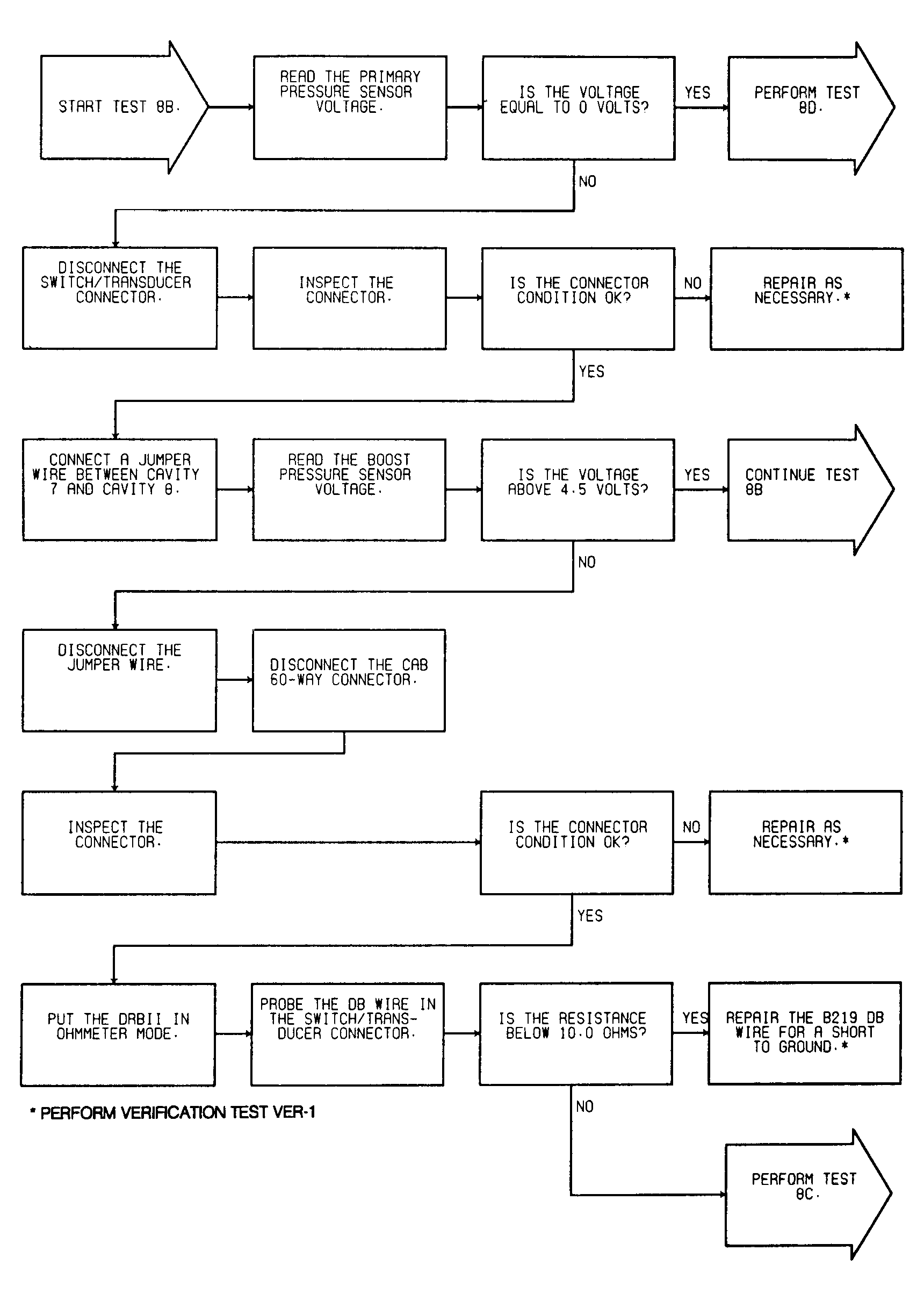

Fig 2: Test 8B - Boost Pressure Fault, Flow Chart

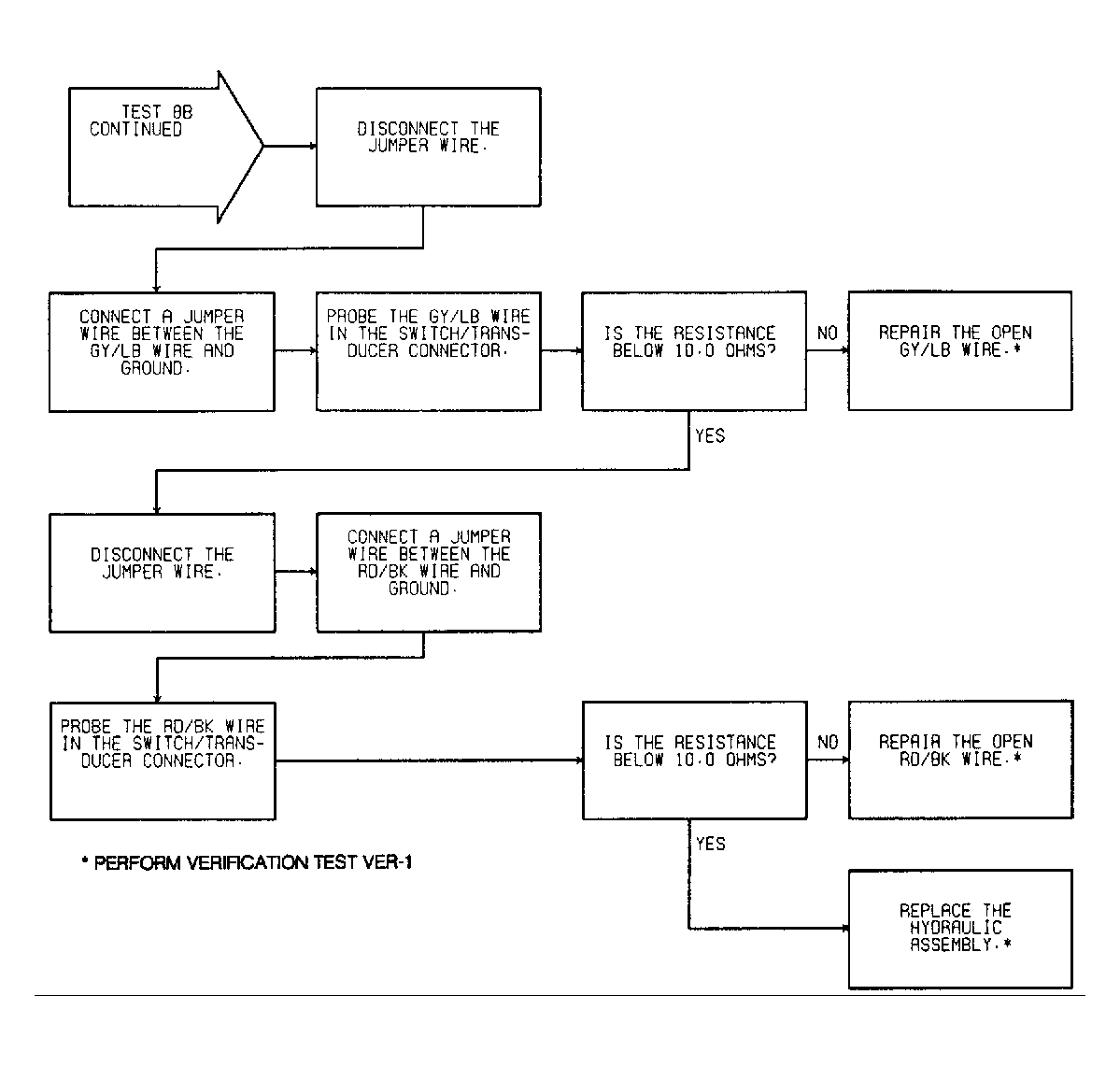

Fig 3: Test 8B - Boost Pressure Fault, Flow Chart

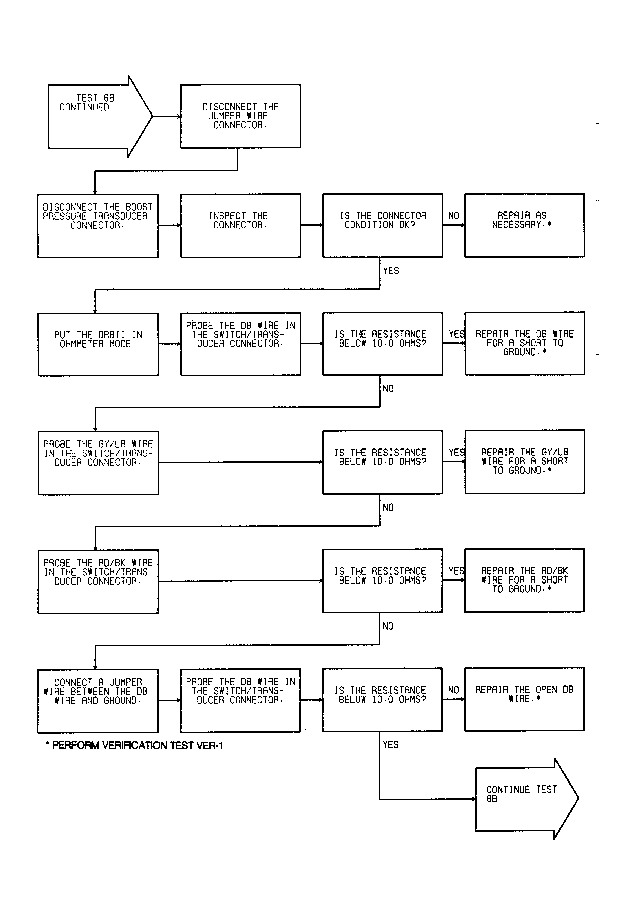

Fig 4: Test 8B - Boost Pressure Fault, Flow Chart
