Wiring Diagrams

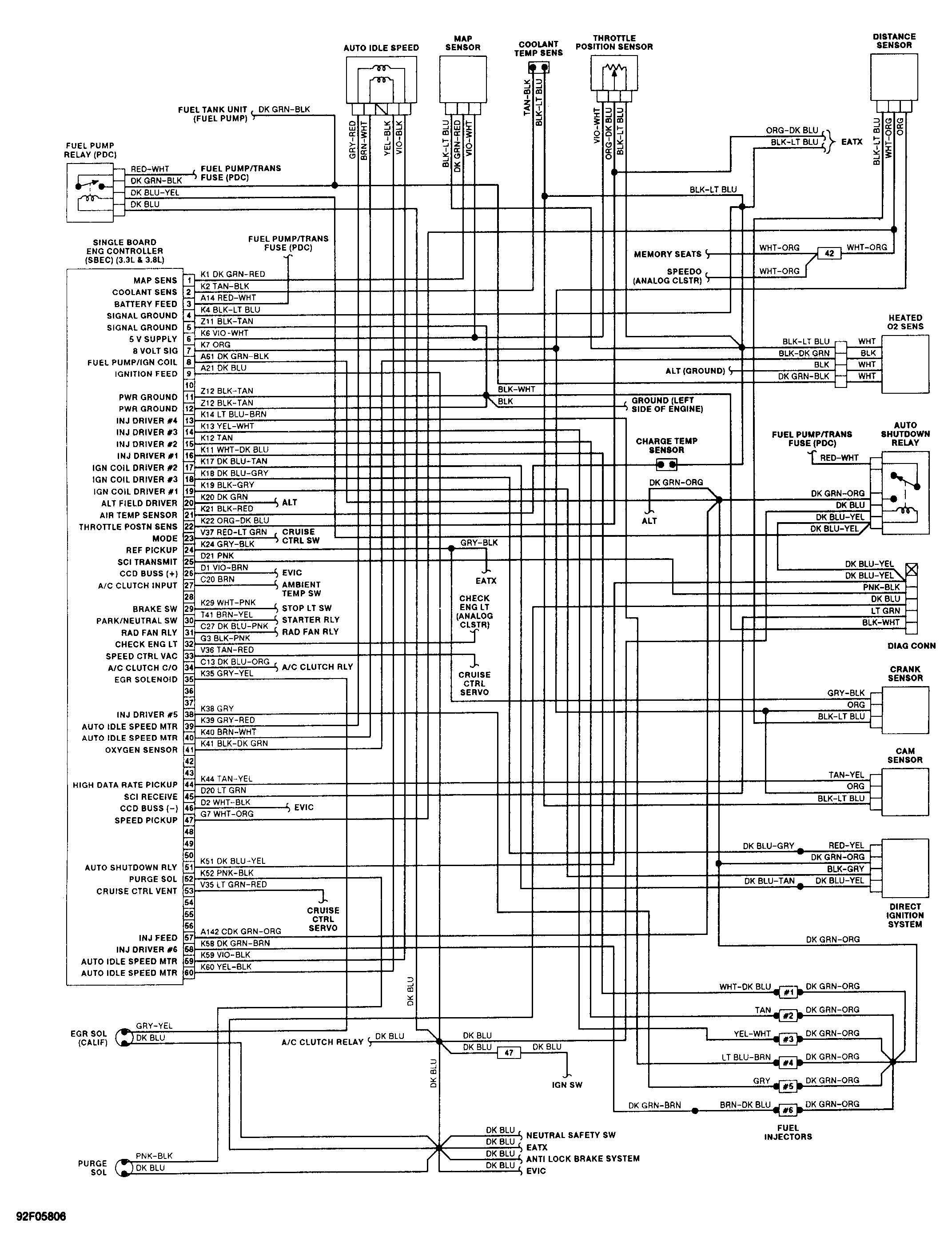

Fig 1: Wiring Diagram (Dynasty - 3.3L PFI)
G92F05806
Fig 2: Wiring Diagram (Except Dynasty)
G92F05806
