Power Mirror Switch Test

Remove power mirror switch from its mounting position. Disconnect switch from wiring harness. In case of memory mirrors (Green 8-pin mirror switch connector and memory switch in driver's door panel), wiring disconnects from cowl top harness rather than mirror harness.

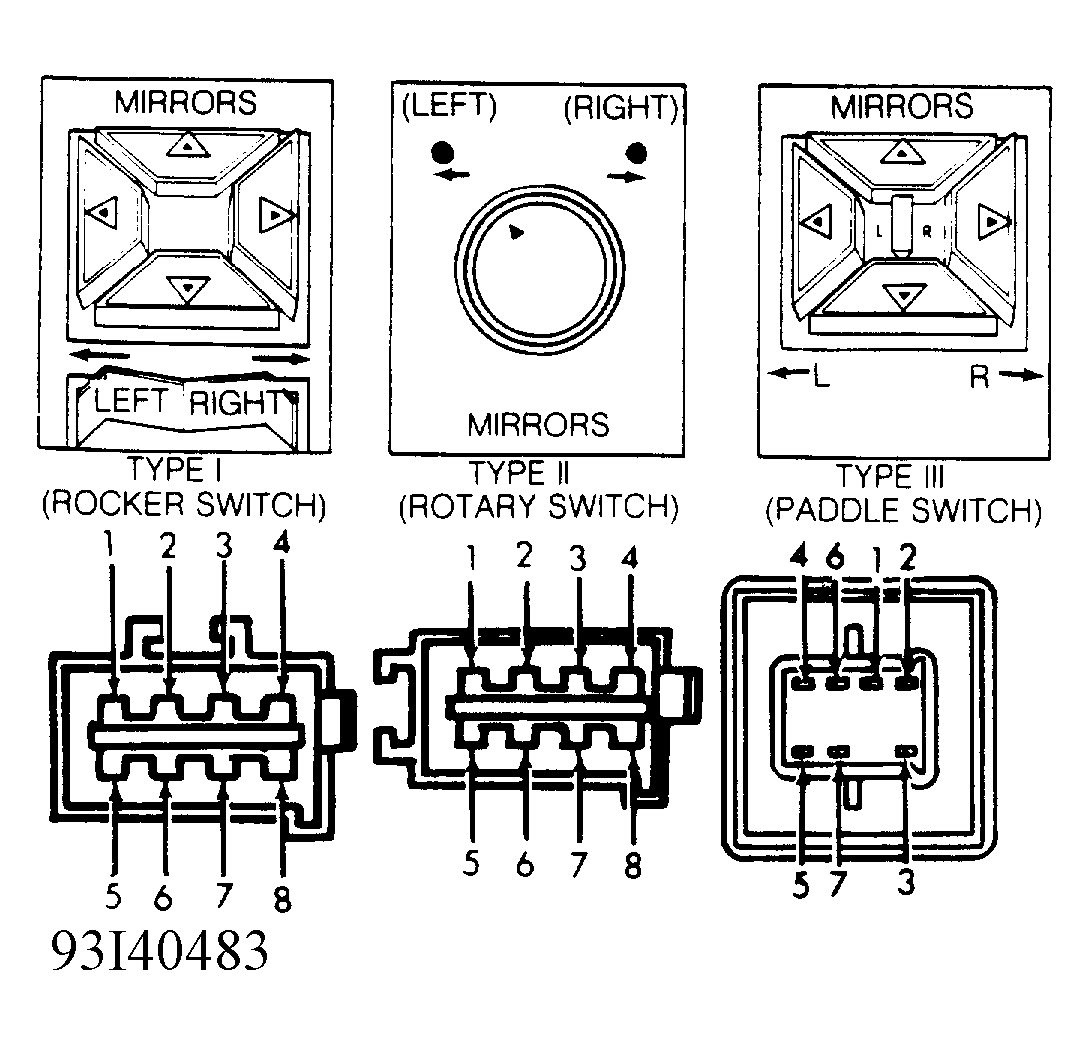

Place mirror selector in appropriate position. See appropriate POWER MIRROR SWITCH CONTINUITY SPECIFICATIONS table. Check for continuity between specified switch pins with mirror in position indicated. See Figure . If continuity is not as specified, replace switch.
