Traveler Module: Wiring Diagram

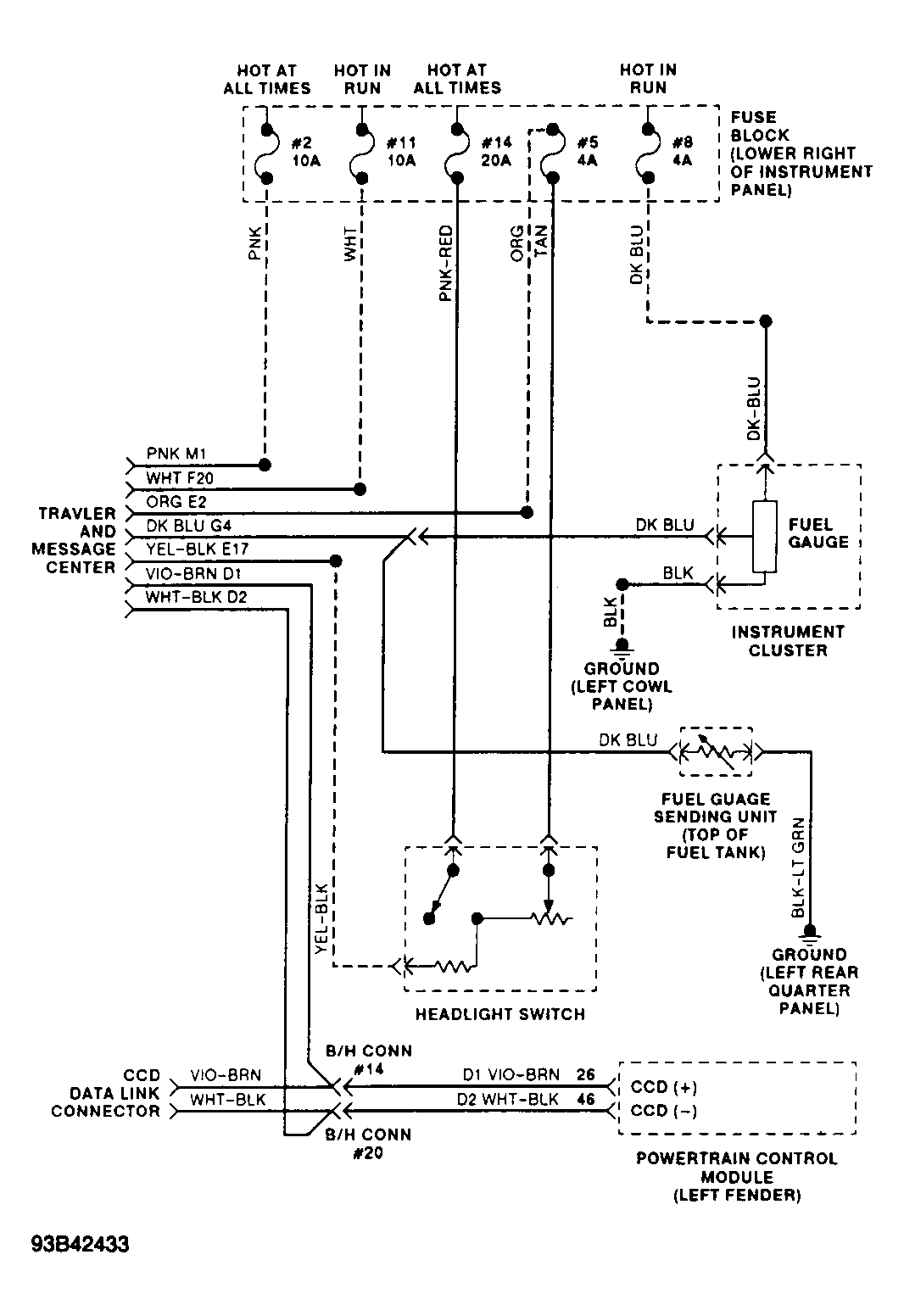

Fig 1: Traveler Module System Wiring Diagram (AA Body)

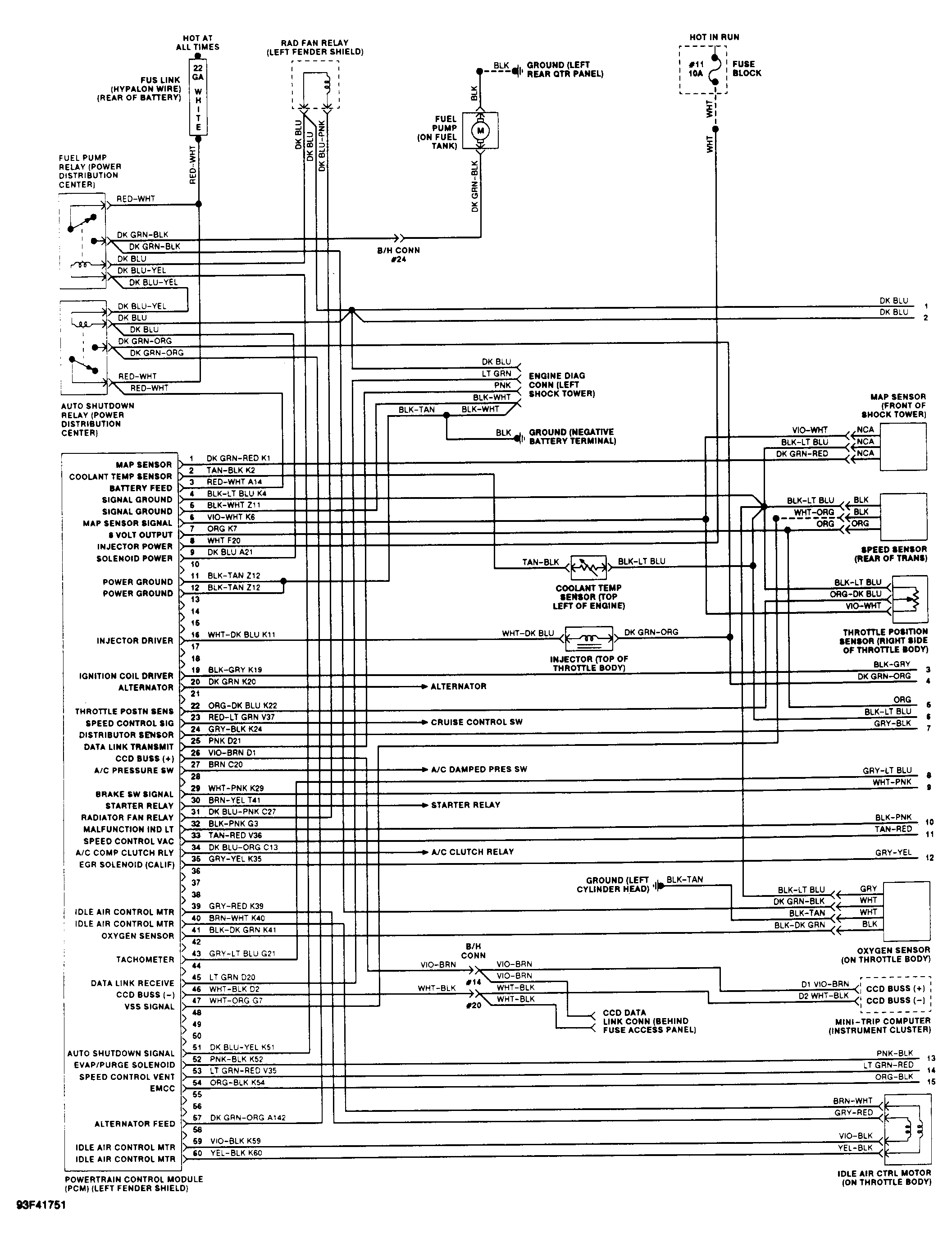

Fig 2: PCM Wiring Diagram - 1 Of 2 (2.5L TBI)

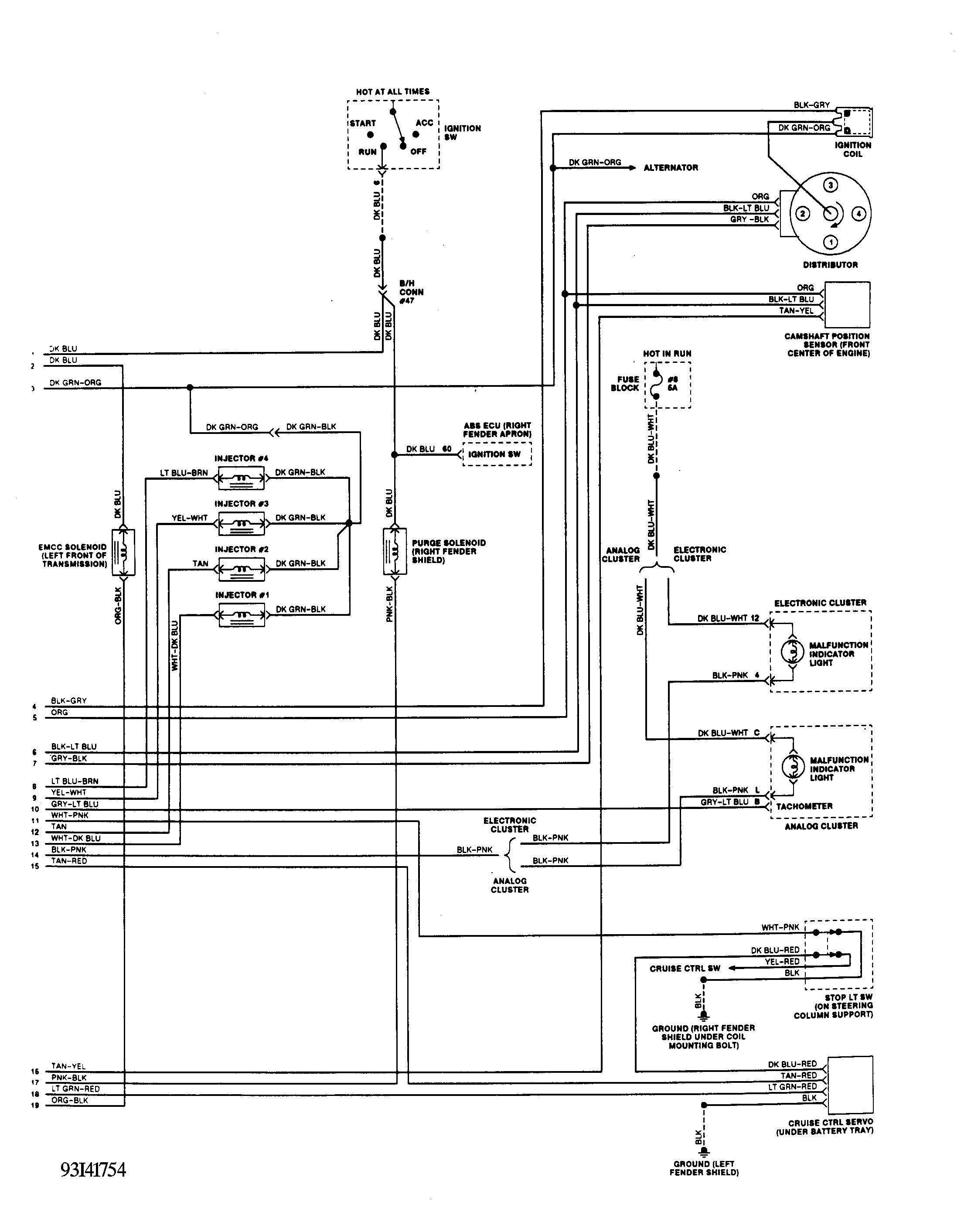

Fig 3: PCM Wiring Diagram - 2 Of 2 (2.5L TBI)

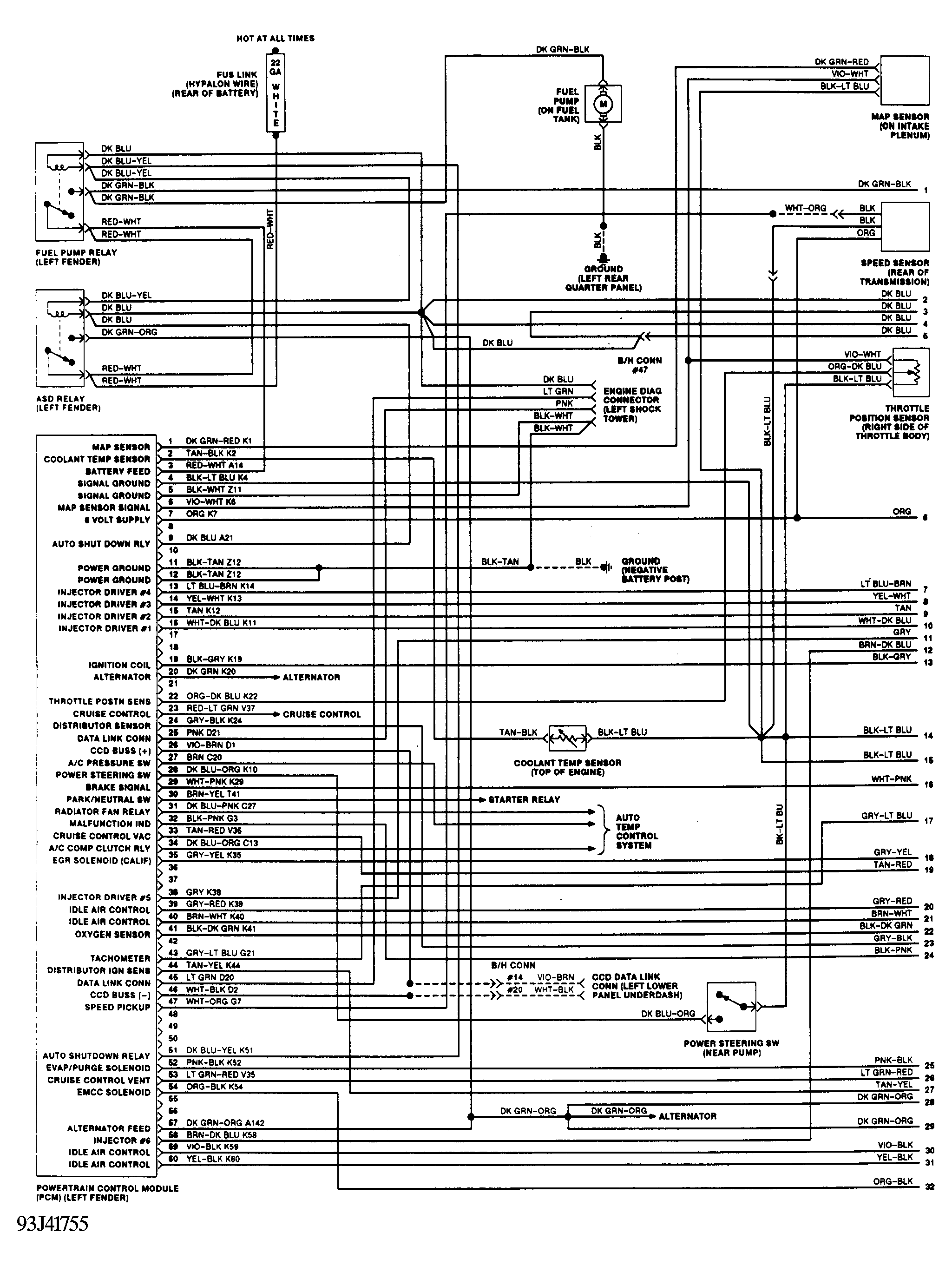

Fig 4: PCM Wiring Diagram - 1 Of 2 (2.5L Flexible Fuel)

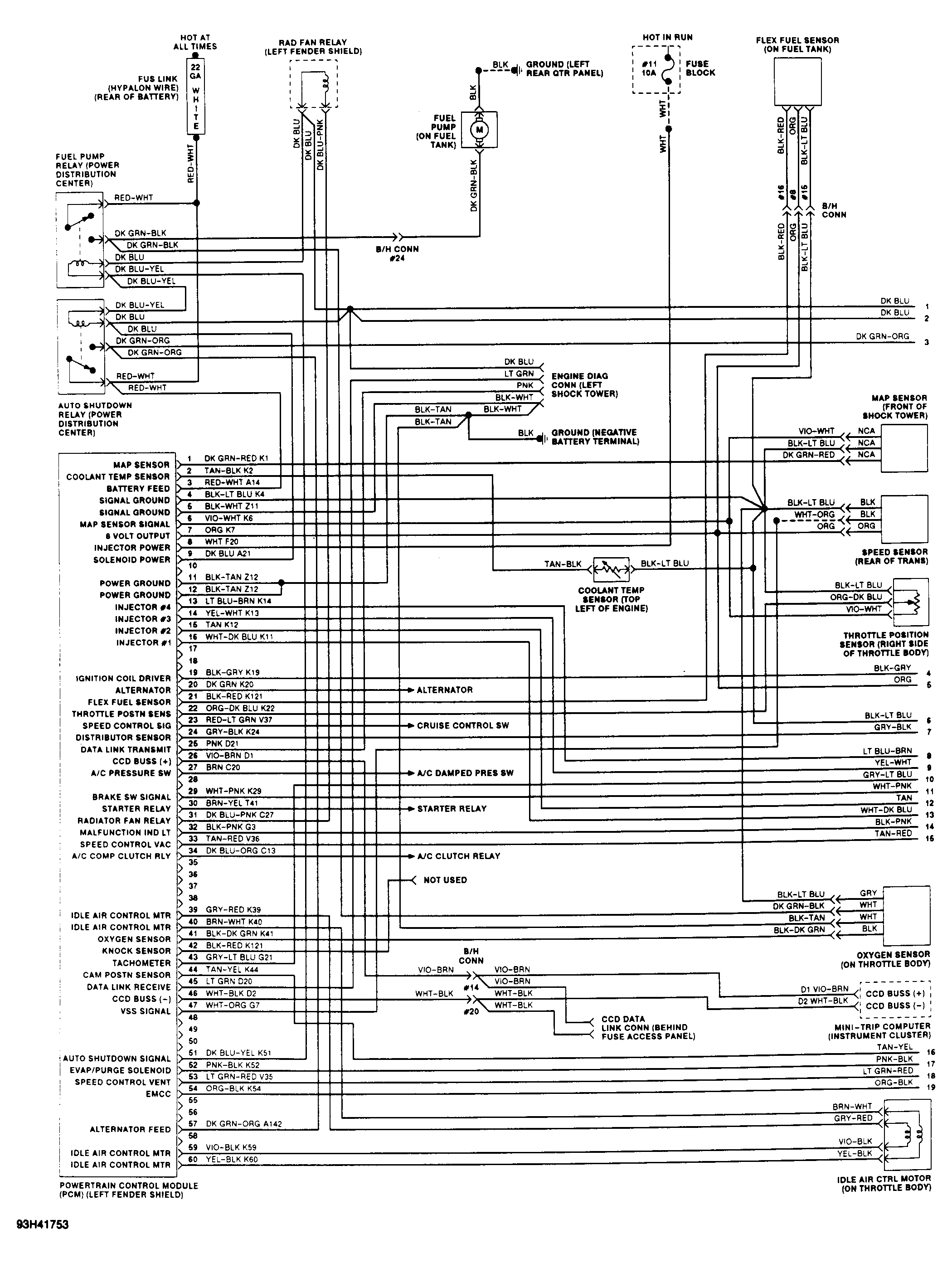

Fig 5: PCM Wiring Diagram - 2 Of 2 (2.5L Flexible Fuel)

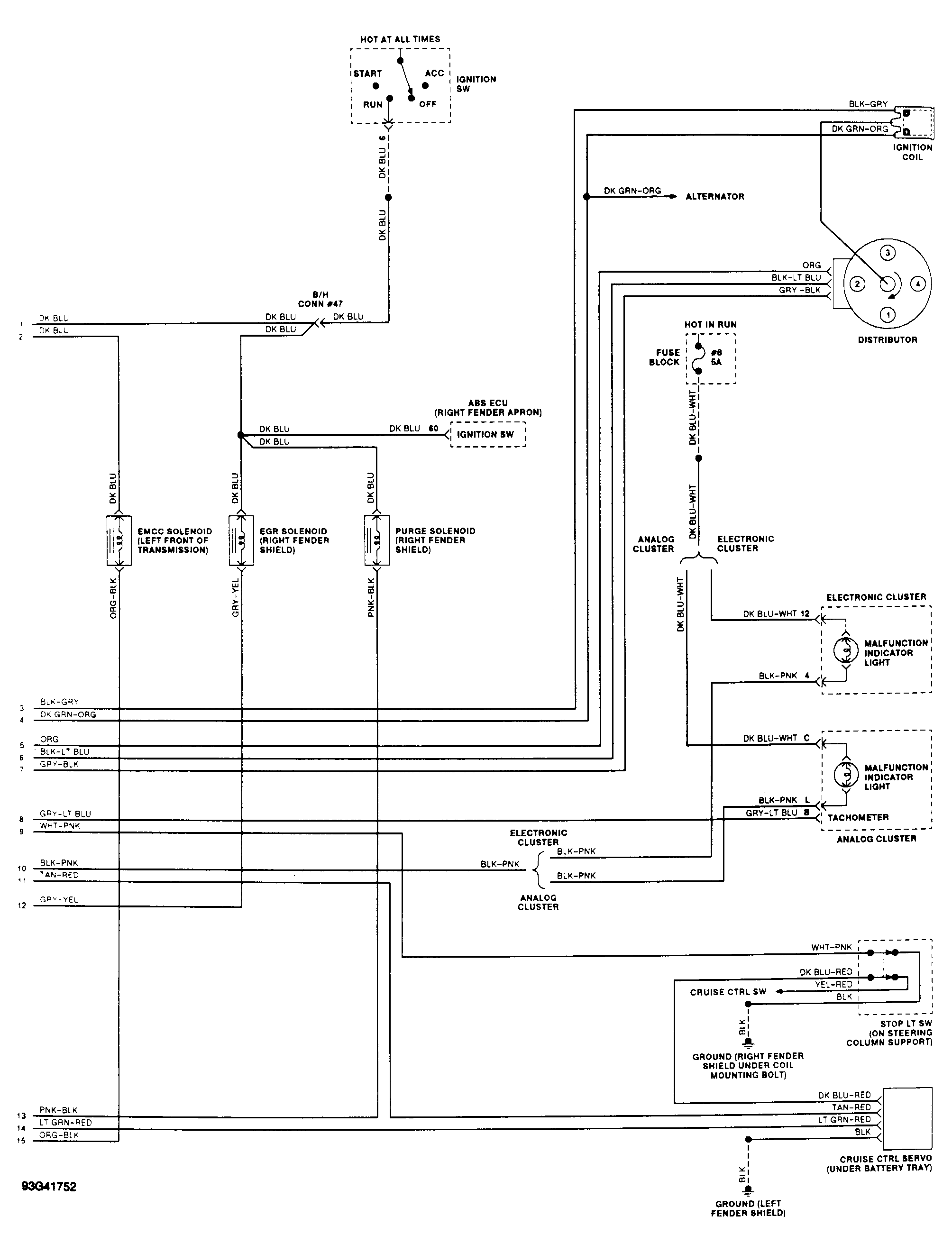

Fig 6: PCM Wiring Diagram - 1 Of 2 (3.0L PFI)

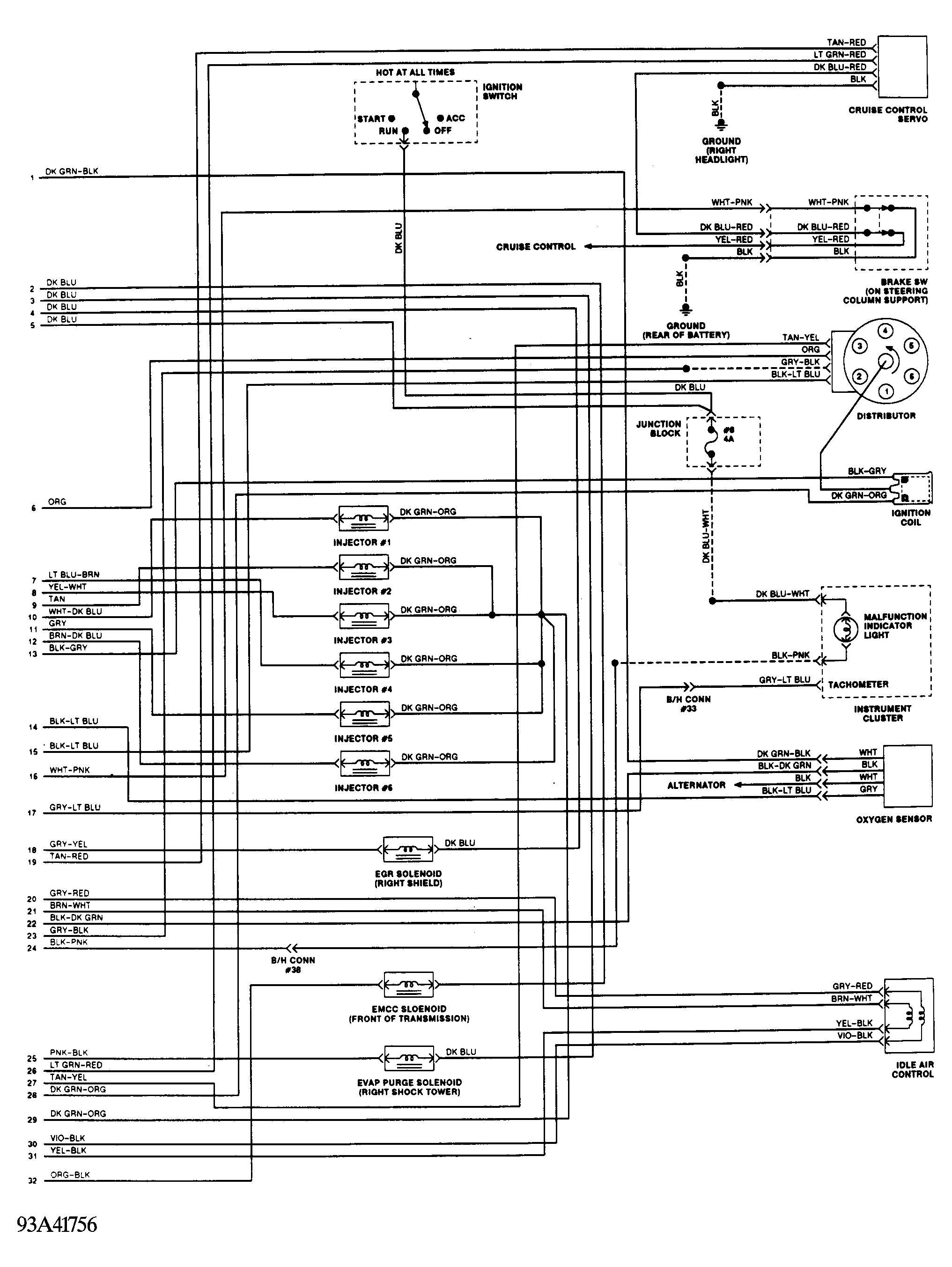

Fig 7: PCM Wiring Diagram - 2 Of 2 (3.0L PFI)
