Removal & Installation

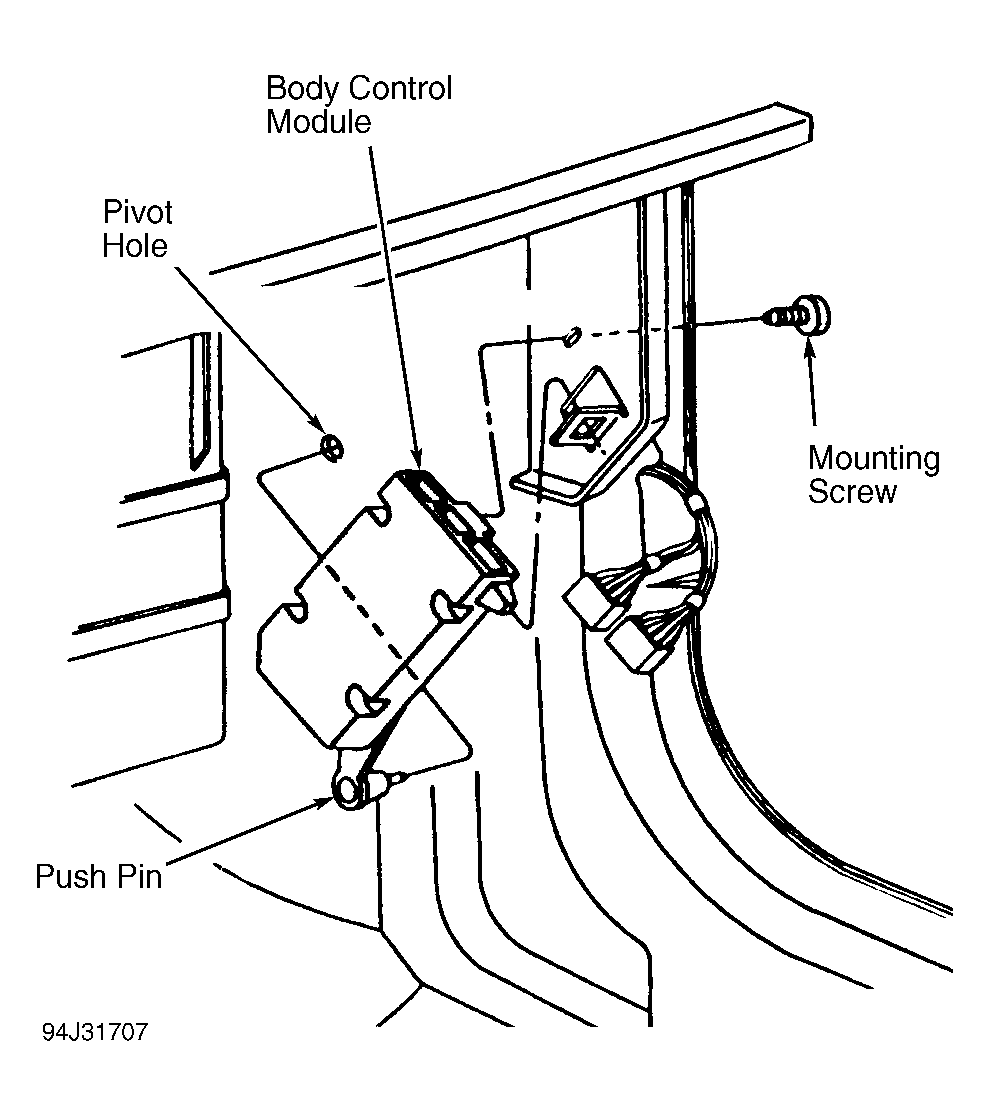

- Body Control Module (BCM) is located behind right side kick panel. See Fig 1 . Open right front door. Pry off right dash end trim cap. Remove right side kick panel trim. Pull back carpet. Cut dash liner along perforations. Pull back dash liner.
- Remove mounting screw and push-pin. Ensure ignition switch is in OFF position. Disconnect BCM connectors. Remove BCM. To install, reverse removal procedure.
