With Infinity System

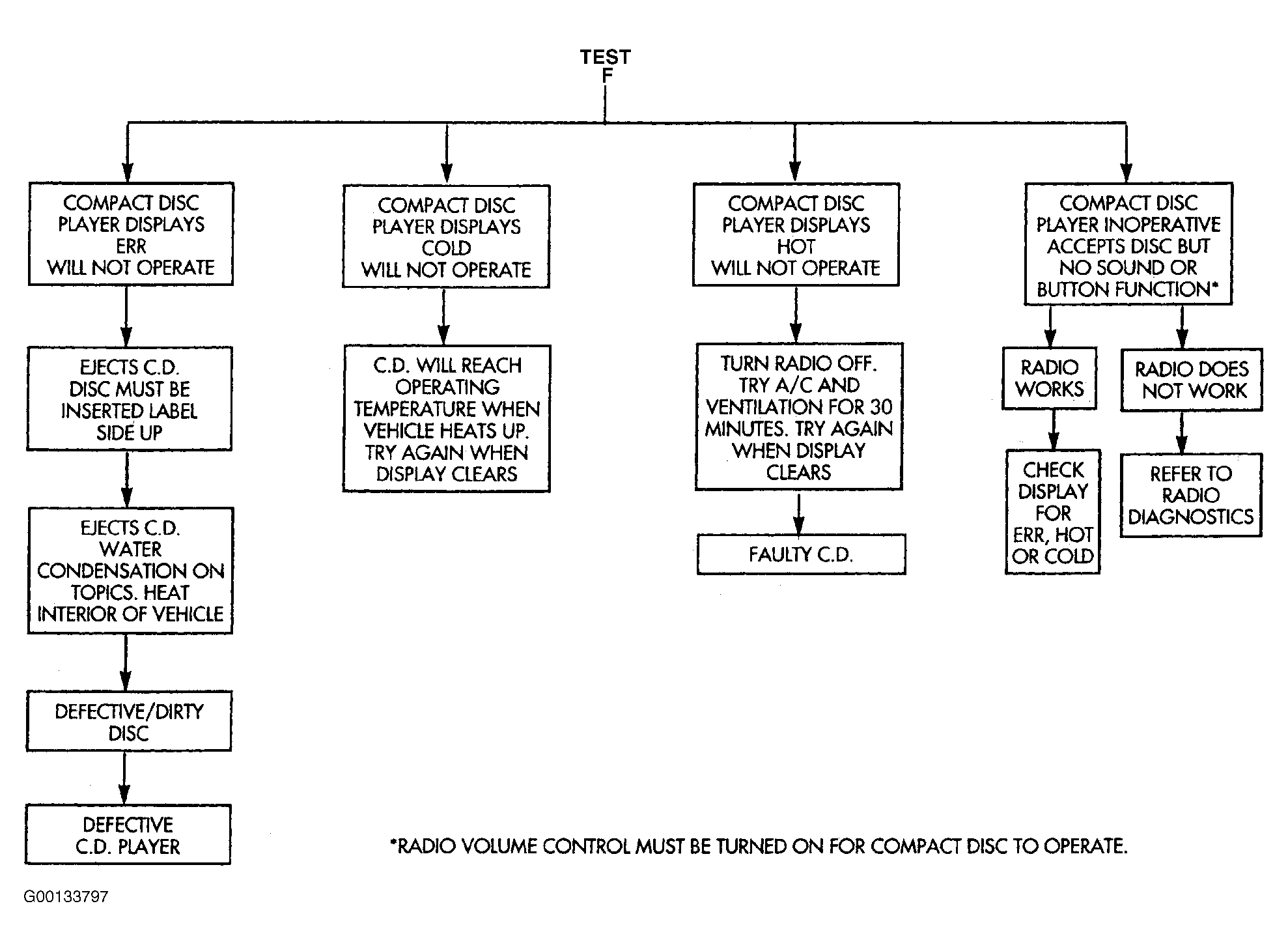

Fig 1: Test F: CD Inoperative Diagnostic Flow Chart (Infinity)
G00133797Courtesy of CHRYSLER CORP.
