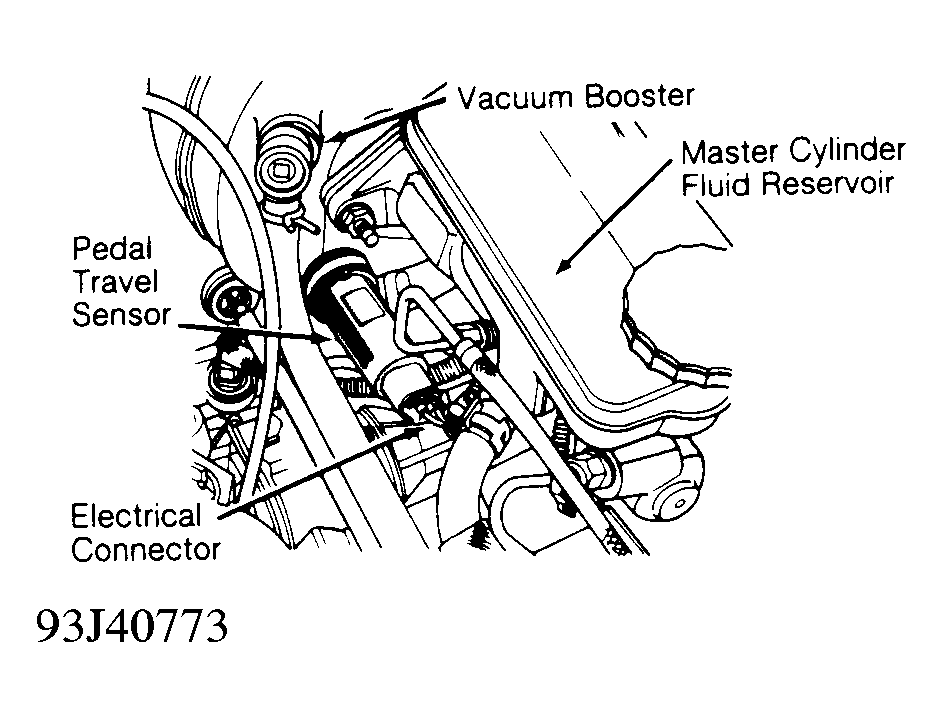

Pedal Travel Sensor: Installation
Install PTS snap ring on booster bushing. Lightly lubricate "O" ring with clean brake fluid. Install "O" ring in bushing groove. Lightly lubricate PTS with clean brake fluid. Install PTS until it locks in bushing. Reconnect connector. Road test vehicle to ensure proper operation of PTS and booster.
