Wiring Diagrams

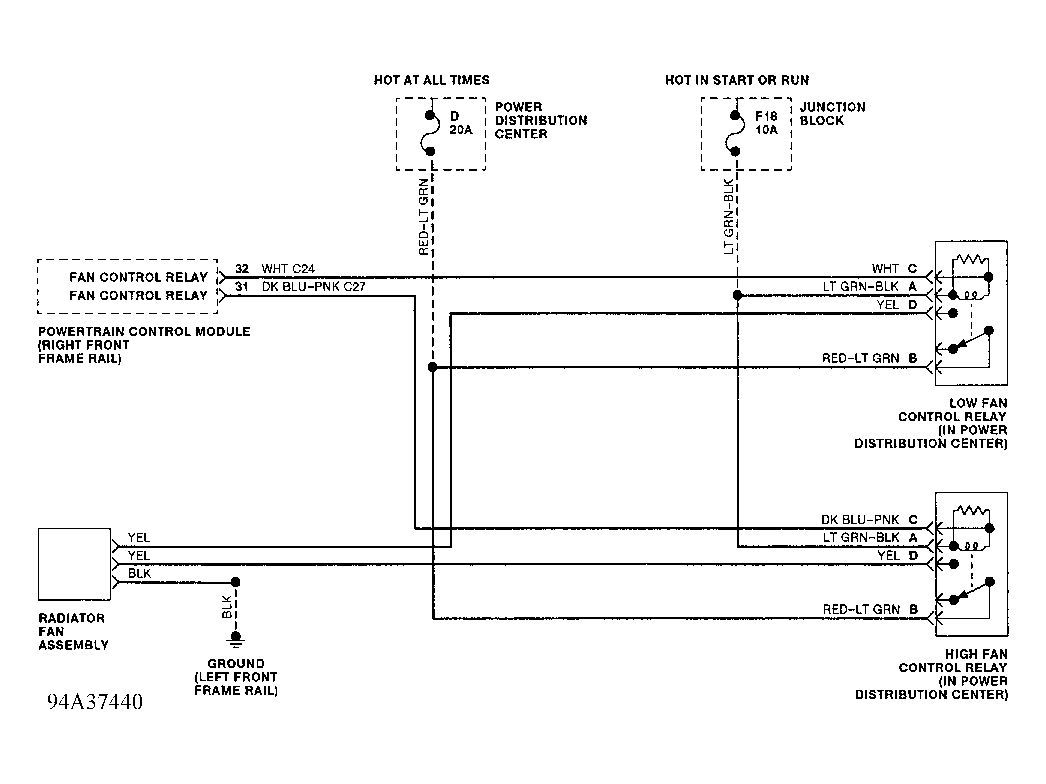

Fig 1: Wiring Diagram (Acclaim, LeBaron Sedan & Spirit)

Courtesy of CHRYSLER CORP.

Fig 2: Wiring Diagram (Concorde, Intrepid, LHS, New Yorker & Vision)

Courtesy of CHRYSLER CORP.

Fig 3: Wiring Diagram (LeBaron Convertible)

Courtesy of CHRYSLER CORP.

Fig 4: Wiring Diagram (Shadow & Sundance)

Courtesy of CHRYSLER CORP.
