Motor Does Not Continue To Park Position

WARNING: This page is about a different car, the 1994 Plymouth Sundance and 1994 Dodge Shadow. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect motor wiring harness, and clean terminals. If problem persists, turn switch to OFF position. With motor harness disconnected, check for voltage between ground strap and terminal No. 2 of wiring connector.
  2. If voltage does not exist, check for open in wiring harness or switch. If voltage exists, check for continuity between terminals No. 1 and No. 3. See Fig 1 . If continuity exists, replace motor. If continuity does not exist, repair open in switch or harness.

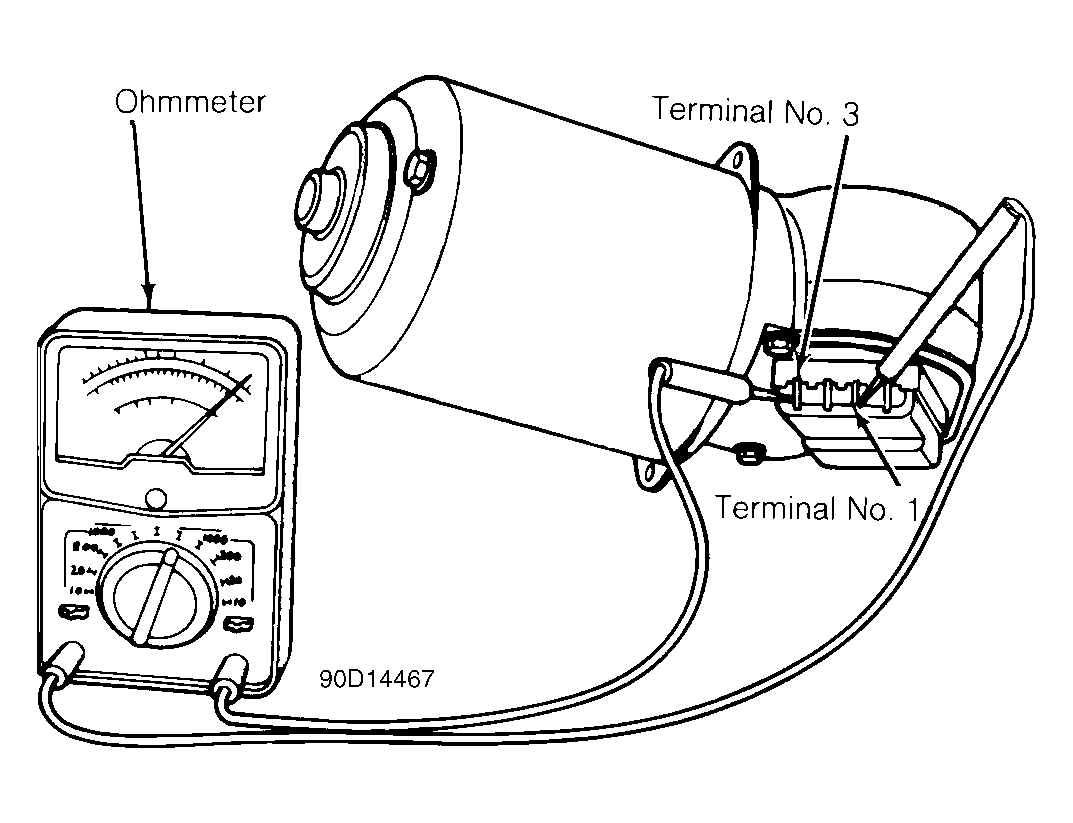

Fig 1: Checking Resistance Between Terminals No. 1 & No. 3
G90D14467Courtesy of CHRYSLER CORP.
