Test 7J - Bus Short To Battery

NOTE: For connector terminal identification, see CONNECTOR IDENTIFICATION . For wiring diagrams, see article in ENGINE PERFORMANCE:

WIRING DIAGRAMS - 2.0L & 2.4L

After each repair, perform TEST VER-1.

Using scan tool in ohmmeter mode, check resistance of junction block internal 12-pin connector terminal No. 10. See Fig 1 . If resistance is more than 5 ohms, repair open ground circuit as necessary. If resistance is less than 5 ohms, replace BCM.

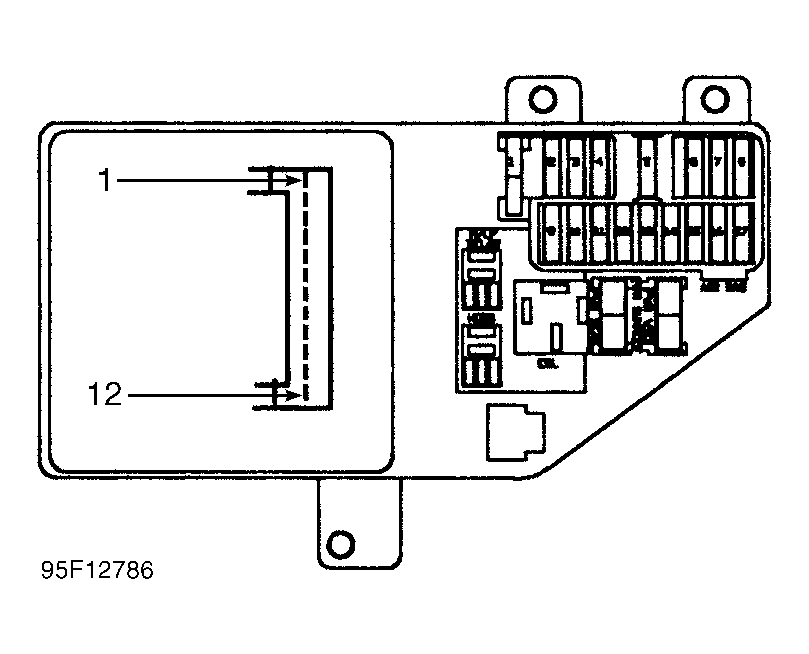

Fig 1: Identifying Junction Block Internal 12-Pin Connector Terminals
