Power Amplifier

Fig 1: Identifying Power Amplifier C356 Connector Pinout (1995)
G00136681Courtesy of CHRYSLER CORP.

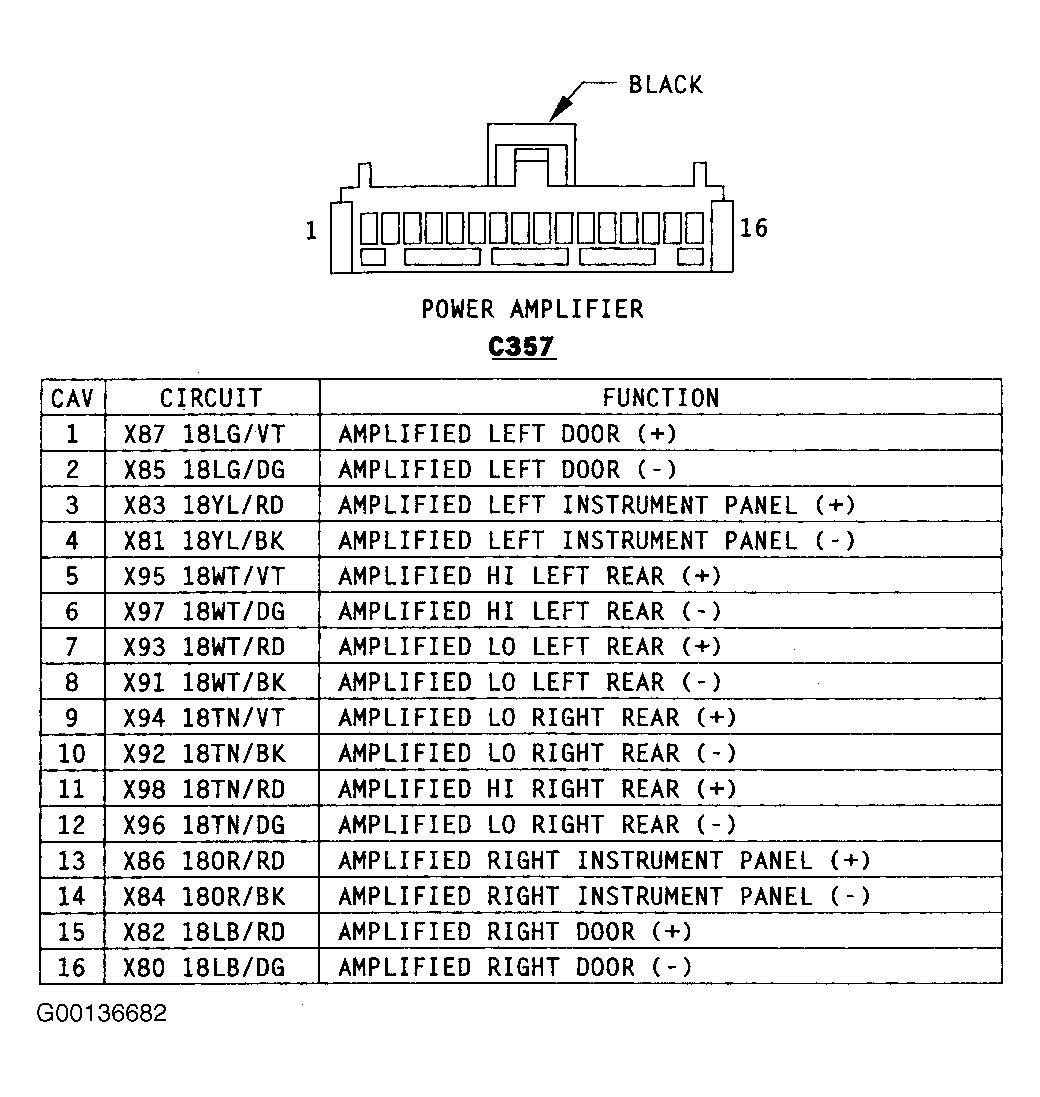

Fig 2: Identifying Power Amplifier C357 Connector Pinout (1995)
G00136682Courtesy of CHRYSLER CORP.

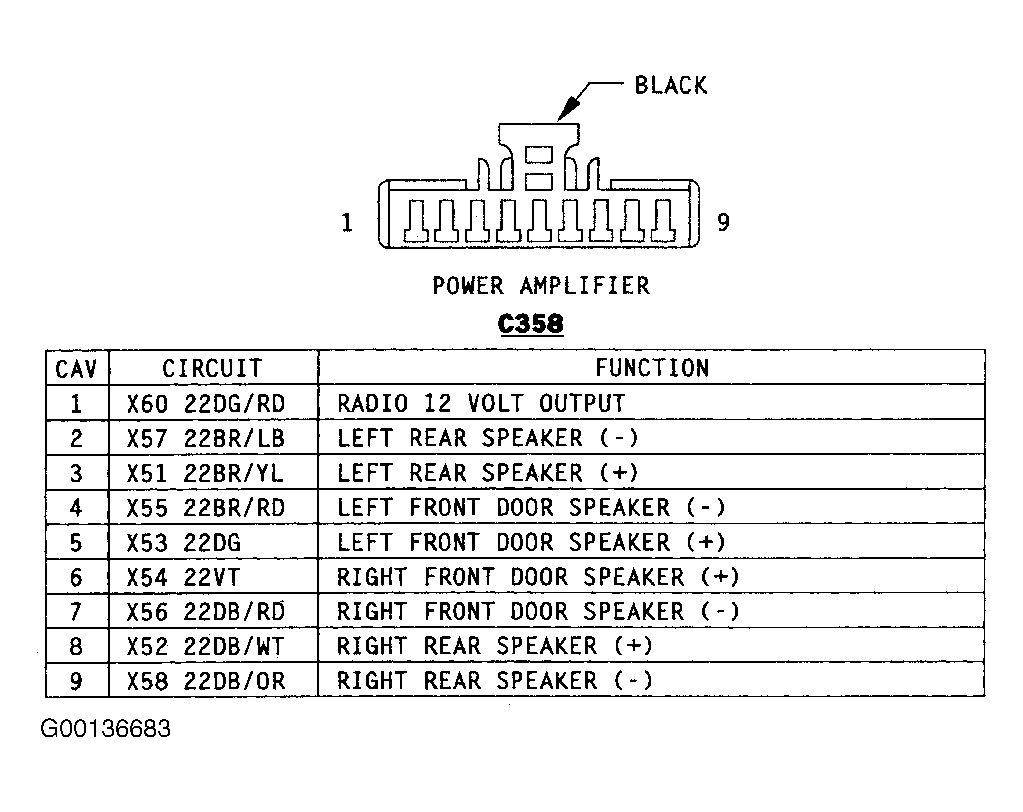

Fig 3: Identifying Power Amplifier C358 Connector Pinout (1995)
G00136683Courtesy of CHRYSLER CORP.
