Infinity Remote Amplifier: Notes

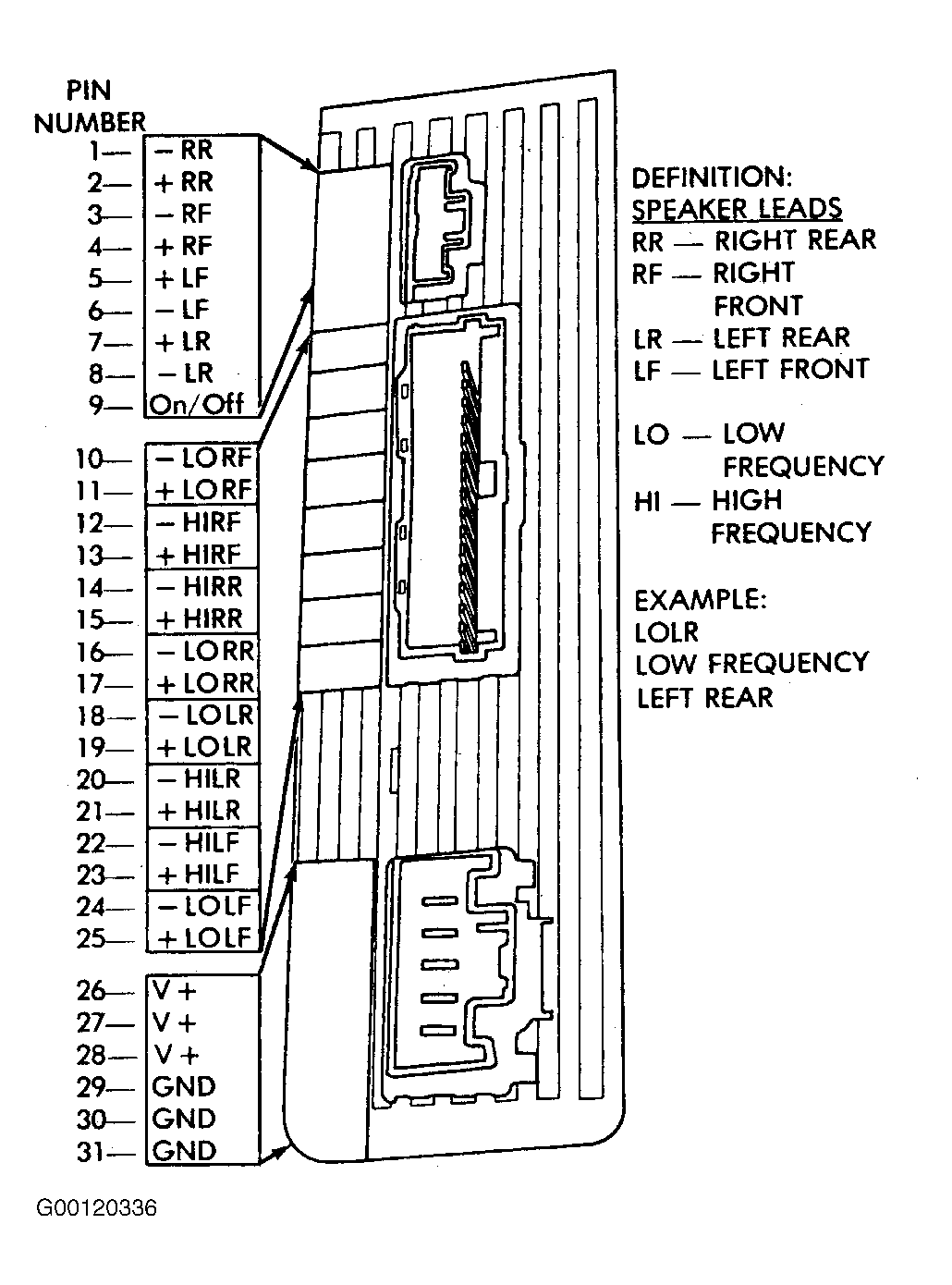

The amplifier on AJ bodies, is located in the trunk on the left wheel housing extension behind the side trim panel. When the radio system is ON, and all or some speakers are not operating or have a noise distortion refer to the COMPACT DISC PLAYER . The amplifier has the terminal connections list on the case. See Fig 1.
