Automatic Temperature Control RECALIBRATION
WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
The Automatic Temperature Control (ATC) system must be recalibrated if the battery is disconnected or loses power. If it is not, the system will not operate properly. To recalibrate the system:

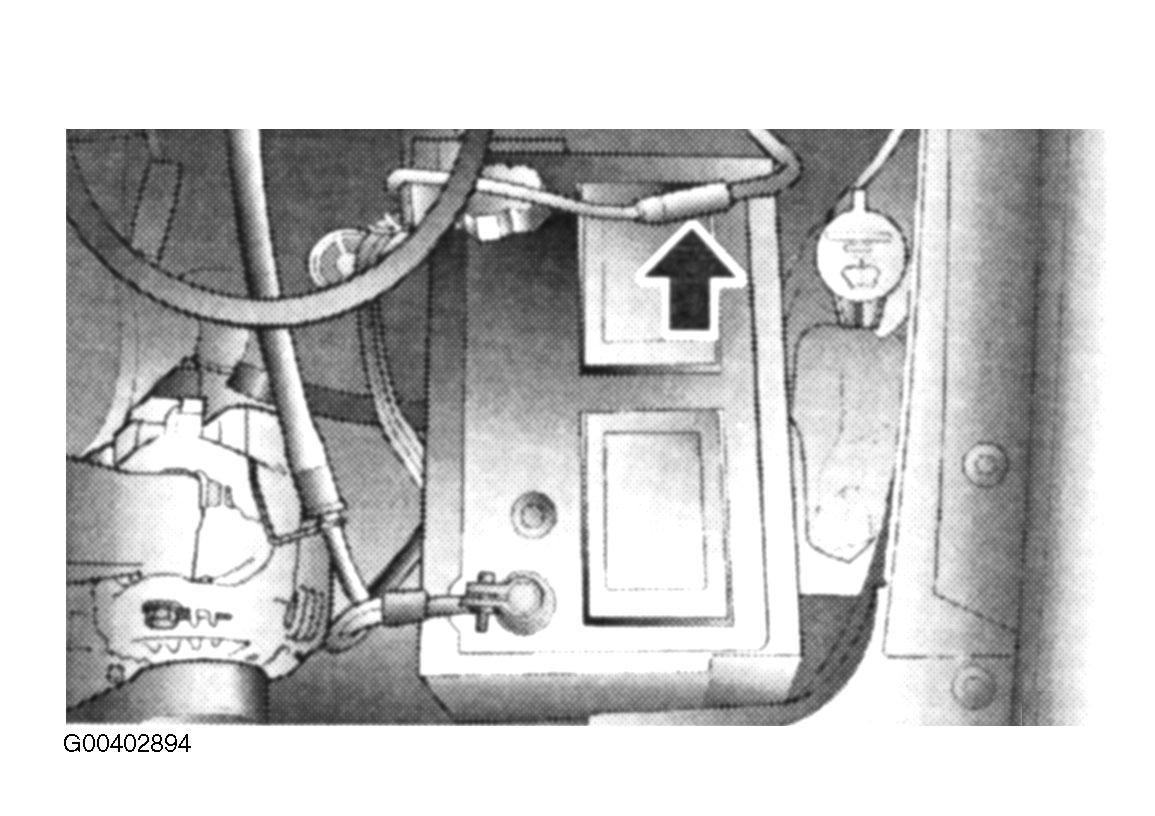

- When the battery power is restored, disconnect the electrical connector near the battery. Leave disconnected for at least 15 minutes. See Fig 1 .
- Reconnect the connector. Start and run the engine for at least one minute. The ATC system is now calibrated
