Mode Controls

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

There are 10 buttons which select air delivery mode: automatic, off, floor, mix, A/C, front defrost, panel (vent), bi-level, recirculated air, and rear defogger.

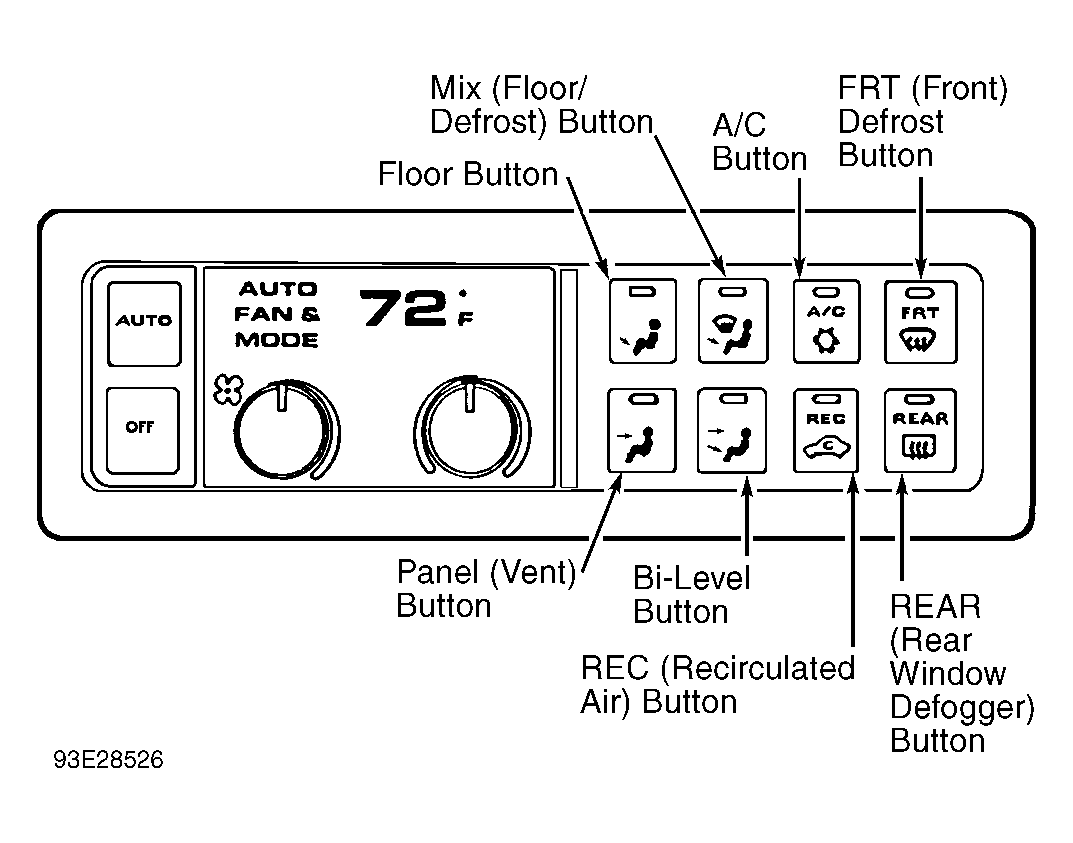

Fig 1: Automatic A/C-Heater System Control Panel ID

Courtesy of CHRYSLER CORP.
